Terminal 2.5 mm spring connection ground TSKC Series
Terminal 2.5 mm spring connection ground TSKC Series

Terminal 2.5 mm spring connection ground TSKC Series

€1.22 Tax included

€1.01 tax excl.

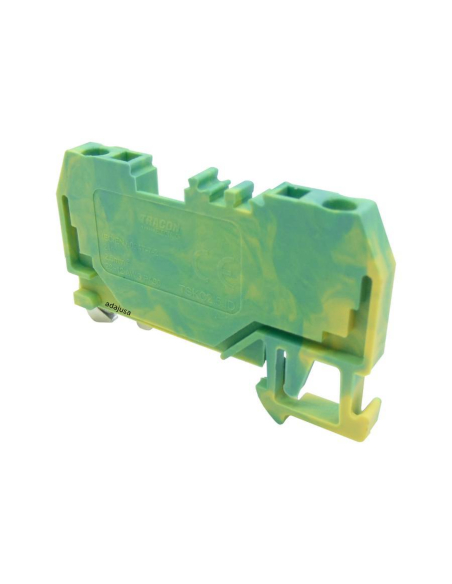

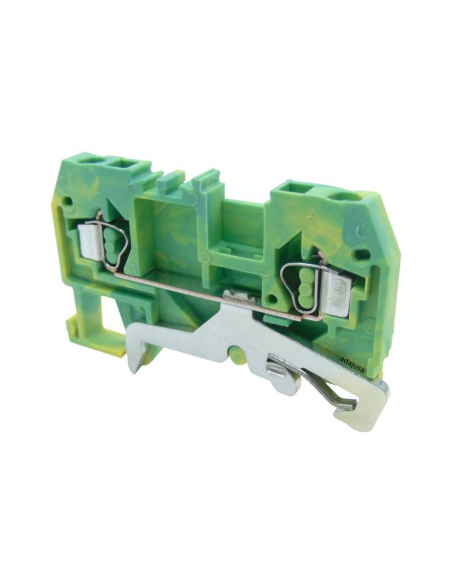

Terminal 2.5mm yellow-green for DIN rail, spring or strap connection. Quick installation and use for general applications.

Part No.: TSKC2,5JD


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Terminal 2.5mm yellow-green electrical connection cable for DIN rail mounting with lateral wiring. Spring or strap connection. Suitable for general applications where high reliability and easy installation are required.

Compact size, housing made of highly heat-resistant, self-extinguishing polyamide plastic (according to UL94-V0).


Technical features:

  • Manufacturer/Supplier: Tracon
  • Ordering Number: TSKC2,5JD
  • Terminal color: Yellow-Green
  • Thin conductor cross-section with ferrule: 0.2 - 2.5mm² (0.2 - 2.5mm²)
  • Solid conductor cross-section: 0.2 - 4mm² (0.2 - 4mm²)
  • Number of connection terminals: 2
  • Connection type: Spring
  • Material: Polyamide
  • Standards: EN 60947-7-1, EN 60947-7-2



W: 5mm, L: 53,5mm, H: 32,5mm



Material for professional use, install in compliance with the regulations in force at the place of installation.
