Straight automatic straight fitting 1/4 pipe 8mm Series 50000 - Aignep

Q: Este modelo es compatible con rosca NPT? Gracias!

Buenos días, Le confirmamos que este modelo no es compatible con rosca NPT , ya que está diseñado exclusivamente con rosca BSP, que es el estándar utilizado en Europa. Las roscas BSP y NPT tienen características diferentes y no son intercambiables sin adaptadores específicos. Quedamos a su disposición para cualquier otra consulta. Atentamente, Adajusa https://adajusa.es

€1.51 Tax included

€1.25 tax excl.

50020814

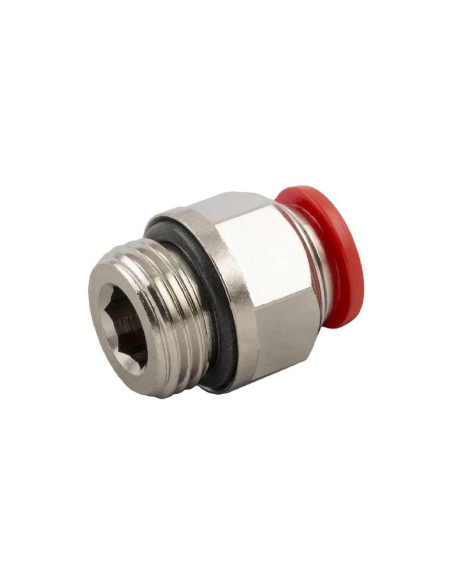

Straight cylindrical male 1/4 thread fitting for 8mm pipe with gasket, made of chrome-plated brass . Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Series: 50000
Reference: 50020 8 1/4

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product

Privacy

Shipments

Returns

Description
Frequently questions

Cylindricalstraight male 1/4 threadfitting for 8mm pipe with gasket, made of chrome-plated brass. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring, clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the fitting from the tube. On the fittings, the ring of the fitting is equipped with a screwdriver's slots to facilitate the disconnection in applications inaccessible to the fingers.

Technical characteristics:

Manufacturer: Aignep.
Part number: 50020 8 1/4
Thread: 1/4
Outer tube diameter: 8mm.
Fluid: Vacuum - Compressed air.
Working pressure: -0,99 bar at 20 bar.
Material: Chrome-plated brass.
Tube extractor ring: acetal resin
Seal of retention: NBR.
Clamping spring: stainless steel.
Working temperature: -20ºC to +80ºC.
Thread standard
- Gas conical according to ISO 7.1, BS 21,DIN 2999
- Gas cylindrical in accordance with ISO 228 Class A
- Metric according to ISO R/262

50020 Esq

50020 Tab

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question

Este modelo es compatible con rosca NPT?

Gracias!

Answer

Buenos días,

Le confirmamos que este modelo no es compatible con rosca NPT, ya que está diseñado exclusivamente con rosca BSP, que es el estándar utilizado en Europa.

Las roscas BSP y NPT tienen características diferentes y no son intercambiables sin adaptadores específicos.

Quedamos a su disposición para cualquier otra consulta.

Atentamente,
Adajusa
https://adajusa.es

Antonio on 07/28/2025 13:27:26
