Emergency stop button diameter 40 2NC + 1NO (press-turn) - SCHNEIDER
Emergency stop button diameter 40 2NC + 1NO (press-turn) - SCHNEIDER

Emergency stop button diameter 40 2NC + 1NO (press-turn) - SCHNEIDER

€35.24 Tax included

€29.12 tax excl.

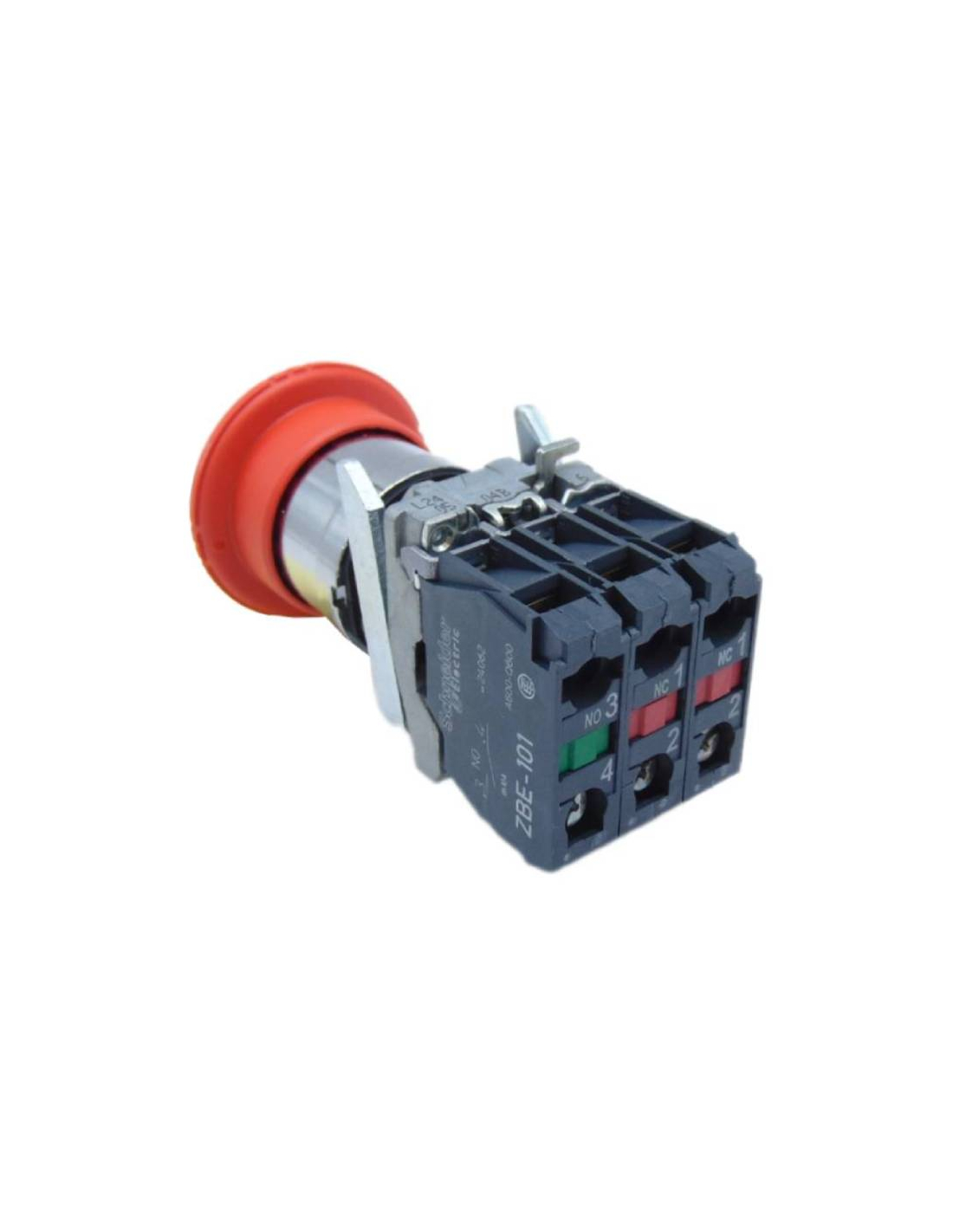

Emergency stop button, red mushroom diameter 40 mm, 2 closed contacts and 1 open contact, metal body and chrome edge. Mechanical interlock and twist unlock.

The supply includes the complete pushbutton with two closed contacts and one open contact (2 NC + 1 NO). Mounting diameter 22.5 mm. Screw cable fixation.


Reference: XB4BS84441




Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Emergency stop button, red mushroom type and 40mm diameter with mechanical interlocking , 2 closed contacts (NC) and one open contact (NO). Chrome edge and twist unlock.



Characteristics:

  • Manufacturer: SCHNEIDER
  • Reference: XB4BS84441
  • HARMONY XBS SERIES metal
  • Mushroom diameter: 40mm
  • Mounting diameter: 22.5mm
  • Contact : 2 NC + 1 NO
  • interlocking mode: mechanical
  • Unlock mode: by twist
  • Short circuit protection: 10A gG type cartridge fuse
  • Conventional thermal current: 10A
  • Rated insulation voltage: 600V
  • Resistance to voltage spikes: 6kV
  • Bezel Material: Silver Chrome Metal
  • Fixing ring material: Zamak
  • Contact material: Ag/Ni
  • Mechanical durability: 300,000 cycles
  • Operating temperature: -40…70°C
  • IP protection grade: IP66
  • IK protection grade: IK06



Dimensions (mm/in):



e: clamping thickness: 1 to 6 mm (0.04 to 0.24 in)


    For more information, you can download the technical sheet by clicking on the "Attachments" tab.

    Material for professional use, it must be installed by qualified personnel, respecting the regulations in force at the installation site.
