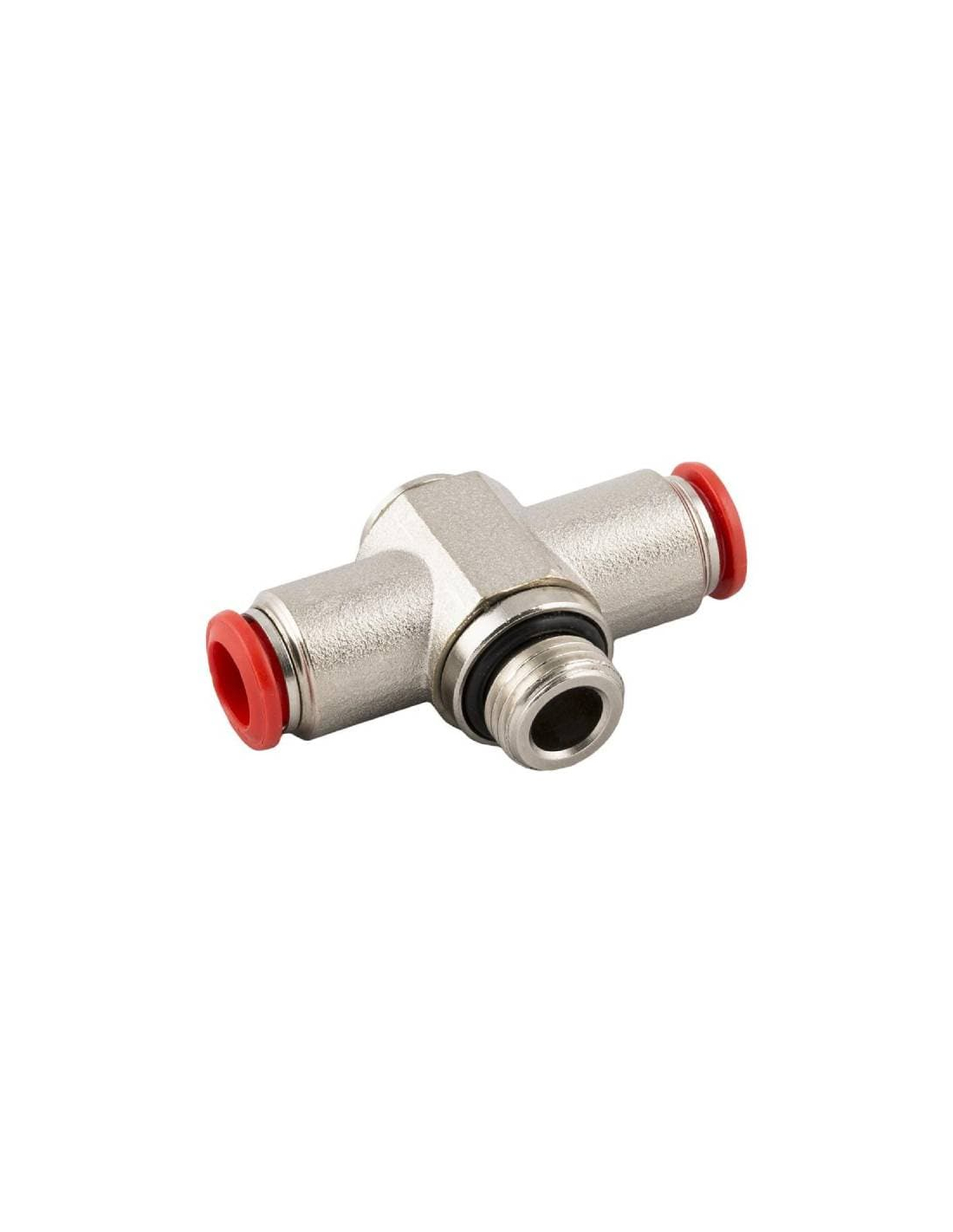

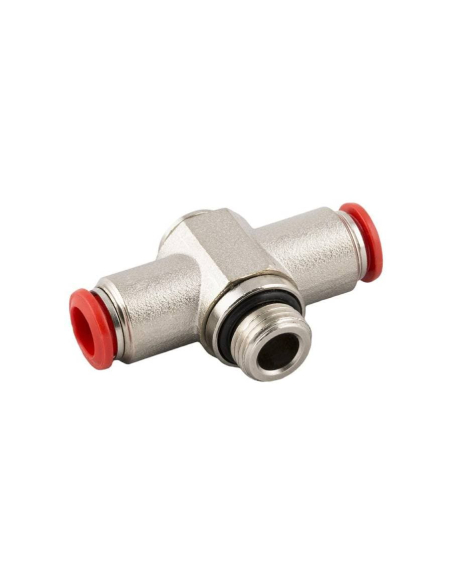

Double swivel fitting 1/8 tube diameter 8mm with O-ring male Series 50000 - Aignep

Swivel fitting double diameter 1/8 tube diameter 8mm with male joint, made of chrome-plated brass. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring clamps the tube without deforming it, thus allowing a greater simplicity in the operation of connecting or disconnecting the fitting from the tube. On the fittings, the ring of the fitting is equipped with a screwdriver's slots to facilitate the disconnection in applications inaccessible to the fingers.

Technical characteristics:

• Manufacturer: Aignep.
• Part number: 50560 8 1/8
• Outer tube diameter: 8mm
• Thread: 1/8
• Fluid: Vacuum - Compressed air
• Working pressure: -0,99 bar at 20 bar
• Material: Chrome-plated brass
• Seal of retention: NBR
• Tube extractor ring: acetal resin
• Clamping spring: stainless steel
• Working temperature: -20ºC to +80ºC
• Thread standard
  • Gas conical according to ISO 7.1, BS 21,DIN 2999
  • Gas cylindrical according to ISO 228 Class A
  • Metric according to ISO R/262

Material for professional use, install in compliance with the regulations in force at the place of installation.
