Solenoid valve fluids 3/4 2/2 closed indirect drive - adajusa.es

Solenoid valve fluids 3/4 2/2 closed indirect drive D.18

Name: Solenoid valve fluids 3/4 2/2 closed indirect drive D.18
Brand: Aignep
SKU: 04F07118NH
Price: 48.34 EUR
Availability: InStock

€48.34 Tax included

€39.95 tax excl.

04F07118NH

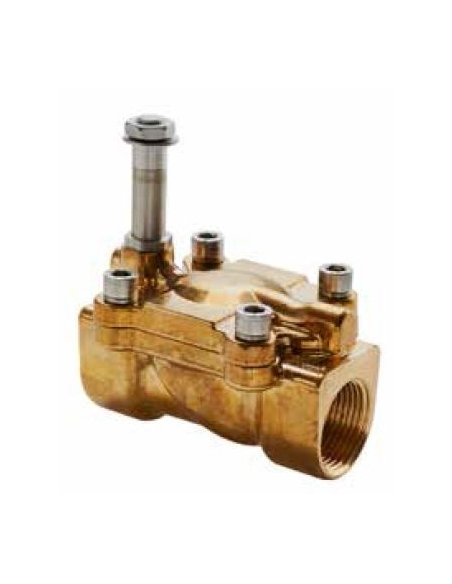

Solenoid valve for home automation, fluid or process control, 3/4" thread. Solenoid valve membrane 2 way closed (NC) indirect drive, diameter actuator for 10mm coil. Pitch diameter: 18 mm

Part no.: 04F07118NH

Max. working pressure 18 bar, and min. diff. pressure 0.15 bar.

Fluids:

Air.
Inert gas.
Water (max. 75ºC).
Mineral oils.
Gas oils.

Esquema electroválvula 2 vías accionamiento indirecto
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Solenoid valve 3/4"diaphragm diaphragm valve, 2 way, normally closed (NC), for use with fluids or air, indirectly operated. Brass body and stainless steel coil handle.

Pitch diameter: 18 mm

In this type of solenoid valves, indirect actuation, there must be a small pressure difference between the inlet and outlet to work properly.

The working pressure ranges are:

Minimum pressure differential between inlet and outlet (ΔP bar): 0.15 bar.
Maximum pressure differential between inlet and outlet (ΔP bar):

With coil size 22mm of 6.5W: 16 bar.
With coil size 22mm of 7.5VA: 16 bar.
With coil size 30mm of 8W: 18 bar.
With coil size 30mm of 11VA: 18 bar.

Maximum allowable pressure: 18 bar.

Compatible coils for this type of solenoid valve are SOL10 (22mm) and SOL11 (30mm) range for 10 diameter cores (Coil not included)

The solenoid valve is normally closed, i.e. without voltage on the coil, the fluid or air will be interrupted through the solenoid valve, when the coil is energized the passage of fluid or air will occur.

The fluids with which this solenoid valve can work are:

Air.
Inert gases.
Water (maximum temperature 75ºC).
Mineral oils.
Gas oil.
Fuel oil.

Technical characteristics:

Manufacturer: Aignep
Part number: 04F 07 1 18 N0
Type of control: indirect drive.
Thread size: 3/4".
number of way: 2.
number of positions: 2.
Configuration: 2/2 closed (NC).
Operator shaft diameter (for coil): 10mm.
Body: Brass.
Guide tube, cores and spring: Stainless steel.
Type of seal: NBR.
Type of fluids: Pressurized air, water (max. 75ºC), mineral oils, diesel oil, fuel oil.
Maximum pressure: 18 bar.
ISO 228 size: 3/4".
flow diameter: 18mm.
Maximum fluid viscosity (cSt): 25.
Valve coefficient (Kv): 5.56 m³/h.
Minimum pressure differential (ΔP bar): 0,15 bar.
Maximum pressure differential (ΔP bar): 16 - 18 bar depending on coil power.
Solenoid valve working temperature: -10ºC to +80ºC.
Fluid temperature: -10ºC to +90ºC.
Installation: Never with the coil downwards.

Dimensiones electroválvula para fluidos 2/2 NC accionamiento indirecto
Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
