1/2 discharge Solenoid valve - Aignep

Name: 1/2 discharge Solenoid valve - Aignep
Brand: Aignep
SKU: 909751212
Price: 46.9359 EUR
Availability: PreOrder

€46.94 Tax included

€38.79 tax excl.

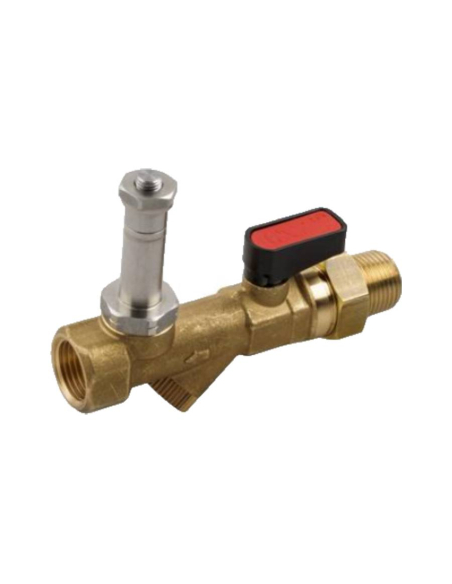

1/2" normally closed (NC) condensate water discharge Solenoid valve , drain solenoid valve, for compressor tanks and pneumatic installations. This type of solenoid valve, associated with a timer, and installed in a pressurized air installation, Periodically purge water and other harmful elements that accumulate, avoiding the risk that they may pass to other circuits and pneumatic machines.

Series: Function
Reference: 90975 1/2 1/2
Adajusa discharge solenoid valve diagram

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

1/2" normally closed (NC) condensate water discharge Solenoid valve , in association with a timer and installed in the discharge circuit of a pressurized air installation, allows for "pause" and "discharge" cycles of the water present in the pneumatic installation and other elements produced by condensation.
This series of solenoid valves are manufactured with a CW617N brass body and NBR gaskets. The guide tube, cores and springs are made of stainless steel.

An excessive presence of condensation water in the pneumatic installation, due to negligence in drainage by manual means or by float purging, can be very harmful to an installation and the elements connected to it. The installation of a discharge solenoid valve allows you to automate its drainage process. This type of solenoid valve incorporates a manual shut-off valve and a manual discharge control.

The solenoid valve is supplied without coil, this has to be purchased separately. The coil must have a core diameter of 13mm and size 30.

The supply includes:

Solenoid valve , with integrated manual shut-off valve

Technical characteristics:

Manufacturer: Aignep
Reference: 90975 1/2 1/2
Inlet thread size: 1/2
Outlet thread size: 1/2
Body: Brass
Gaskets: NBR
Maximum allowable pressure: 40 bar
Filtration degree: 500 um
Core diameter for coil: 13mm
Ambient temperature with coil in class H: -10ºC to +80ºC
Auxiliary shut-off valve type: Manual ball valve
Passage hole diameter: 3mm
Fluid viscosity: 53 cSt
Valve coefficient (Kv): 0.21 m3h
Differential pressure (OPD): 10 to 40 bar depending on the size and power of the coil

Compatible coils for this type of solenoid valve are the SOL20 and SOL21 range, for 13mm diameter cores (Coil not included)

Example of application of the solenoid valve in a drainage system.

Typical assembly of a solenoid valve assembled together with a coil and an analog electrical timer, both elements not included in the supply.

Example of assembled assembly ready for installation

Dimensions:
Adajusa discharge solenoid valve dimensions

Adajusa discharge solenoid valve dimensions table

Adajusa discharge solenoid valve breakdown

Material for professional use, install in compliance with the regulations in force at the installation site.
