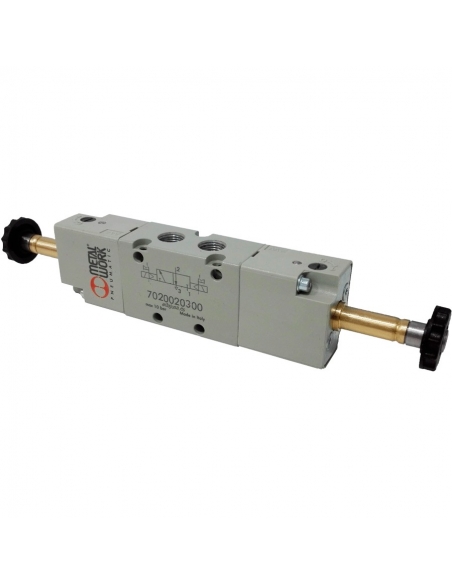

Solenoid valve 1/4 3-way bistable-assisted without coil - Metal Work

€87.01 Tax included

€71.91 tax excl.

1/4" 3-way assisted bile valve for industrial and general applications. Supports coils of size 22mm with core of Ø8mm.

Reference: 7020020300

esquema neumatico electrovalvula 3 vias biestables asistidas

Logo-Metal-Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 1/4 3 assisted bistable roads, for industrial pneumatic applications or general use. Supports 22mm Metal Work coils with 8mm core. Supply does not include coil or connector.

Made of aluminum, compact size and high airflow, short response time.

The feed pressure must be applied to toa 2, used in socket 1 and exhausted in socket 3.

specifications:

  • Manufacturer of the solenoid valve: Metal Work.
  • Manufacturer's Reference: 7020020300 - SOV 33 SEB OO
  • Type: 1/4-3/2 Assisted Bistable
  • Thread: G 1/4"
  • Operating pressure: 0 bar÷10 bar
  • Minimum piltotage pressure: 2.5 bar
  • Working temperature: -10oC ÷ +60oC
  • Nominal diameter: 5mm.
  • Capacity at 6 bar P 0.5 bar: 400 Nl/min
  • Capacity at 6 bar P 1 bar: 550 Nl/min
  • TRA/TRR at 6 bar: 15 ms / 35 ms
  • Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
  • Weight: 0.19kg.
  • Manual drive: Yes.

Dimensiones electrovalvula 1-8 biestable Metal work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
