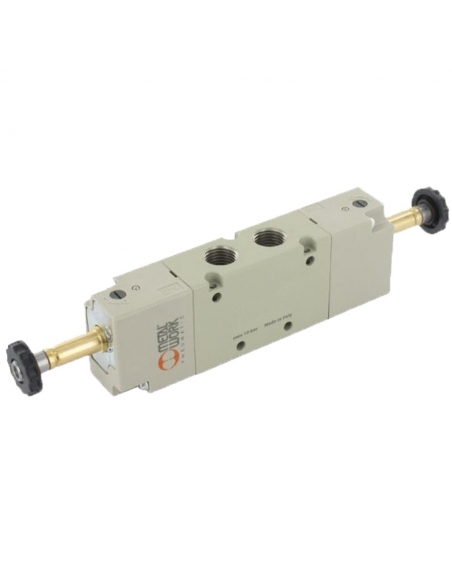

Double solenoid valve 1/4 3/2 assisted tracks - Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22
Double solenoid valve 1/4 3/2 assisted no with coils - Metal Work - ADAJUSA
Double solenoid valve 1/4 3/2 assisted tracks - Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22
Double solenoid valve 1/4 3/2 assisted no with coils - Metal Work - ADAJUSA

Double solenoid valve 1/4 3/2 assisted tracks NO 24Vac - Metal Work

€136.16 Tax included

€112.53 tax excl.

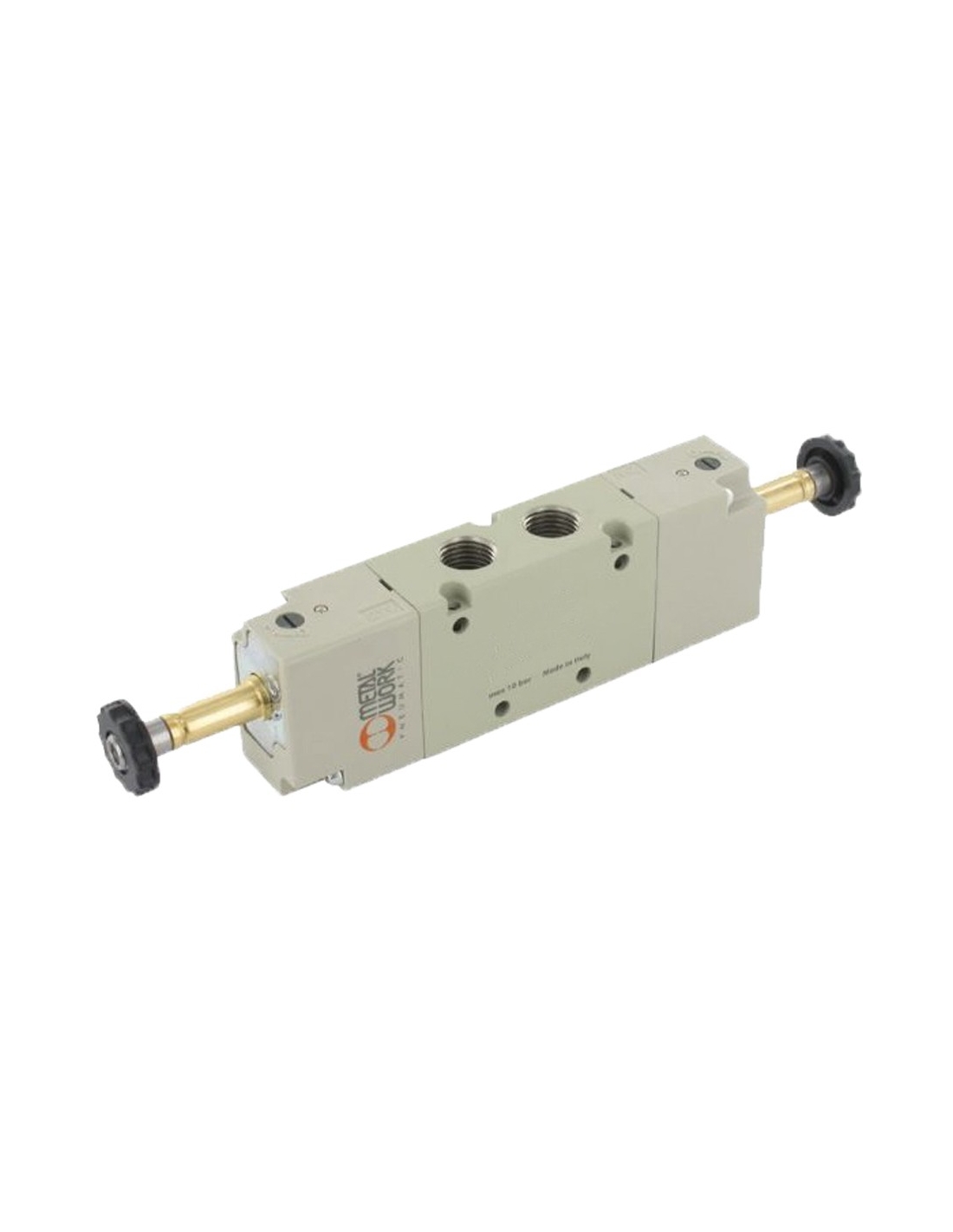

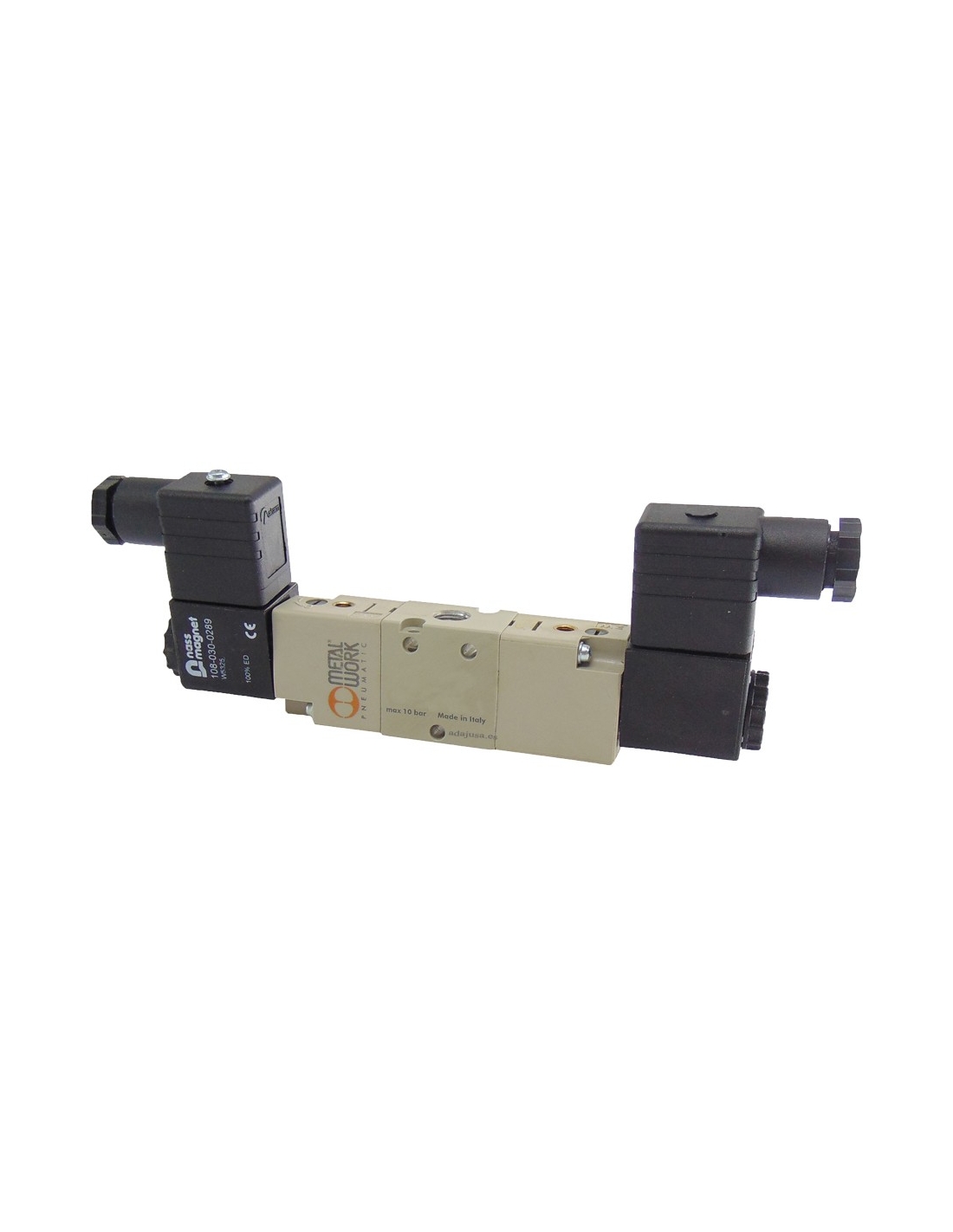

Solenoid valve 1/4 3/2 way double assisted NO output (normally open). With 24 Vac connector and coils


Logotipo Metal Work



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

Double pneumatic solenoid valve 1/4" 3/2 way assisted NO.The solenoid valve is normally open, i.e. without voltage on the coil, the fluid or air will be passing through the solenoid valve , when the coil is energized the passage of fluid or air will be interrupted.

The scope of delivery includes:
  • Double solenoid valve 1/4" 3/2 assisted NO
  • 2 Coils 24 Vac 3,5VA
  • 2 Connectors T22

Technical characteristics:

      • Manufacturer Metal Work
      • Part number: Metal Work: SOV 38 SES NC Code: 7020023500
      • Thread type: G 1/4
      • Bistable bar: 2.5 ÷ 10
      • Minimum assistance pressure bar: 2.5
      • Operating temperature °C: -10 ÷ +60
      • Nominal diameter mm: 7.5
      • Conductance C Nl/min - bar: 264.26
      • Critical ratio b bar/bar: 0.27
      • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
      • Flow rate at 6 bar ΔP 1 bar Nl/min: 1100
      • TRA/TRR monostable at 6 bar ms: 19/45
      • TRA/TRR bistable at 6 bar ms: 21/21
      • Tension tolerances %: -10 ÷ +15
      • Class of isolation: F 155
      • Voltage: 24 Vac
      • Power: 3,50 VA

    Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.
