Solenoid valve 1/4 3 ways monostable NO - Metal Work

€60.69 Tax included

€50.16 tax excl.

1/4" 3-way monostable, closed (NO) pneumatic solenoid valve for industrial and general use applications. Supports coils (not included) of size 22mm with core of Ø8mm.

Reference: 7020020400

Logo-Metal-Work

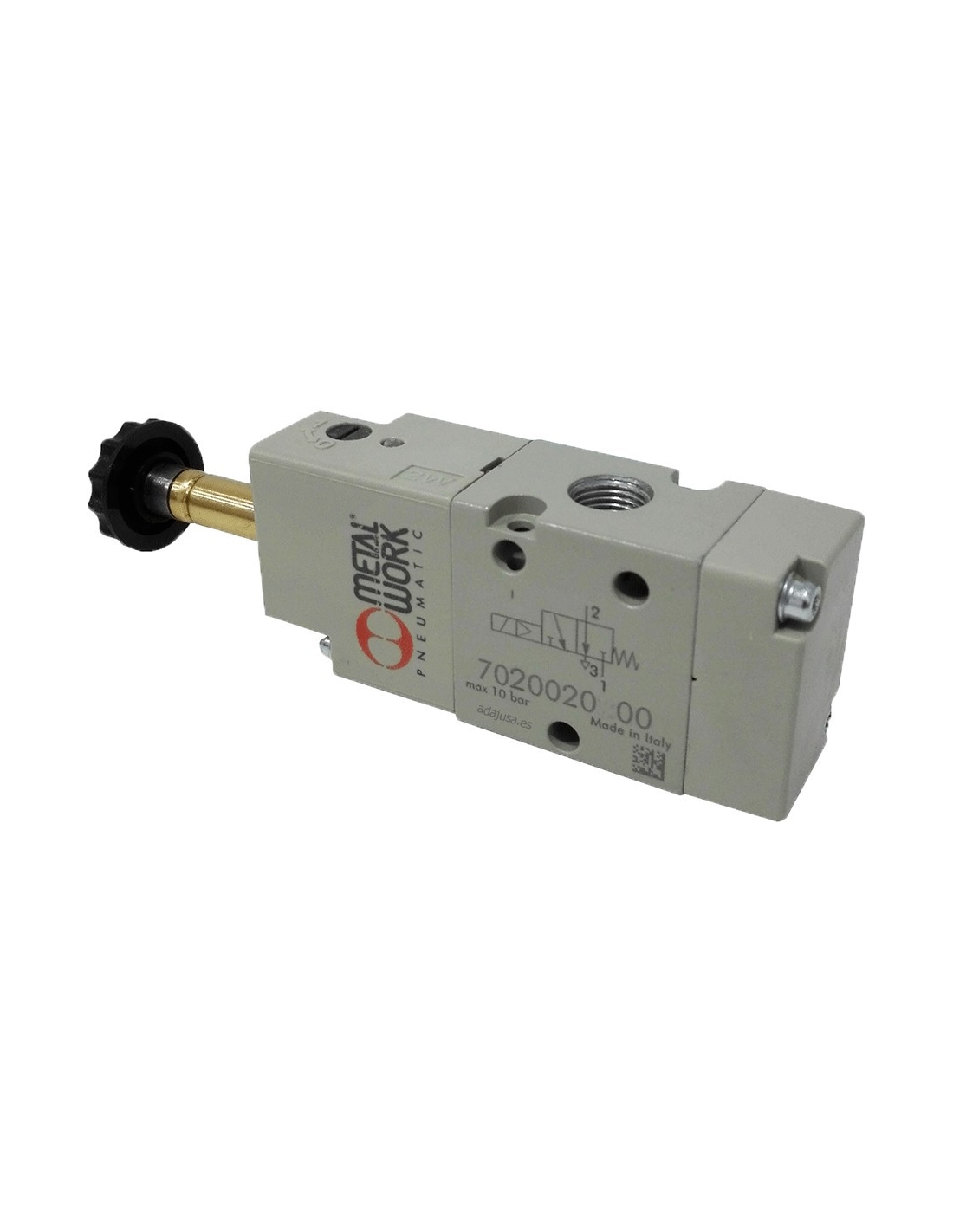

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Monostable 1/4 3-way pneumatic solenoid valve, usually open (NO), for industrial pneumatic applications or general use. Supports coils of Metal Work size 22mm with core of Ø8mm. The supply does not include coil or connector.

Made of aluminum, compact size and high air passage flow, short response time.

Specifications:

  • Solenoid valve manufacturer: Metal Work.
  • Manufacturer reference: 7020020400 - SOV 33 SOS NO
  • Type: 1/4-5/2 Monostable
  • Thread: G 1/4"
  • Operating pressure: 2.5 bar÷10 bar
  • Minimum working pressure: 2.5 bar
  • Working temperature: -10°÷ +60°C
  • Nominal diameter: 5mm.
  • Capacity at 6 bar ΔP 0.5 bar: 400 Nl/min
  • Capacity at 6 bar ΔP 1 bar: 550 Nl/min
  • TRA/TRR at 6 bar: 15 ms / 35 ms
  • Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
  • Weight: 0,152kg.
  • Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.


To expand the information you can download the technical sheet by clicking on the "Attachments" tab
