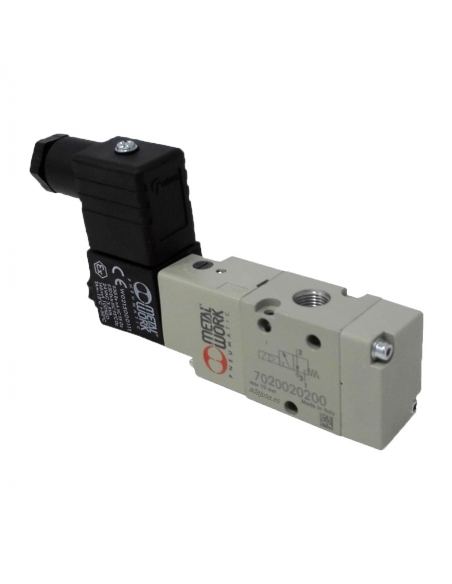

Solenoid valve 1/4 3 vias monostable 110Vac 3.5VA - Metal Work

€71.70 Tax included

€59.26 tax excl.

1/4" 3-way single-stable, closed (NC) pneumatic solenoid valve for industrial and general use applications.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of 8mm. Connector 22 mm

Esquema electrovalvula mando indirecto 3 vias NC

Logo-Metal-Work

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4 3-way monostable, normally closed (NC) pneumatic solenoid valve for industrial pneumatic applications or general use. Supports 22mm Metal Work coils with 8mm core.
Made of aluminum, compact size and high airflow, short response time.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of 8mm

22mm plastic connector

The feed pressure must be applied to toa 2, used in socket 1 and exhausted in socket 3.

Supply includes:

  • Solenoid valve 1/4 3 monostable roads
  • Coil 110Vac 3.5VA
  • 22mm connector

specifications:

  • Manufacturer of the solenoid valve: Metal Work.
  • Manufacturer's Reference: 7020020200 - SOV 33 SOS NC
  • Type: 1/4-5/2 Monostable
  • Thread: G 1/4"
  • Operating pressure: 2.5 bar÷10 bar
  • Minimum working pressure: 2.5 bar
  • Voltage: 110Vac
  • Consumption: 3.5VA
  • Working temperature: -10oC ÷ +60oC
  • Nominal diameter: 5mm.
  • Capacity at 6 bar P 0.5 bar: 400 Nl/min
  • Capacity at 6 bar P 1 bar: 550 Nl/min
  • TRA/TRR at 6 bar: 15 ms / 35 ms
  • Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
  • Weight: 0.152kg.
  • Manual drive: Yes.

Dimensiones electrovalvula 1/4 3/2 monoestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
