Gutter slotted with cover 40x60 PVC ECS6040 Elettrocanali | ADAJUSA : price

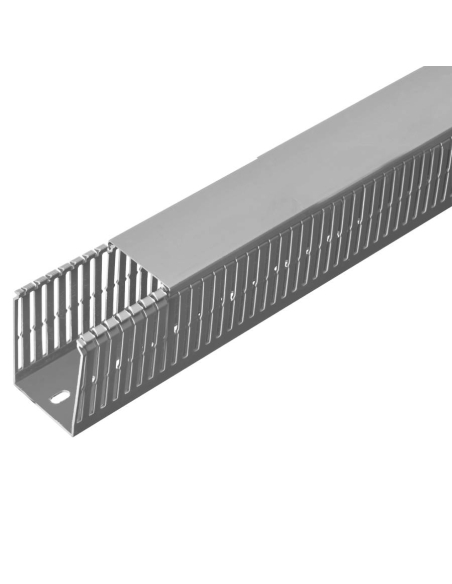

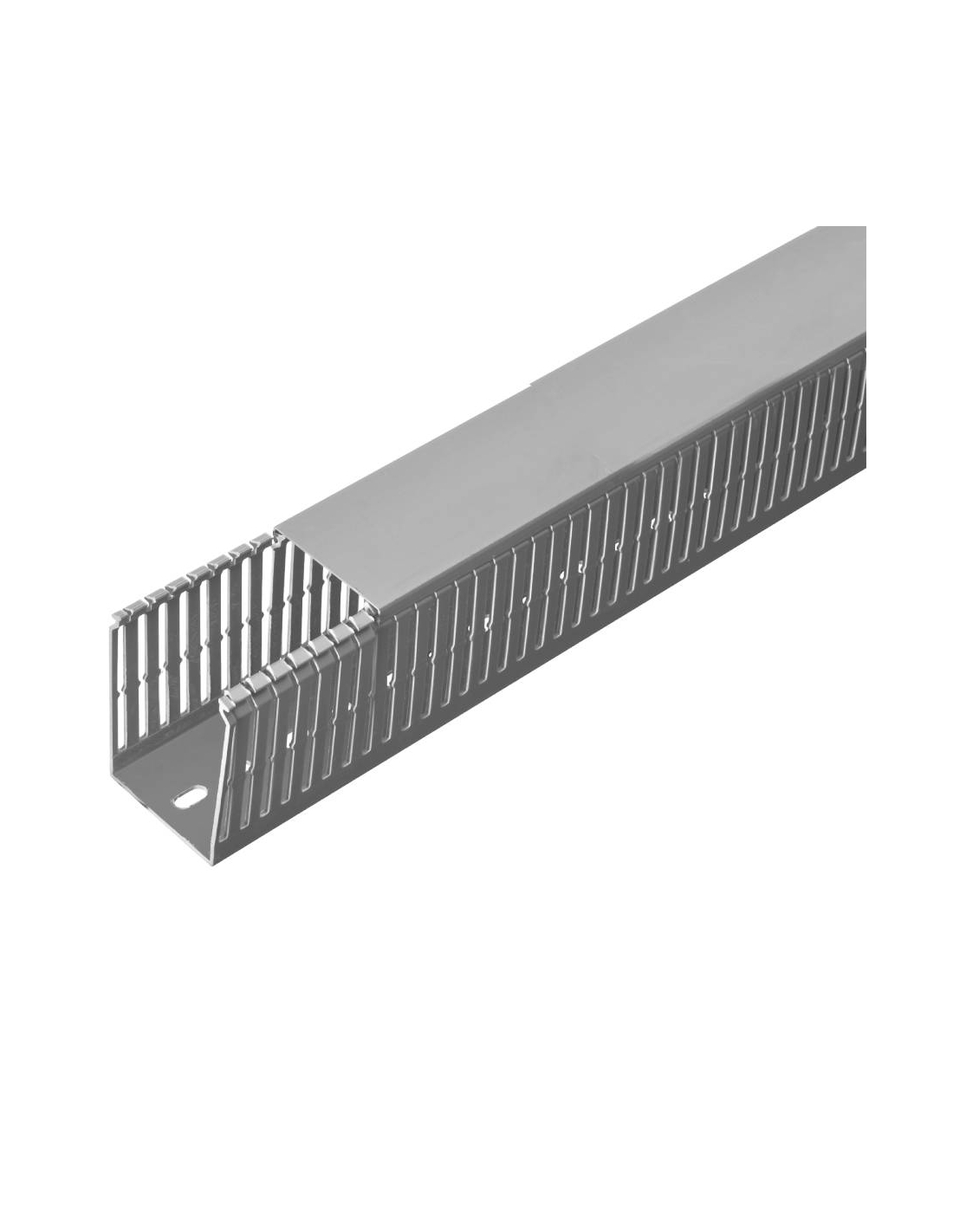

Gutter slotted 40x60 (height 40 base 60) 1m strip - Elettrocanali

Name: Gutter slotted 40x60 (height 40 base 60) 1m strip - Elettrocanali
Brand: Elettrocanali
SKU: ECS6040
Price: 6.03 EUR
Availability: InStock

€6.03 Tax included

4.98 tax excl.

ECS6040

Gutter slotted measuring 40x60 (base 60mm x height 40mm) supplied in strips of 1 meter long. Gutter with cover made of self-extinguishing PVC V0 (UL94) gray (RAL 7030). Perforation slots narrow 4/6/4. Suitable for industrial, photovoltaic, tertiary sector, etc.

Reference: ECS6040

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Gutter slotted with cover dimensions 40x60 (base: 60mm x height: 40mm), supplied in strips of 1 meter. Gray color (RAL 7030) with slots of 4mm and flanges of 6mm. Made of self-extinguishing PVC V0 (UL94) flame retardant. Gutter for electrical cables for use in electrical cabinets for automation and distribution for various sectors such as industrial, photovoltaic, tertiary, etc.. Double fracture line for easy and fast extraction of the slat or the entire side wall.

Characteristics:

Manufacturer: Elettrocanali
Part number: ECS6040
Base dimensions: 60mm
Height dimensions: 40mm
Length: 1m
Material: Polyvinyl chloride (PVC)
Self-extinguishing: Yes
Color: Gray (RAL 7030)
Fixing type: Bottom drilling
Sidewall type: Hole drilling/slots
Distance from slots or flange width: 6 mm
Width of slots: 4 mm
Installation temperatures: -5°C to +60°C
Mechanical impact resistance: IK07 (impacts up to 2 J)
Resistance to heat in continuous use: up to +70°C
Abnormal heat resistance: up to 960°C (glow wire test, IEC 60695-2-11 standard)
Insulation resistance: > 100 MΩ
Dielectric strength: > 3000 V
Pre-drilled bottom according to DIN 43659 standard
Standards: EN 50085-1 EN 50085-2-3 UL 1565
Markings: UL94 V0, GW 360°
Products complying with the safety objectives of the Directive B.T. 2014/35/EU (Annex I)
Products compliant with RoHS II Directive 2011/65/EU + 2015/863/EU

Material for professional use, install in compliance with the regulations in force at the place of installation.
