Single-phase motor 0.25Kw 0.33HP 230V 1000 rpm high starting torque, Flange B3 foot

Single-phase motor 0.25Kw 0.33HP 230V 1000 rpm high starting torque, Flange B3 foot

€135.92 Tax included

€112.33 tax excl.

Single-phase electric motor 0,25kW (0,33hp) 230Vac, 50Hz, 6 Poles (1000 rpm) Flange B3 foot, high starting torque with centrifugal breaker, aluminum housing. Manufactured under European IEC regulations.

  • Voltage: 230Vac 50Hz.
  • Type: High boot torque.
  • Power: 0.25Kw - 0.33HP.
  • Number of poles: 6.
  • Revs: 1000 rpm.
  • Flange: B3 foot.
  • Shaft diameter: 14mm.
  • Size: 716B.
  • Energy efficiency: IE1.

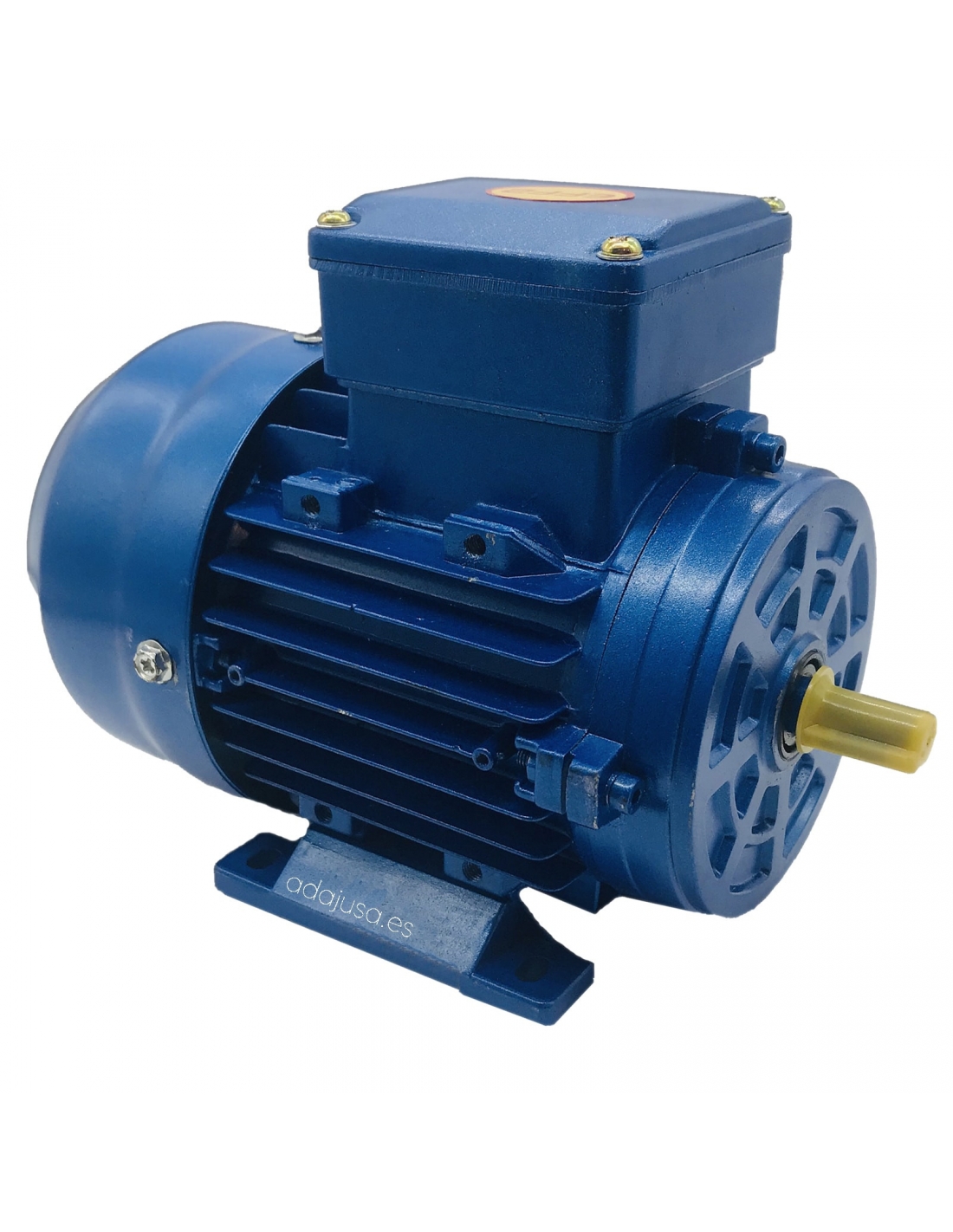

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

1 question about the product


Electric motor single-phase 0.25kw (0.33hp) 230Vac 50Hz, 6 poles (1000 rpm), flange type B3 (foot) and high starting torque with centrifugal circuit breaker. detachable foot .

Standard single-phase electric motors for general purposes, manufactured under European IEC standard in aluminum with removable foot . Windings in enameled copper with class F insulation. The execution of the housing is closed, it has a retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the terminal box of the engine.

By means of the proper position of the connection plates, in the terminal box, the motor can rotate both right and left.

The starting system by centrifugal circuit breaker and auxiliary starter capacitor, allows to have a reinforced starting stop, the system is fully automatic.

Characteristics:

  • Manufacturer/Importer: Alren
  • Reference: ALHL716B6B3
  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE1.
  • Voltage: 230 Vac. 50Hz.
  • Number of poles: 6
  • High starting torque.
  • Power: 0.25 Kw (0.33HP).
  • Continuous service: S1.
  • Degree of protection: IP55.
  • Clamping type: Flange B3 foot.
  • Shaft diameter: Ø14mm.
  • Housing size 71 (716B).
  • Color: Blue.
  • Housing material: Aluminum.
  • CE marking.
For more information, other powers or executions consult.
As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.

Dimensiones motores monofasicos B3

To expand the information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with current regulations at the place of installation.

Questions

Question
Can a single phase 0.33HP electric motor be controlled by a simple double pole isolation switch. Thank you Robin
Answer
Good morning.

To start an engine you must use a switch adjusted to the characteristics of intentensidad that has that engine to start, it does not serve a switch of 2 poles any by the peaks that it generates to start, it has to be designed specifically for it.

If you also want to be able to use it in both directions

https://adajusa.com/en/964-interruptores-inversores-monofasicos

If you only want it to rotate in one direction

However, please check that it meets your specifications.

Regards

Adajusa
Robin Brown on 01/31/2023 23:47:40
