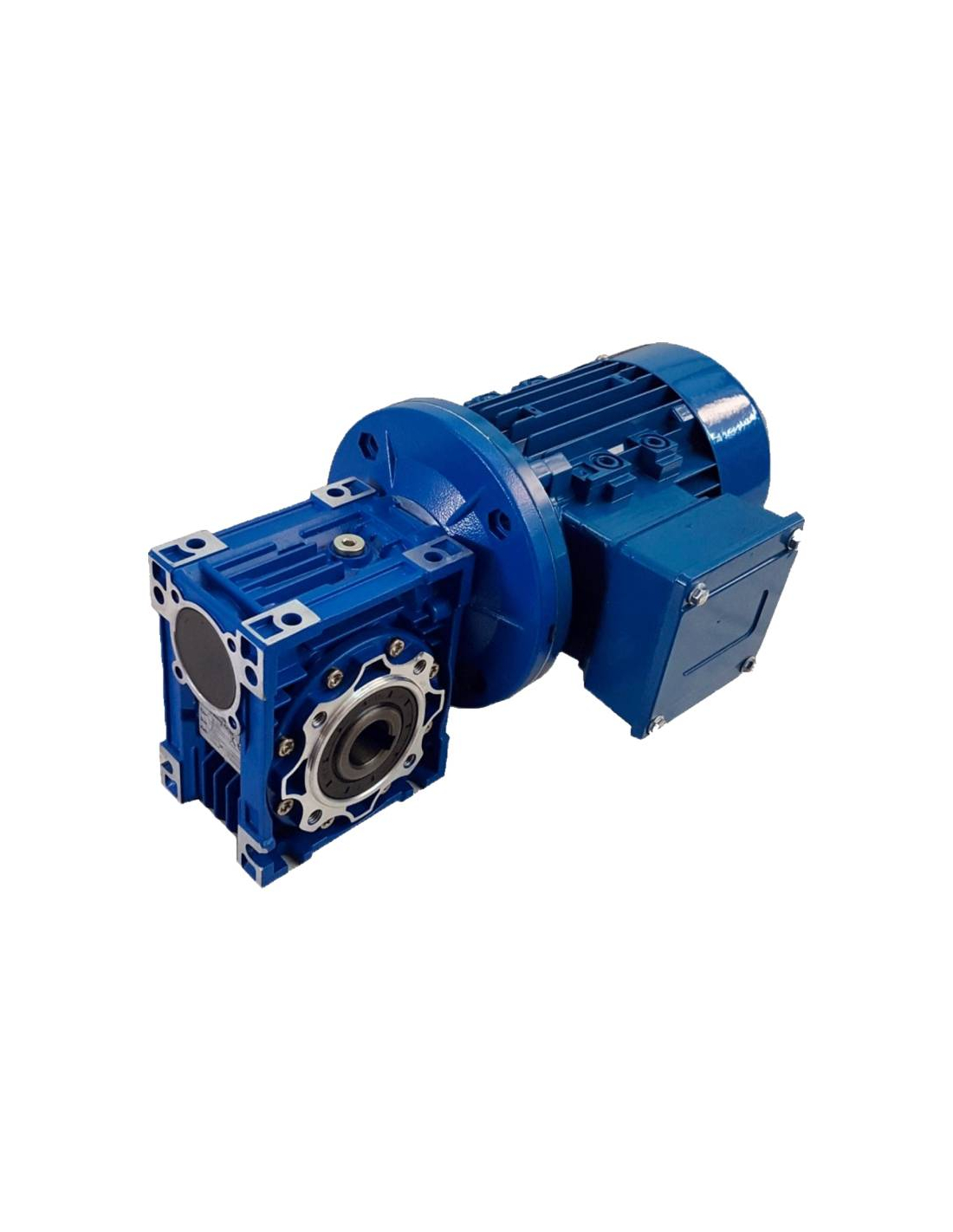

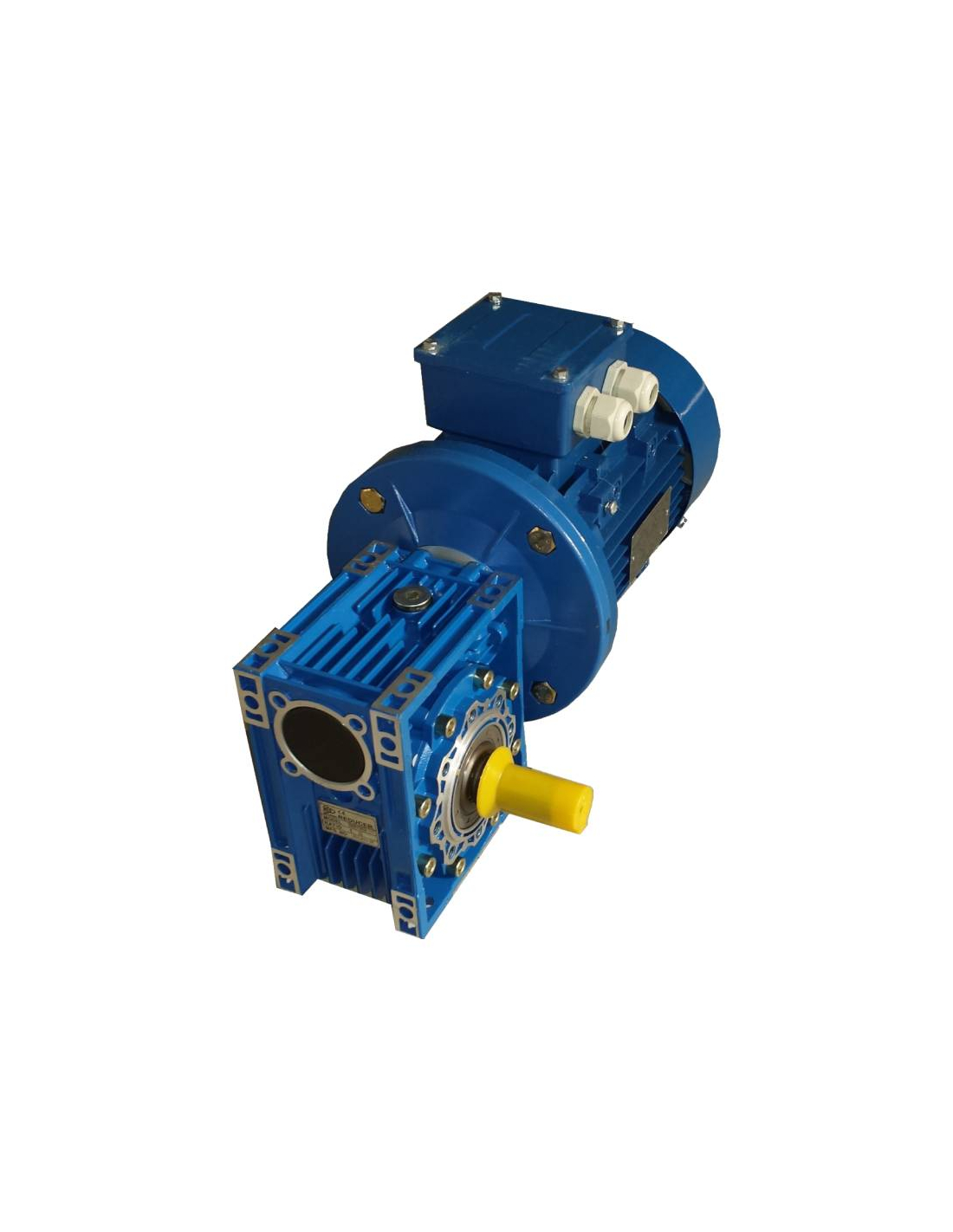

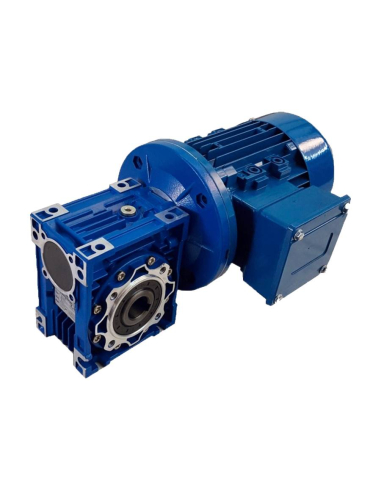

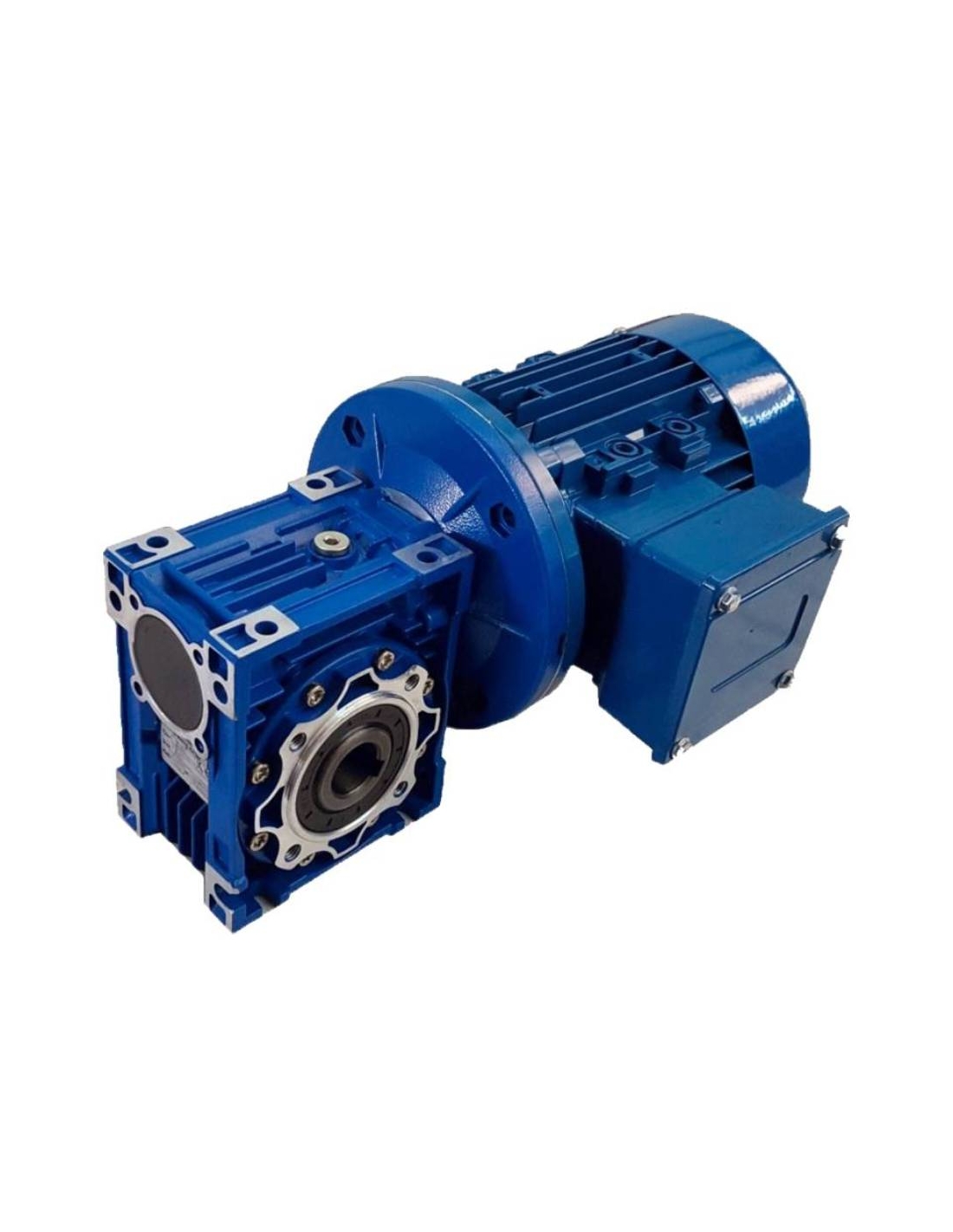

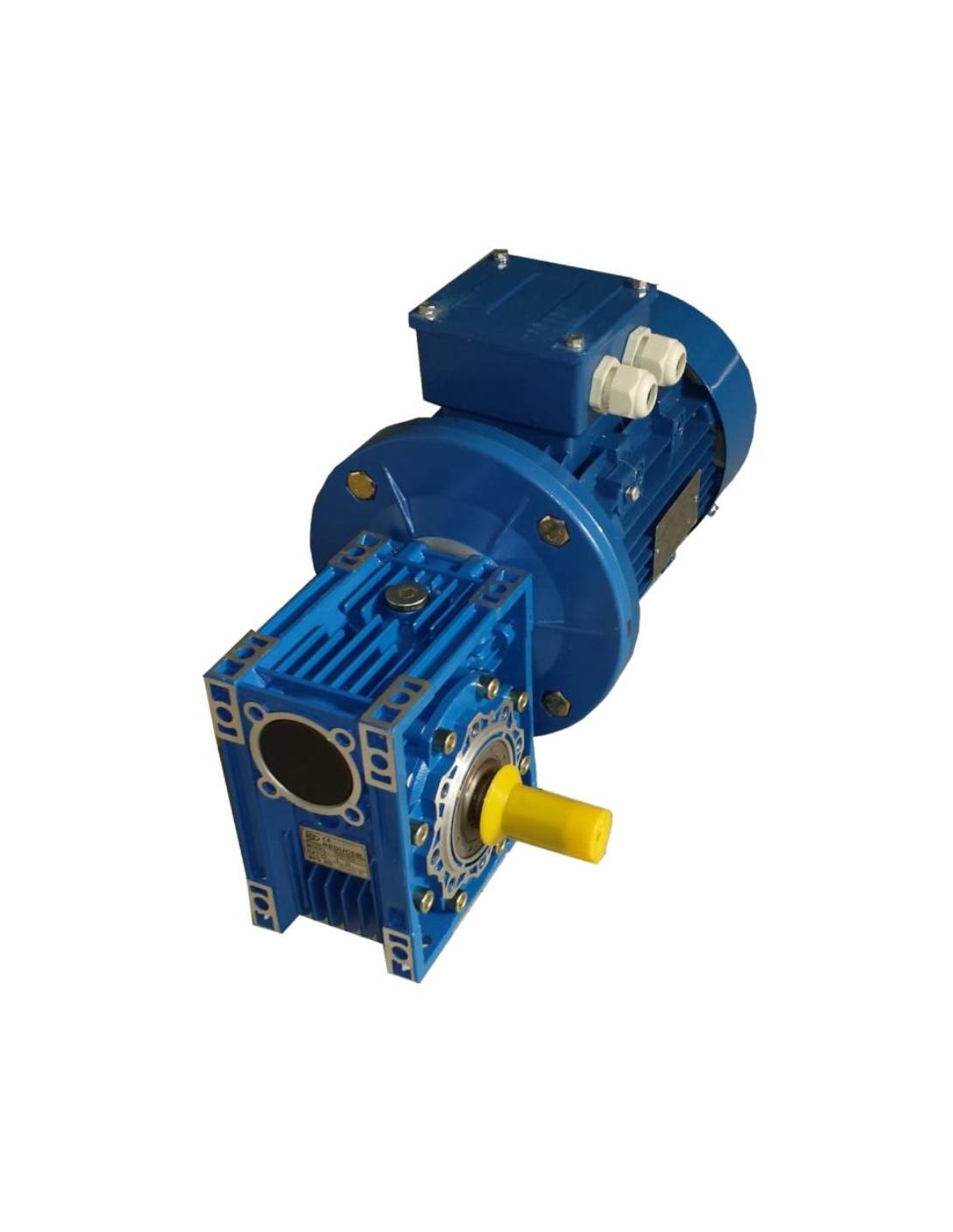

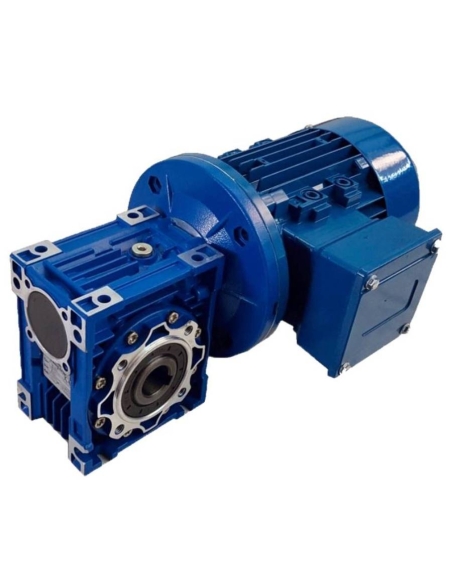

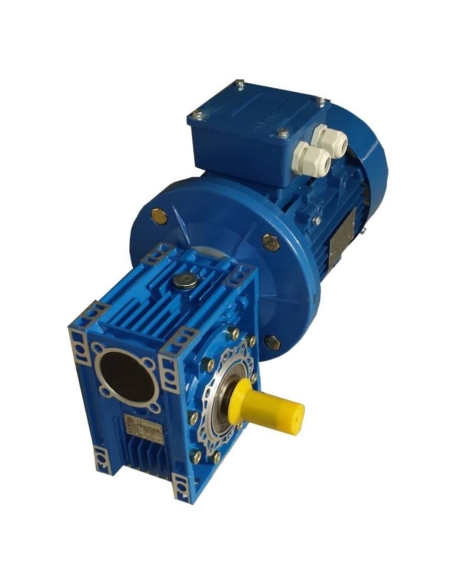

Single-phase Gear motor 0.37kW 0.5HP 230Vac 1500 rpm ratio 25 T40 (56rpm)

€198.67 Tax included

164.19 tax excl.

PK-9MR040037254M

Single-phase Gear motor 0.37kw 0.5HP 230Vac, reducer size 40 with reduction ratio I:25 that allows output turns of approximately 56rpm.

  • Motor: Single-phase 0.37Kw 230Vac 1500rpm
  • Reducer : size 40 I:25.
  • Output laps: 56
  • For output shaft: 18mm




Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

2 questions about the product
Privacy
Shipments
Returns


Single-phase Gear motor 0.37kw 0.5HP 230Vac, reducer size 40 with reduction ratio I:25 that allows an output of approximately 56rpm at its output.

Engine technical characteristics:

  • Motor: Single-phase half starting torque.
  • Rated voltage: 230Vac 50Hz
  • Intensity (In): 2.6 A.
  • Rated power: 0.37Kw. (0.5HP).
  • Medium starting torque.
  • Revolutions: 1400 rpm .

Technical characteristics of the reducer:

  • Reducer type: crown worm.
  • Reducer size: 40.
  • Reduction ratio: 25.
  • Final turns: 56 rpm .
  • Output torque: 37.6 Nm.
  • Service factor: 0.8
  • For output shaft: Ø18mm

The output shaft is not included in the supply, it must be ordered separately. As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

Engine intended to be used exclusively as a spare part for machinery and/or automatic systems .

For more information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the installation site

Questions

Question
Permiten la inversión de giro con el cambio de los bornes?, gracias.
Answer
Buenos días.
Un motoreductor monofásico puede girar en sentido horario o antihorario según se conecten los bornes en su caja de conexiones, también se puede cambiar el sentido de giro utilizando un inversor monofásico.
Verifique que cumple con sus especificaciones.
Saludos
Juan Carlos on 02/23/2022 18:42:18
Question
Bonjour, l'arbre est il fourni avec le pack? le shema de branchement est il fourni avec le pack? dans l'attente de votre réponse? Cordialement, Clever Théodore
Answer

Bonjour.

Le pack comprend le moteur et le réducteur, la broche que vous devrez choisir vous-même, il s'agit d'une broche de 18 mm de diamètre, simple ou double, en fonction de votre application.

Pour cette taille de réducteur, nous proposons une broche simple et une broche double.

Clever Théodore on 02/07/2022 20:13:04
