Autotransformer single-phase 100VA 125/220Vac IP-20

€39.58 Tax included

€32.71 tax excl.

Reversible autotransformer single-phase of 100VA, which allows voltage adaptation between 125 and 220Vac, encapsulated in resin, which provides a degree of protection IP-20.

It allows to adapt the voltage in small machinery and household appliances in an economical way.

Reference: ATI-100

Esquema autotransformador 125-220V

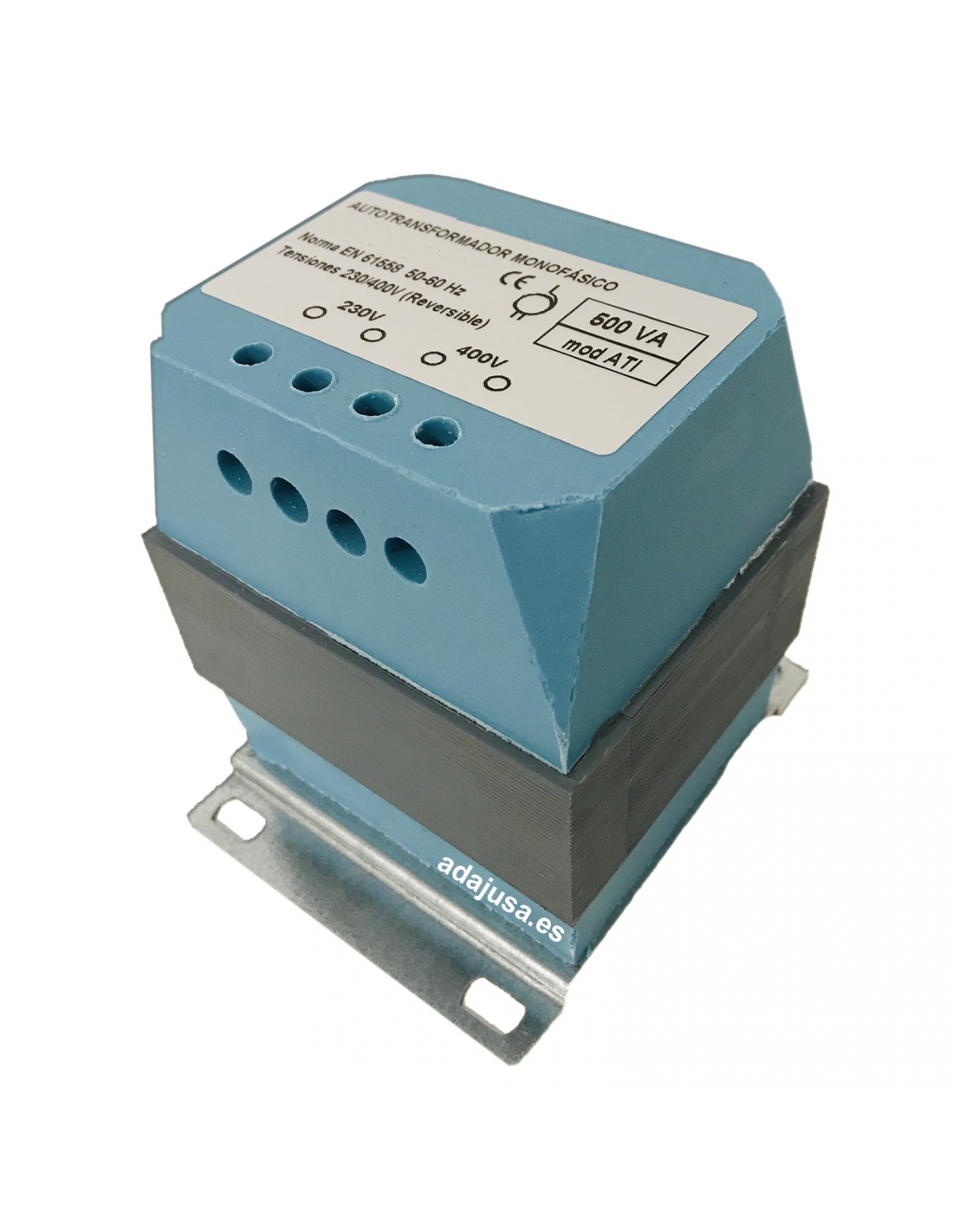

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Autotransformer single-phase encapsulated in resin, for voltage change, reversible, intended for voltage change. They are indicated when it is required to adapt the voltage from 125V to 220V / 220V to 125Vac, in an economic way, without galvanic separation. Their usual field of application is the use in small machinery and household appliances.

Manufactured with low-loss magnetic sheet and copper wire windings, providing high performance.

Technical characteristics:

  • Reference: ATI-100
  • Transformer ratio: 125/220 Vac Reversible
  • Power: 100VA.
  • Frequency: 50/60Hz.
  • Windings: Thermal class N 200ºC.
  • Insulation: Thermal class B 130ºC.
  • Test voltage: 3KV between ground.
  • Encapsulation: Self-extinguishing resin.
  • Protection: IP-20.
  • Ambient temperature: TA=25ºC.
  • Cooling: ANAN (Natural air).
  • Certificate: UNE-EN 61558.

Indicaciones de medidas autotransformadores IP-20Indicaciones de dimensiones autotransformadores IP-20 encapsulados

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer.
The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the place of installation.
