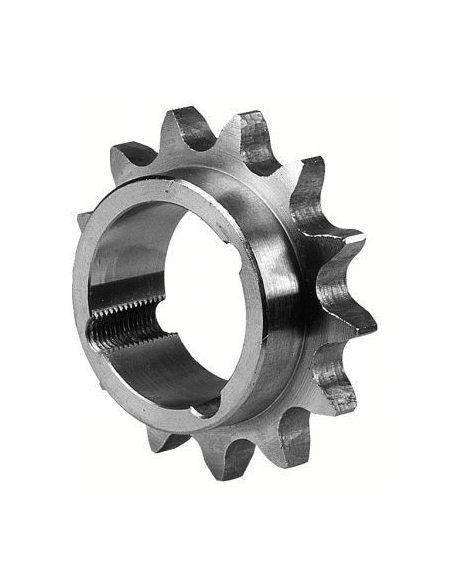

Simple taper pinions lock 5/8 x 3/8 10B-1 ISO 606 - ADAJUSA
Simple taper pinions lock 5/8 x 3/8 10B-1 ISO 606 - ADAJUSA

Simple sprockets Z23 taper lock T1610 5/8 x 3/8 10B-1 ISO 606

€29.73 Tax included

€24.57 tax excl.

Simple sprockets for 1610 roller chain 1610 bushing taper lock according to European standard DIN ISO 606

Reference: PINHON Z24 5/8-T1610

Teeth: 23

ISO: 10B-1

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for 1610 roller chain 1610 bushing taper lock according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z23 5/8-T16108


Characteristics:

  • 5/8" x 3/8" mm ISO 10B-1
  • 15.875 x 9.65 mm
  • Teeth: 23
  • Taper Lock: 1610
  • Outer Diameter (S): 123.4
  • Primitive diameter (Dp): 116.58
  • Hub diameter (d): 76
  • Width (H): 25


Material for professional use, install in compliance with the regulations in force at the place of installation.
