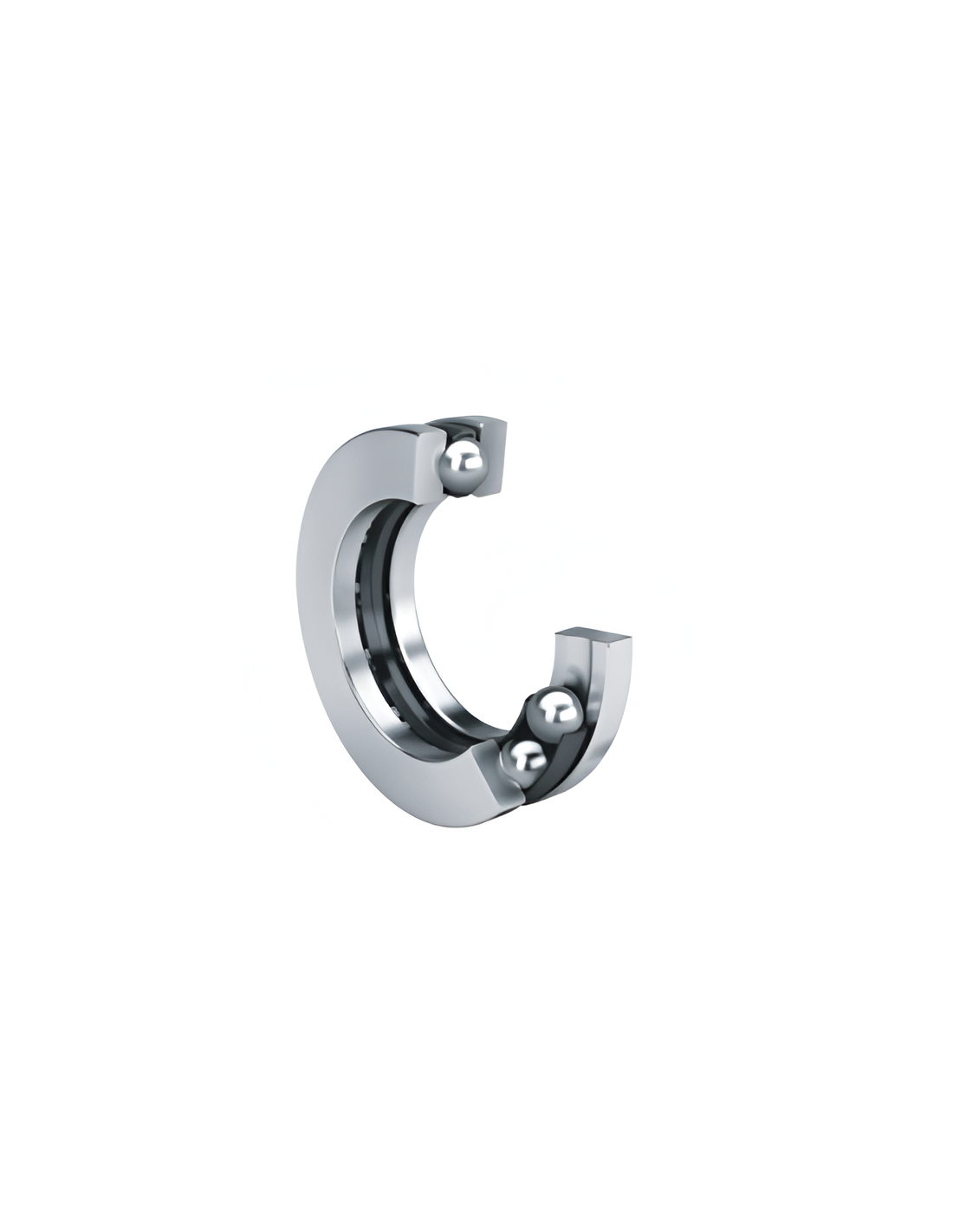

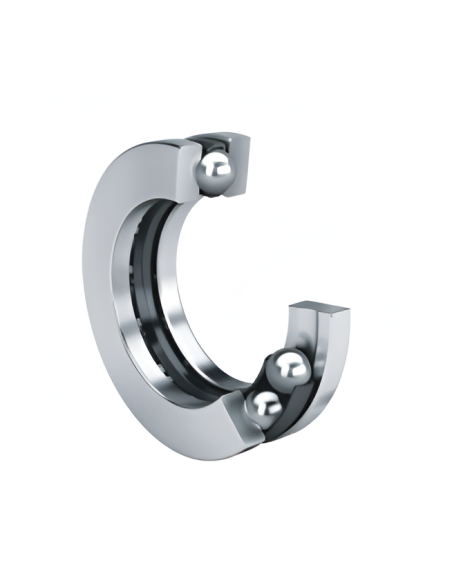

simple direction axial ball bearing with spherical housing ring 53312 , dimensions 60x110x38.3 mm, inner diameter 60mm, outer diameter 110mm, width 38.3mm. These bearings consist of shaft rings, spherical housing rings and ball cage assembly. The bearings are not self-retaining and for this reason the ball cage assembly and bearing rings can be mounted separately, they are particularly suitable for supporting axial loads in one direction only.
Axial ball bearings with spherical housing ring compensate for static shaft alignment errors.
The main dimensions for simple direction thrust bearings correspond to ISO 104/DIN 711. The dimensional and shape tolerances correspond to tolerance class PN, according to DIN 620-3.
Axial ball bearings can be used for operating temperatures from –30 °C to +150 °C limited by lubricant.
Characteristics:
- Manufacturer/Distributor: FAG
- Reference: 53312 FAG
- Material: Steel
- Dynamic load capacity, axial (Cr) : 100000N
- Static load capacity, axial (Cor) : 208000N
- Fatigue load limit, axial (Cur) : 9000N
- Maximum rotation speed (nG): 3200 1/min
- Weight: 1.41 Kg
Dimensions:- Hole diameter (d): 60mm
- Outer diameter (D): 110mm
- Width, overall (T): 38.3mm
- Housing ring hole diameter (D1): 62mm
- Shaft ring lip diameter (d1): 110mm
- Minimum chamfer measurements (r): 1.1mm
- Radius of spherical housing ring (R): 90mm
- Center point distance (A): 41mm
Professional use material, install in compliance with the regulations in force at the installation site.
For further information you can download the technical sheet by clicking on the "Attached Files" tab.
