simple direction axial ball bearing 51211 55x90x25mm - ISB

simple direction axial ball bearing 51211 55x90x25mm - ISB

€25.83 Tax included

€21.35 tax excl.

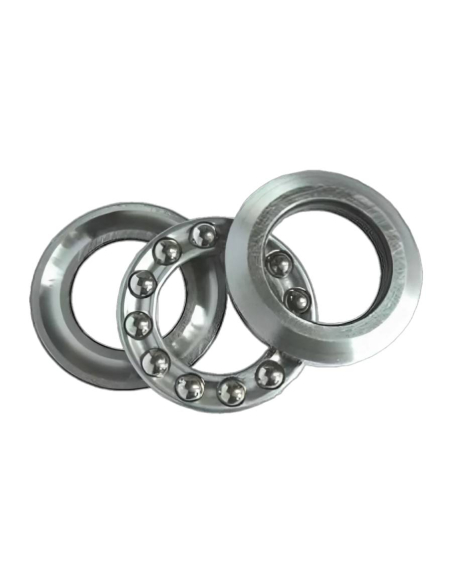

simple direction thrust ball bearing with flat housing ring 51211 , dimensions 55x90x25mm, inner diameter 55mm, outer diameter 90mm, width 25mm. These bearings consist of shaft rings, housing rings and ball cage. The bearings are not self-retaining and for this reason the ball cage and bearing rings can be mounted separately, they are particularly suitable for supporting axial loads in one direction only. Thrust ball bearings with flat housing ring do not permit angular errors or inclined positions between the shaft and housing rings.

Reference: 51211 ISB

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


simple direction thrust ball bearing with flat housing ring 51211 , dimensions 55x90x25mm, inner diameter 55mm, outer diameter 90mm, width 25mm. These bearings consist of shaft rings, housing rings and ball cage assembly. The bearings are not self-retaining and for this reason the ball cage and bearing rings can be mounted separately, they are particularly suitable for supporting axial loads in one direction only. Axial ball bearings with flat housing ring do not permit angular errors or inclined positions between the shaft and housing rings.

The dimensions of the thrust ball bearings comply with ISO 104:2002. Thrust ball bearings are generally manufactured to normal tolerances. The 511 series has the highest precision class, according to P5 and P6.

Characteristics:

  • Manufacturer/Distributor: ISB
  • Reference: 51211 ISB
  • Material: Steel
  • Dynamic load coefficient (KN) C: 61
  • Static load coefficient (KN) C 0 : 143
  • Grease (Maximum revolutions): 3060 rpm
  • Oil (Maximum revolutions): 3600 rpm
  • Weight: 0.59 Kg

Dimensions:
  • Dimension d: 55 mm
  • Dimension D: 90 mm
  • Dimension H: 25 mm
  • Dimension d1: 90 mm
  • Dimension D1: 57 mm

51_DIMENSIONS

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
