simple direction axial ball bearing 51410 50x110x43mm - FAG
simple direction axial ball bearing 51410 50x110x43mm - FAG

simple direction axial ball bearing 51410 50x110x43mm - FAG

€106.72 Tax included

€88.20 tax excl.

simple direction thrust ball bearing with flat housing ring 51410 , dimensions 50x110x43mm, inner diameter 50mm, outer diameter 110mm, width 43mm. These bearings consist of shaft rings, housing rings and ball cage. The bearings are not self-retaining and for this reason the ball cage and bearing rings can be mounted separately, they are particularly suitable for supporting axial loads in one direction only. Thrust ball bearings with flat housing ring do not permit angular errors or inclined positions between the shaft and housing rings.

Reference: 51410 FAG

Logo-FAG

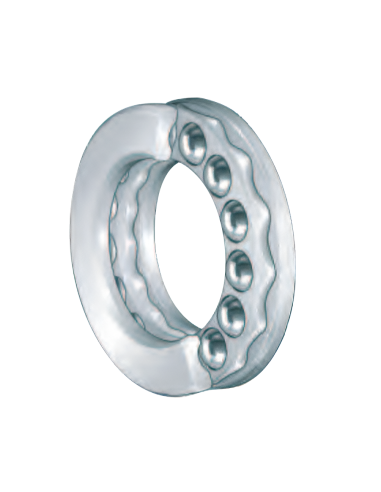

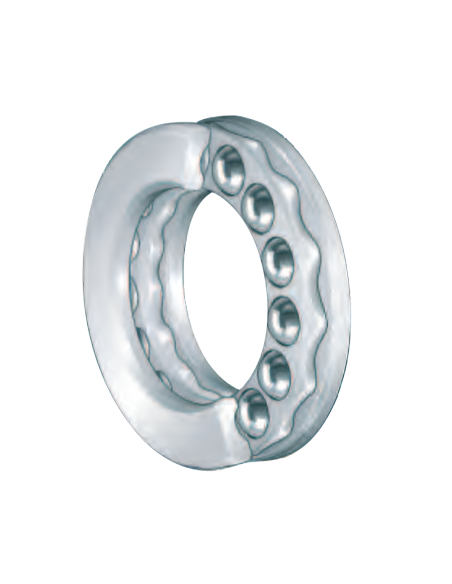

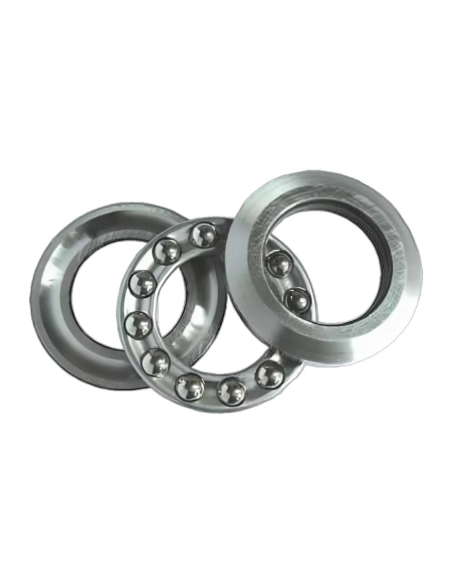

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


simple direction thrust ball bearing with flat housing ring 51410 , dimensions 50x110x43mm, inner diameter 50mm, outer diameter 110mm, width 43 mm. These bearings consist of shaft rings, housing rings and ball cage. The bearings are not self-retaining and for this reason the ball cage and bearing rings can be mounted separately, they are particularly suitable for supporting axial loads in one direction only. Thrust ball bearings with flat housing ring do not permit angular errors or inclined positions between the shaft and housing rings.

The main dimensions for simple direction thrust bearings correspond to ISO 104/DIN 711. The dimensional and shape tolerances correspond to tolerance class PN, according to DIN 620-3.

 Axial ball bearings can be used for operating temperatures from –30 °C to +150 °C limited by lubricant.

Characteristics:

  • Manufacturer/Distributor: FAG
  • Reference: 51410 FAG
  • Material: Steel
  • Dynamic load capacity, axial (Cr) : 137000N
  • Static load capacity, axial (Cor) : 255000N
  • Fatigue load limit, axial (Cur) : 11400N
  • Limiting rotation speed (nG): 2800 1/min
  • Weight: 1.81 Kg

Dimensions:
  • Hole diameter (d): 50mm
  • Outer diameter (D): 110mm
  • Width, overall (T): 43mm
  • Housing ring hole diameter (D1): 52mm
  • Shaft ring lip diameter (d1): 110mm
  • Minimum chamfer measurements (r): 1.5mm
51100-esq

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
