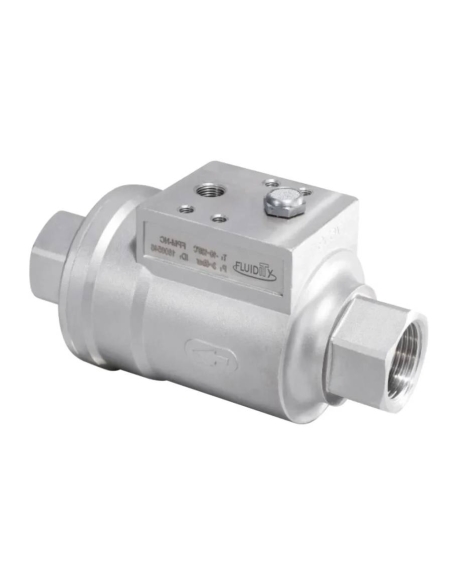

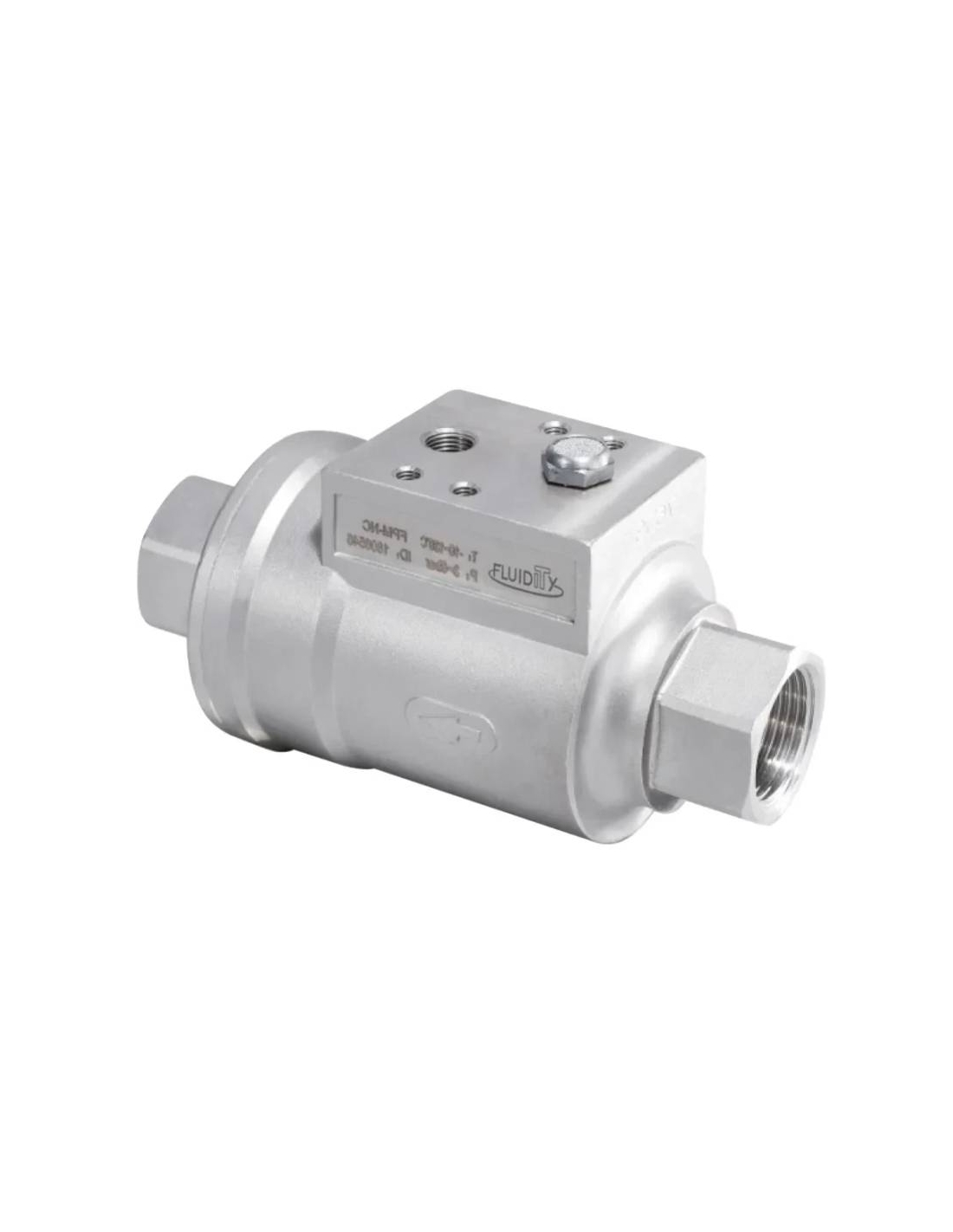

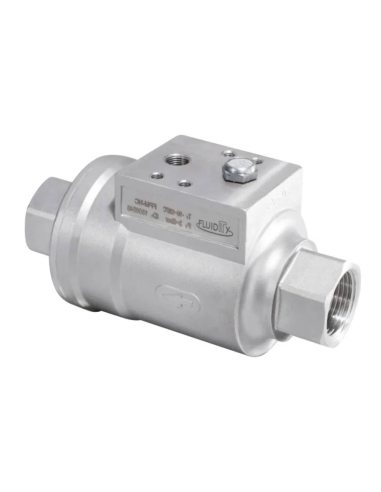

Coaxial shut-off valve 1 1/2 NC pneumatic actuated - Aignep

Name: Coaxial shut-off valve 1 1/2 NC pneumatic actuated - Aignep
Brand: Aignep
SKU: X7FXG140V0
Price: 350.37 EUR
Availability: BackOrder

€350.37 Tax included

€289.56 tax excl.

X7FXG140V0

Coaxial shut-off valve, with 1"1/2 female thread. Shut-off valve of simple effect, normally closed (NC), with actuation by pneumatic pressure. This valve allows the shut-off or passage of pressurized air through the valve depending on the presence of pneumatic pressure at the inlet of the control port. The design of the connection sockets is designed to mount on the body of this valve, solenoid valves or Namur type valves.

The main advantages of this model of valves over the classic valves with actuator are:

Lower cost
Reduced dimensions
In applications of simple effect, the application is safe and guaranteed with a lower force

Series: X7F
Ordering number: X7FXG140V0

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Coaxial shut-off valve, with 1"1/2 female thread. Shut-off valve simple effect, normally closed (NC), with actuation by pneumatic pressure. This valve allows the shut-off or passage of pressurized air through the valve depending on the presence of pneumatic pressure at the inlet of the control port, with a reduced flow loss due to the total passage. The operation is independent of the main circuit pressure and is compatible with many fluids, pressures and temperatures.

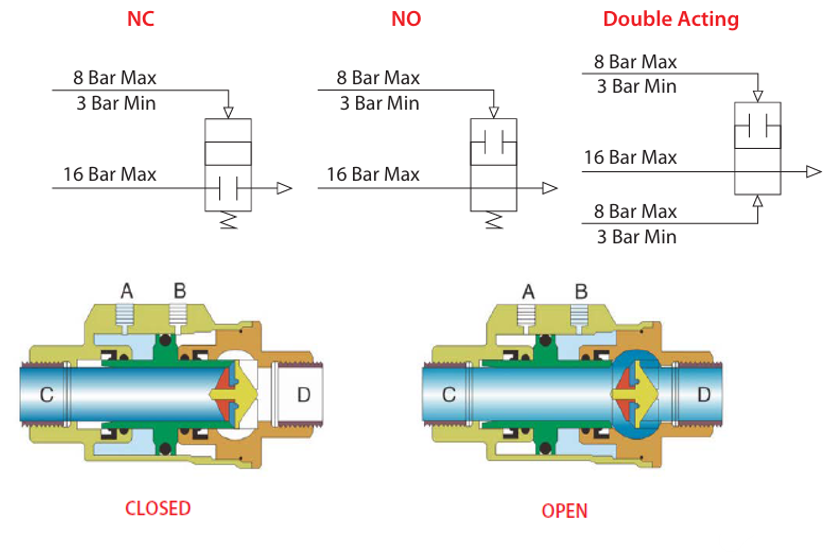

X7F_FUNCIONAMIENTO

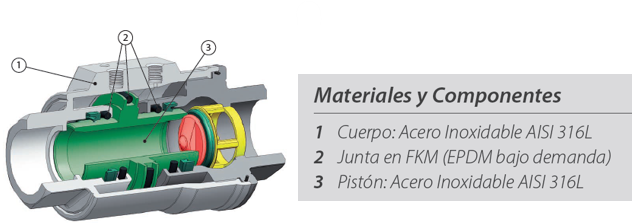

The main applications of this valve model are in compressed air and instrumentation installations, automotive and industrial water circuits. The design of the connection sockets is designed to mount on the body of this valve, solenoid valves or Namur type valves X7F_MATERIALES

The main advantages are:

Reduced flow loss due to full bore
Operation independent of the main circuit pressure

Features of the shut-off valve:

Manufacturer: Aignep
Part number: X7FXG140V0
Thread size: G 1"1/2
Operating pressure bar: -0,99 ÷ 16
Control pressure bar: 3 min ÷ 5 max
Operating temperature °C: 0 ÷ +80 (-20 ºC with dry air)
Temperature of the intercepted fluid: -20°C + 150°C
Fluid: Fluids in general, no steam
Body: Stainless steel AISI 316L
Seals: FKM

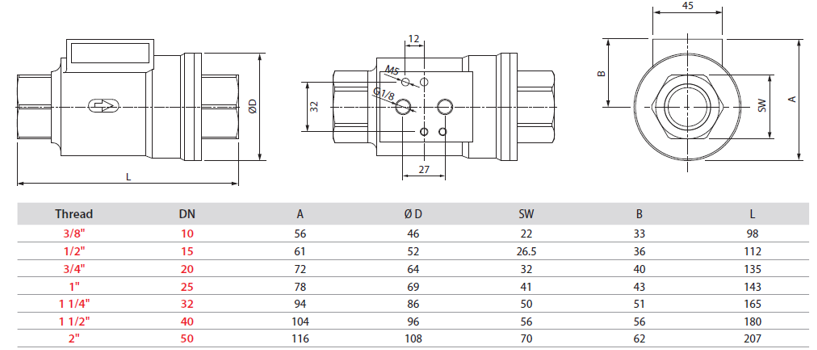

Dimensions

Material for professional use, install in compliance with the regulations in force at the place of installation.

fucntion series catalog

Download (8.93MB)

Catalogo Fluidity-X7F

Download (5.91MB)
