Safety valve overpressure 1 12 Bar - Metal Work

Name: Safety valve overpressure 1 12 Bar - Metal Work
Brand: Metal Work
SKU: VS112APED4
Price: 45.5928 EUR
Availability: InStock

€45.59 Tax included

€37.68 tax excl.

Overpressure safety valve for the relief of pneumatic circuits and compressors. The valve is supplied sealed with its corresponding certificate.

Manufactured according to the MIE-AP17 regulation of the precision devices regulation, being built by spring and total lift seat.

Reference: VS112APED4

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Overpressure valve with 1" thread and adjusted to 12 bars. To avoid overpressures in the circuits in which it is installed or on compressors.

The valve is manufactured according to the MIE-AP17 standard of the regulation of precision devices, being built by spring, total lifting seat and precious to the indicated working pressure.

The valve is supplied with its corresponding certificate.

specifications:

Reference: VSN 112 (VSN 2512)
Connecting thread: G 1".
Adjustment pressure: 12 Bar.
Overpressure: +10% of the adjustment pressure.
Maximum pressure: 40 bar.
Nominal diameter (DN): 25mm.
Flow rate: 11250 l/min.

For other sizes or adjustment pressures consult.

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab

Overpressure valve

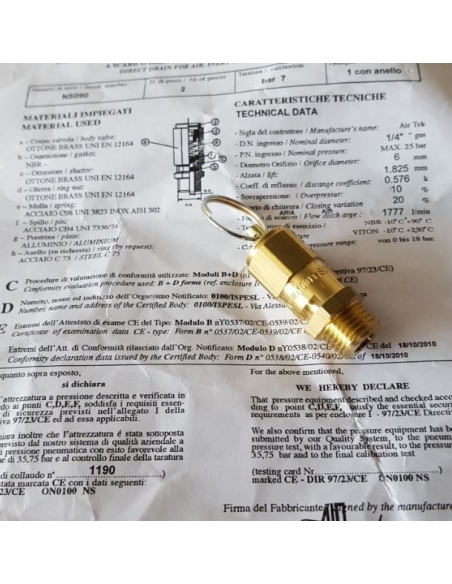

Certificate Overpressure safety valve

Download (196.34KB)

valve 1_4

Overpressure Safety Valve Tab

Download (86.17KB)
