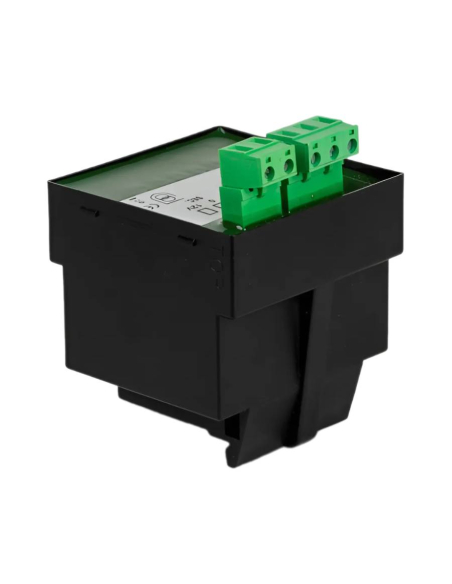

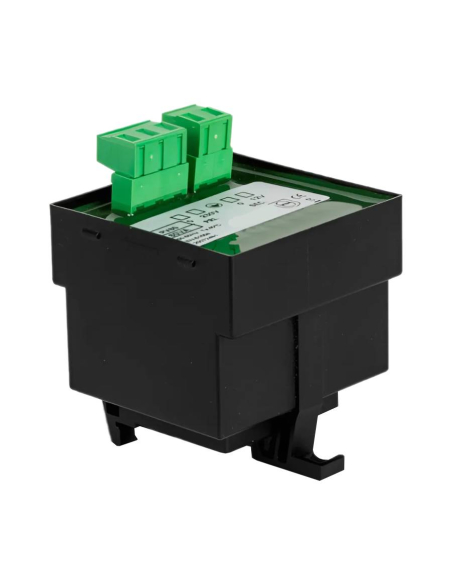

Transformer specially designed to supply power to spotlights in swimming pools, fountains, gardens and wet areas. Enclosure with IP20 polymer box, encapsulated in epoxy resin. Equipped with electrostatic screen between primary and secondary. Equipped with DIN rail mounting bracket.
The epoxy resin encapsulation provides the transformer with a longer lifespan, while making it suitable for corrosive environments and providing greater protection against electrodynamic stress and vibrations. The electrostatic screen it has allows noise reduction in those occasions where it is present.
NOTE: This transformer does not have sockets for adjusting the distance to the spotlight. The cable section must be oversized depending on the distance between the transformer and the spotlight to avoid voltage drops.
Technical characteristics:
- Series: PV
- Reference: PV100
- Input voltage: 230Vac
- Output voltage: 12Vac
- Power: 100VA
- Thermal class windings: HC (200ºC)
- Thermal insulation class: B (130ºC)
- Electrostatic screen between windings
- Frequency: 50/60 Hz
- Insulation voltage: 4kV
- Room temperature:
- Working altitude:
- Envelope: Epoxy Resin
- Protection: IP-20
- Fireproof: UL 94-HB
- Standard: EN 61558-2-6
The transformer is supplied without any type of overload protection; it is mandatory to install this to avoid overloading the transformer.
The power and intensity indicated are apparent, the active intensity provided by the transformer will depend on the power factor of the connected load.
Professional use material, install in compliance with the regulations in force at the installation site.
