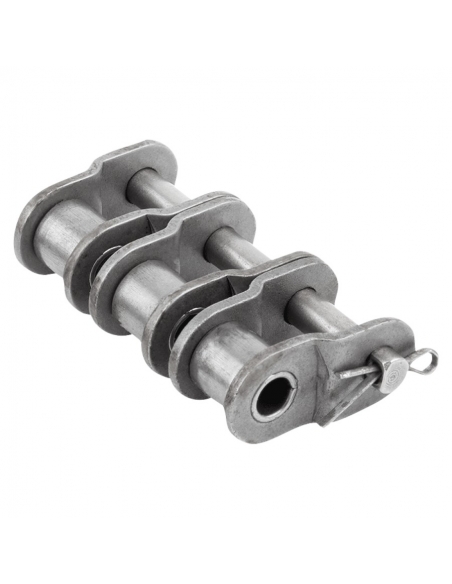

Triple chain bend rollers 24B-3 ISO

€31.90 Tax included

26.36 tax excl.

AC24B3ISO

Triple angled roller chain links for triple chain type 24B-3 according to ISO standard

Part no.: 57470205


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!
Privacy
Shipments
Returns


Triple angled links for roller chain connection of the triple chain type 24B-3 according to ISO standard

Manufacturer: ISB
Order No.: 57470205

An angled link is used when an odd number of chain links is required. It is the combination of an inner link and an outer link.

The pin and two links are adjusted by sliding. The fatigue strength is 35 % lower than that of the chain itself.

The use of an angled link does not require the use of a straight link.


Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Triple step roller chain 31.75 1 1/4 20B-3 DIN 8187 Tsubaki - ADAJUSA
Roller chains European standard ISO DIN 8187

Triple step roller chain 38.10 1 1/2 24B-3 DIN 8187 - Tsubaki

Tsubaki
CADERS24B3
Starting from €3,632.18 (€600.36 tax excl.)
Chain of triple standard rollers according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: CADE-RS 24B-3:TSU Pitch: 38.10 mm - 1 1/2" Roller diameter: 25.40 mmPrice per meter. Sale exclusively by packaging of 5 meters. Representative image for...
View
Triple roller chain DIN 8187 - ADAJUSA
Roller chains European standard ISO DIN 8187

Triple pitch roller chain 38.10 1 1/2 24B-3 DIN 8187

ISB-Cadenas
CAD24B-3
Starting from €273.54 (€226.07 tax excl.)
Standard triple roller chain according to European standard ISO DIN 8187, up to 98% efficiency (*), very light and compact which allows installation in very limited spaces. Part number: 57250205 Pitch: 38.10 mm - 1 1/2" Roller diameter: 25.40 mmPrice per meter. Sold exclusively in packs of 5 meters. Representative image for illustrative purposes,...
View

16 other products in the same category:

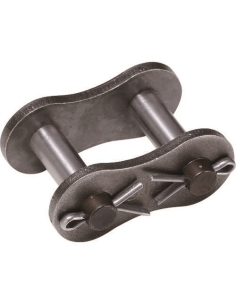

Union roller chain simple 08B-1 ISO - Tsubaki - ADAJUSA
