Single step roller chain 25.40 16B-1 DIN 8187 Tsubaki - ADAJUSA
Single step roller chain 25.40 16B-1 DIN 8187 Tsubaki - ADAJUSA

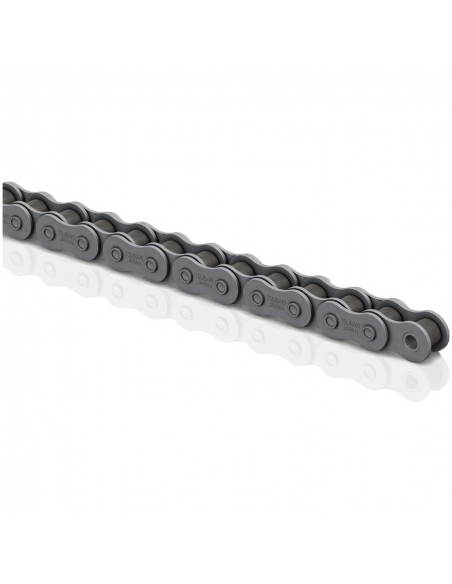

Single step roller chain 25.40 1 16B-1 DIN 8187 - Tsubaki

€423.92 Tax included

350.35 tax excl.

CADERS16B-1

Simple roller chain standard according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces.

Reference: CADE-RS 16B-1:TSU

Pitch: 25.40 mm - 1"

Roller diameter: 15.88 mm

Price per meter. Sale exclusively by packaging of multiples of 5 meters.


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Roller chain according to the requirements of ISO DIN 8187. Made in Japan.

A roller chain is a series of bearings connected by meshes (plates), great versatility and durability in environments with a lot of dust, oil, water, greases, etc ... Roller chains develop a synchronous power transmission, without slippage, and the effectiveness of the transmission does not depend on the transmitted mechanical stress.

They can be used in a wide range of industrial and general applications, motors, compressors, printing presses, conveyors, agriculture....


Features:
  • Manufacturer: Tsubaki
  • Reference: CADE-RS 16B-1:TSU
  • Exclusive sale for packaging of 5 meters of chain.
  • Pitch (P): 25.40mm
  • Roller diameter (d1): 15.88 mm (max)
  • Internal width (b1): 17.02 mm (min)
  • Shaft diameter (d2): 8.28 mm (max)
  • Length of the union
    • (L): 36.1.20 mm (max)
    • (Lc): 41.50 mm (max)
  • Mesh height (h2): 21.08 mm
  • Mesh thickness: (t/T): 4.093/3.10 mm
  • Minimum breaking load (Q ISO/DIN) 60 kN
  • Average breaking load (Q0): 71 kN
  • Approximate weight: 2.71 kg/m

(*) Under correct lubrication conditions.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
