Double sprockets for roller chain 1 1/2 x 1 24B-2 Z40 DIN8187 - ISO R606
Double sprockets for roller chain 1 1/2 x 1 24B-2 Z40 DIN8187 - ISO R606

Double sprockets for roller chain 1 1/2 x 1 24B-2 Z40 DIN8187 - ISO R606

€1,813.81 Tax included

€1,499.02 tax excl.

Double sprocket for double roller chain model 24B-2 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z40 1.1/2 DOUBLE

Teeth: 40

ISO: 24B-2

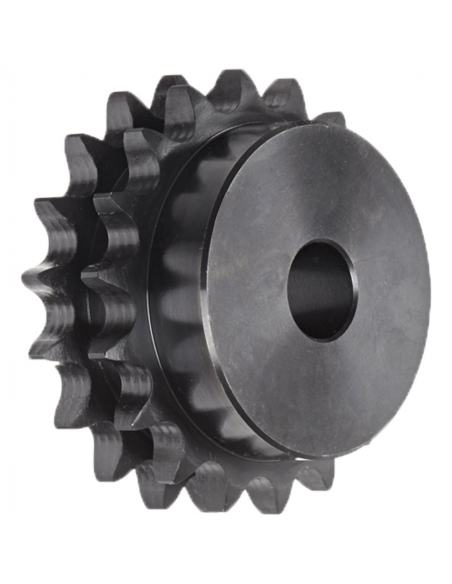

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Product customization

Don't forget to save your customization to be able to add to cart
  • optional 250 char. max

No queries yet, leave the first!
Privacy
Shipments
Returns


Double sprockets for double roller chains 24B-2 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z40 1.1/2 DOUBLE



Characteristic:

  • 1"1/2 x 1mm ISO 24B-2
  • 38.1 x 25.4mm
  • Teeth: 40
  • Tooth radius (r): 38 mm
  • Curved area width (C): 4 mm
  • Tooth width (h 2 ): 72 mm
  • Outer Diameter (OD): 500.6
  • Primitive diameter (Dp): 485.62
  • Diameter (d): 170
  • Hub diameter (D): 30 ( Unmachined shaft diameter)
  • Disc width (H): 100


Material for professional use, install in compliance with the regulations in force at the place of installation.
