Roller chain sprockets 1 1/2 x 1 24B-1 Z8 DIN8187 - ISO R606

€36.46 Tax included

€30.13 tax excl.

Single pinion for single roller chain model 24B-1 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z8 1.1/2

Teeth: 8

ISO: 24B-1

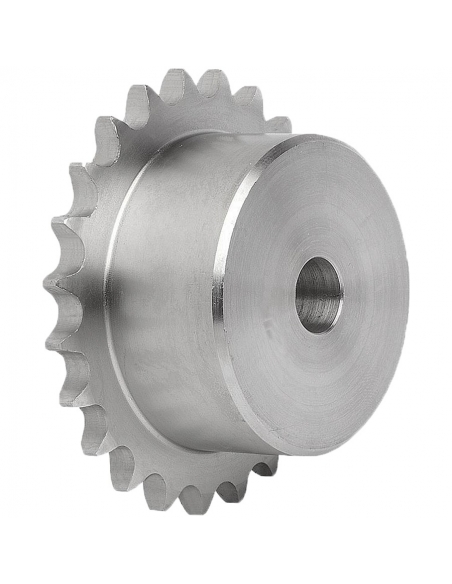

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for single roller chains 24B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z8 1.1/2


Characteristics:

  • 1" 1/2 x 1" mm ISO 24B-1
  • 38.1 x 25.4 mm
  • Teeth: 8
  • Roller diameter: 38.1 mm
  • Inner width: 25.4 mm
  • Roller diameter: 19.05 mm
  • Tooth radius (r): 38 mm
  • Curved area width (C): 4 mm
  • Tooth width (h1): 24.1 mm
  • Outer Diameter (S): 115.0
  • Primitive diameter (Dp): 99.55
  • Center diameter (d): 58
  • Hub diameter (D): 20 (Non-mechanical shaft diameter)
  • Width (H): 45


Material for professional use, install in compliance with the regulations in force at the place of installation.
