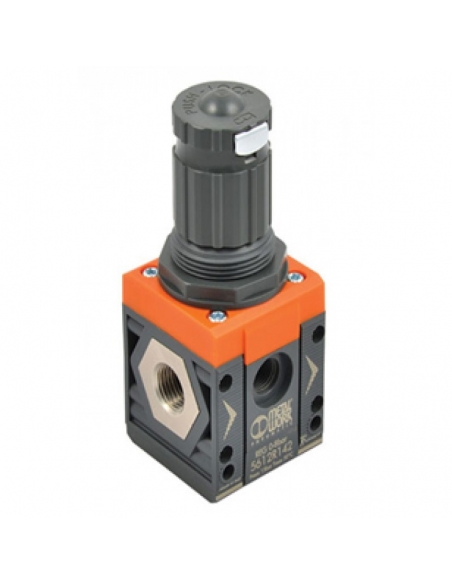

Pressure regulator 1/4 0-2 bar technopolymer Syntesi - Metal Work

1/4 0-2 pressure regulator , body made of high resistance technopolymer. It allows stability of the outlet pressure at the preset pressure starting from an equal or higher inlet pressure. Possibility of fixing through side holes. Padlock locking system.

It admits very diverse types of assembly, with the appropriate accessories.

Technical characteristics.

• Manufacturer: Metal Work
• Reference: 5612R102 - REG SY1 1/4 02
• Regulator Size: Size 1
• Threaded connection size: 1/4".
• Regulation range: 0-2 bar .
• Maximum inlet pressure: 15 bar .
• Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 1600
• Flow rate at 6.3 bar (0.63 MPa, 91 psi) ∆P 1 bar (0.1 MPa, 14 psi) (Nl/min): 2800
• Relieving discharge flow rate, at 6.3 bar (0.63 MPa; 91 psi) (Nl/min): 70
• Fluid: Air filtering, with or without lubrication.
• Wall fixing screws: M4x40.
• Pressure gauge connection: 1/8".
• temperature at 10 bar ; 1MPa; 145 psi ( °C): 10 ÷ +50
• Included: Full discharge step by zeroing inlet pressure and lockable knob.
• Inlet pressure compensation: Included, through balanced valve
• Flow rate of additional air intakes at 6.3 bar (Nl/min): 500

For other models or sizes consult.

Mounting accessories not included.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
