3/8 female quick safety plug European profile – Aignep
€13.36
Tax included
€11.04 tax excl.
Quick coupling with G 3/8 female thread with safety system , compatible with compressed air systems. European profile plug with safety depressurization system on disconnection, ensuring user safety during operation. Compact and ergonomic design.
Series: 660
Reference: 662 3/8
.png?1705485426743)

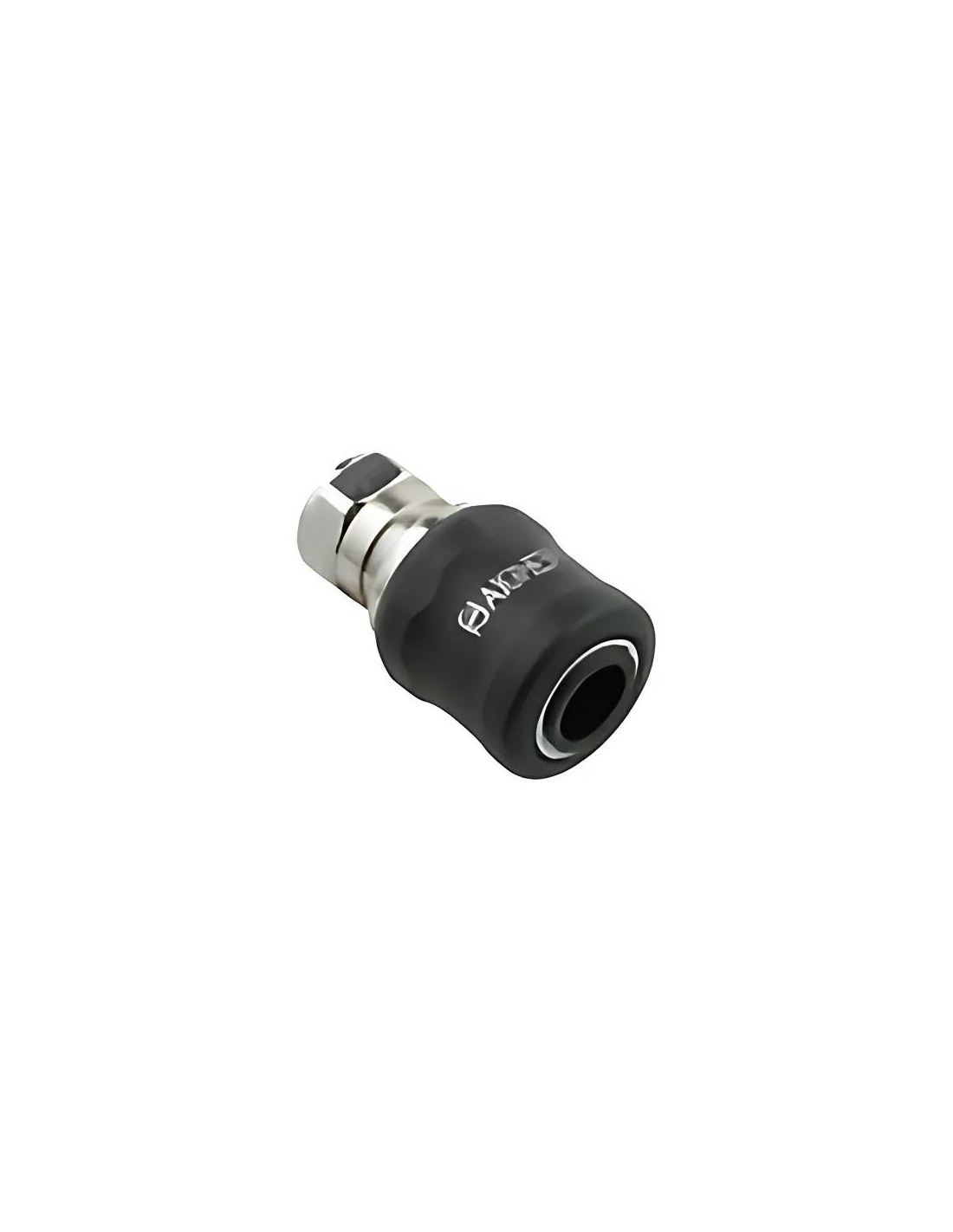

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
European profile quick connector with safety system, G 3/8 female thread. This type of connector provides a quick and easy way to connect and disconnect tools, machinery and pneumatic elements in the installed distribution network, avoiding air losses between the connector and the tool. These connectors are widely used in applications where frequent and quick connections and disconnections are required, such as industrial installations, workshops or garages.
It has a disconnection system with safety depressurization that guarantees the safety of the operators during its use, by having a system that prevents the installation from emptying once the connection element has been disconnected. This type of plug provides a high flow rate and a low pressure drop.
The quick coupling body features a compact and ergonomic design. Made of technopolymer, O-ring in NBR, spring and ball in stainless steel and terminal in nickel-plated brass. Model compatible with European profile connections.
Compatible with the following Aignep brand adapter series: 261, 262, 263, 264, 265, 266, 267, 268, 261AC, 262AC, 265AC.
Technical characteristics:
- Manufacturer: Aignep
- Reference: 662 3/8
- Thread type: G 3/8 female
- Profile: European
- Compatible fluid: Compressed air
- Diameter of passage (DN): 7.8 mm
- Working pressure: -0.99 to 15 bar
- Working temperature range: -20ºC to +80ºC
- Flow rate at 6 bar ΔP 1 bar : 1300 Nl/min
- Flow rate at 6 bar ΔP 0.5 bar : 1050 Nl/min
- Flow rate at 6 bar ΔP 0 bar : 1830 Nl/min (free exhaust)
Professional use material, install in compliance with the regulations in force at the installation site.
