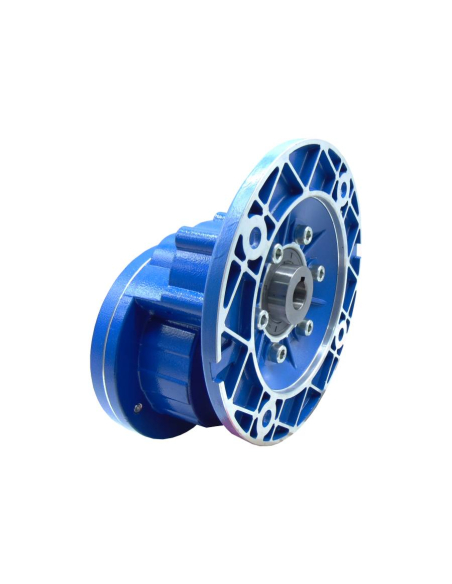

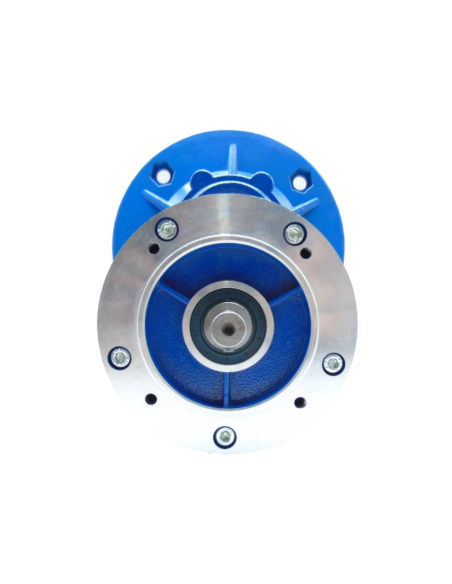

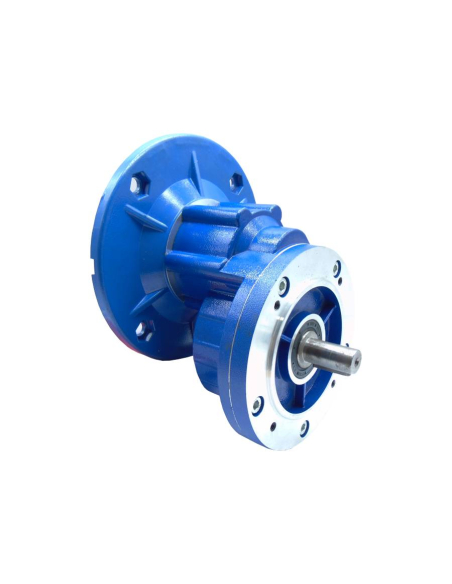

Pre-reducer size 80 - PC80B5-200/19

€146.98 Tax included

121.47 tax excl.

PC80B5-200/19
Pre-gearbox size 80 and reduction ratio 3. This pre-gearbox is inserted between the motor and the gearbox to increase the reduction ratio. It can be directly coupled to a gearbox with flange PAM 160/19 and to a motor with flange B5 200/19.


Part number: PC80B5-200/19


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns

Pre-reducer size 80 and reduction ratio 3. It is manufactured with a high quality aluminum alloy housing and steel gears. It can be mounted on any geared motor with flanges PAM. The pre-reducer is inserted between the motor and the gearbox.

The function of a pre-reducer is basically to multiply the reduction ratio of a gearbox.
The pre-reducer cannot be used directly as a gearbox, it can only be coupled to another gearbox. It must be verified that the flange and the shaft of the pre-reducer and reducer are compatible so that the coupling of both elements is possible.



Technical specifications
  • Manufacturer/Importer: Motorseg
  • Part number: PC80B5-200/19
  • Size: 80
  • Input flange (motor): 200/19
  • Output flange (gearbox) 160/19
  • Input shaft: diameter 19 hollow
  • Output shaft: diameter 19
  • Reduction ratio (i): 3
  • Color: Blue


Montaje Pre-reductores





Reducer and motor not included in the scope of supply





Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Salve volevo chiederle che tipo di olio va messo in questo pre-riduttore taglia 60..grazie
Answer
Oli sintetici o minerali con elevata viscosità e buona stabilità termica. Devono inoltre essere resistenti all'ossidazione e al deterioramento e compatibili con i materiali utilizzati nel riduttore.
Caratteristiche:
- Olio cambio 75 W80 ISO VG32

Ti auguro il meglio
ADAJUSA
Giuseppe on 10/28/2024 00:01:20
