Pulley V-belt SPA 500x2 slots taper T2517
Pulley V-belt SPA 500x2 slots taper T2517 - adajusa.es
Pulley V-belt SPA 500x2 slots taper T2517

Pulley V-belt SPA 500x2 slots taper T2517

€243.89 Tax included

€201.56 tax excl.

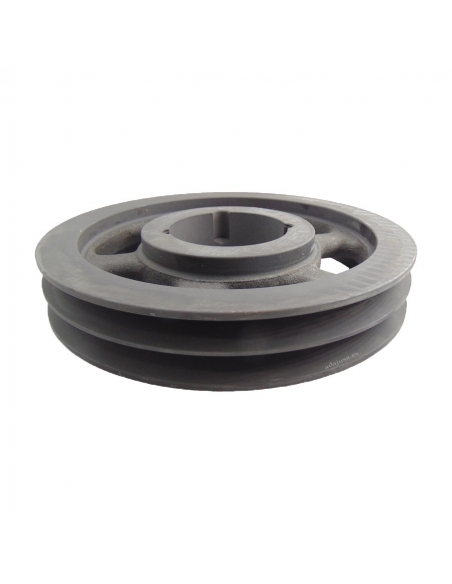

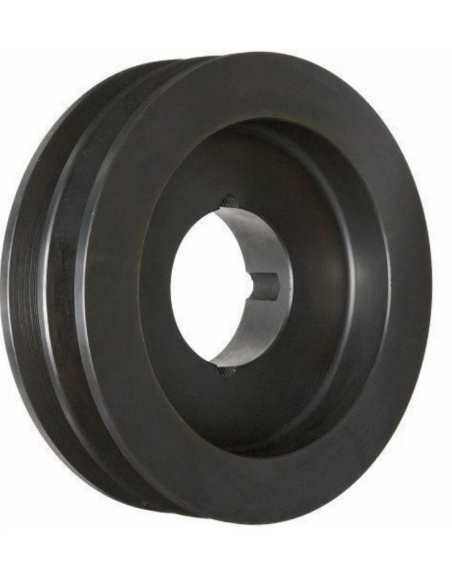

Pulley for trapezoidal belts Ø500mm, 2 slots. Machined for conical bushing - taper lock T2517. Made of cast steel and valid for all belts with profile in "V" type A and SPA. Manufactured according to ISO4183 - DIN2211.

  • Type of straps: Profile in "V" type A and SPA.
  • Diameter: 500mm.
  • number of strap slots: 2.
  • Taper: T2517.

Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pulley for trapezoidal belts profile in "V", for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183.

Machined trapezoid pulley for conical bushing "Taper Lock".

Specifications:

  • Type: trapezoid profile in "V".
  • Models: A and SPA.
  • Material: cast steel.
  • Primitive diameter: 450mm.
  • Number of slots: 2.
  • Type of conical bushing - taper: T2517
  • Manufacturing standard: DIN2211 - ISO4183.


Note: The taper (conical bushing) is not included in the supply.


Dimensions:

  • (Dp): 500
  • (Od): 505.5
  • (F): 35
  • (J): 525
  • (L): 45
  • (M): 10
  • (N): 125
  • Taper: 2517



Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

You might also like

Conical bushing - taper lock size 2517
Taper lock - Taper Bushings for pine nuts

Conical bushing - taper lock size 2517

Generico-TE
92R-T2517
1 review
€32.03 (€26.47 tax excl.)
Conical bushing, size 2517. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly.Reference: T.L 2517-0xx The bushings are supplied with the hole...

16 other products in the same category:

SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 63mm 1 slot for shaft diameter 14mm type SPA

Generico-TE
PLSPA631T1008-14
€21.40 (€17.69 tax excl.)
Pulley for V-belts Ø63mm, from 1 slot, with taper lock with 14mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 63mm Number of slots for belts: 1 Taper: center shaft diameter 14mm with 5mm key...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 90mm 3 slot for shaft diameter 38mm type SPA

Generico-TE
PLSPA903T1610-38
€45.64 (€37.72 tax excl.)
Pulley for V-belts Ø90mm, from 3 slot, with taper lock with 38mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 90 mm Number of slots for belts: 3 Taper: center shaft diameter of 38mm with 10mm key...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 95mm 3 slot for shaft diameter 28mm type SPA

Generico-TE
PLSPA953T1610-28
€47.58 (€39.32 tax excl.)
Pulley for V-belts Ø95mm, from 3 slot, with taper lock with 28mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 95 mm Number of slots for belts: 3 Taper: center shaft diameter of 28mm with 8mm key...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 132mm 4 slot for shaft diameter 19mm type SPA

Generico-TE
PLSPA1324T2517-19
€94.32 (€77.95 tax excl.)
Pulley for V-belts Ø132mm, from 4 slot, with taper lock with 19mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 132 mm Number of slots for belts: 4 Taper: center shaft diameter of 19mm with 6mm key...
SPB 140x6 V-belt pulley T2517 plug slot
Poles for power transmission

Pulley for trapezoidal SPB 630x6 plug slot T4040

Generico-TE
PSPB6306T4040
€1,006.55 (€831.86 tax excl.)
Pulley for trapezoidal belts Ø630mm, 6 grooves for belts. Machined for conical bushing - taper lock T4040. Made of cast steel and valid for all belts with profile in "V" type B and SPB. Manufactured according to ISO4183 - DIN2211. Reference: POLE-SPB-630X6-T4040 Type of straps: Profile in "V" type B and SPB. Diameter: 630 mm. number of strap slots:...
V-belt pulley 125mm 1 slot... V-belt pulley 125mm 1 slot... 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 125mm 1 slot for shaft diameter 19mm type SPA

Generico-TE
PLSPA1251T1610-19
€48.36 (€39.97 tax excl.)
Pulley for V-belts Ø125mm, from 1 slot, with taper lock with 19mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 125mm Number of slots for belts: 1 Taper: center shaft diameter 19mm with 6mm key...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
Poles for power transmission

V-belt pulley 150mm 1 slot for shaft diameter 14mm type SPZ

Generico-TE
PLSPZ1501T1610-14
€56.80 (€46.94 tax excl.)
Pulley for V-belts Ø150mm, from 1 slot, with taper lock with 14mm shaft diameter and keyway. Valid for all belts with "V" profile type Z and SPZ. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type Z and SPZ Pulley diameter (Dp): 150mm Number of slots for belts: 1 Taper: center shaft diameter 14mm with 5mm key...
V-belt pulley 190mm 1 slot... V-belt pulley 190mm 1 slot... 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 190mm 1 slot for shaft diameter 28mm type SPA

Generico-TE
PLSPA1901T1610-28
€68.11 (€56.29 tax excl.)
Pulley for V-belts Ø190mm, from 1 slot, with taper lock with 28mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 190mm Number of slots for belts: 1 Taper: center shaft diameter 28mm with 8mm key...
V-belt pulley 90mm 3 slot... V-belt pulley 90mm 3 slot... 2
  • Pack
Poles for power transmission

V-belt pulley 90mm 3 slot for shaft diameter 19mm type SPZ

Generico-TE
PLSPZ903T1610-19
€42.54 (€35.16 tax excl.)
Pulley for V-belts Ø90mm, from 3 slot, with taper lock with 19mm shaft diameter and keyway. Valid for all belts with "V" profile type Z and SPZ. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type Z and SPZ Pulley diameter (Dp): 90mm Number of slots for belts: 3 Taper: center shaft diameter 19mm with 6mm key Representative...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 150mm 1 slot for shaft diameter 28mm type SPB

Generico-TE
PLSPB1501T1610-28
€67.07 (€55.43 tax excl.)
Pulley for V-belts Ø150mm, from 1 slot, with taper lock with 28mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 150mm Number of slots for belts: 1 Taper: 28mm center shaft diameter with 8mm key...
V-belt pulley 355mm 1 slot... V-belt pulley 355mm 1 slot... 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 355mm 1 slot for shaft diameter 14mm type SPA

Generico-TE
PLSPA3551T2012-14
€143.84 (€118.88 tax excl.)
Pulley for V-belts Ø355mm, from 1 slot, with taper lock with 14mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 355mm Number of slots for belts: 1 Taper: 14mm center shaft diameter with 5mm key...

Customers who bought this product also bought:

SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 106mm 2 slot for shaft diameter 38mm type SPA

PLSPA1062T1610-38
€48.94 (€40.45 tax excl.)
Pulley for V-belts Ø106mm, from 2 slot, with taper lock with 38mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 106mm Number of slots for belts: 2 Taper: 38mm center shaft diameter with 10mm keyway...
Conical bushing - taper lock size 2517
Taper lock - Taper Bushings for pine nuts

Conical bushing - taper lock size 2517

Generico-TE
92R-T2517
1 review
€32.03 (€26.47 tax excl.)
Conical bushing, size 2517. The conical bushings are the most suitable and practical system for the assembly of sprockets, pulleys, and transmission elements on axles, without having to use special tools or resort to special machining, allowing a great saving of time and ease of assembly.Reference: T.L 2517-0xx The bushings are supplied with the hole...
Simple roller chain ISO DIN 8187 ISB - ADAJUSA
Roller chains European standard ISO DIN 8187

Single step roller chain 19.05 3/4 12B-1 DIN 8187

CAD12B-1
1 review
Starting from €12.08 (€9.98 tax excl.)
Simple roller chain standard according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: 57250030  Step: 19.05- 3/4" Roller diameter: 12.07 mmPrice per meter. Sale exclusively by packaging of multiples of 5 meters.  Representative image...
View

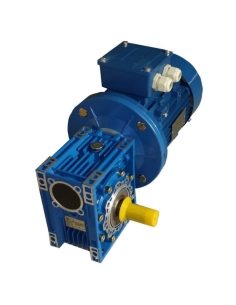

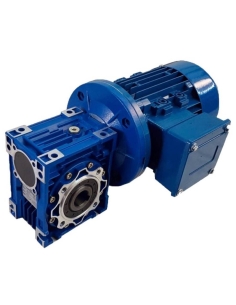

Three-phase gear motor 0.37kW 0.5HP 230/400Vac 1500 rpm ratio 50 T50 (28rpm) Three-phase gear motor 0.37kW 0.5HP 230/400Vac 1500 rpm ratio 50 T50 (28rpm) 2
