Pulley SPC 315x4 V-belt T3535 taper slots

€491.09 Tax included

€405.86 tax excl.

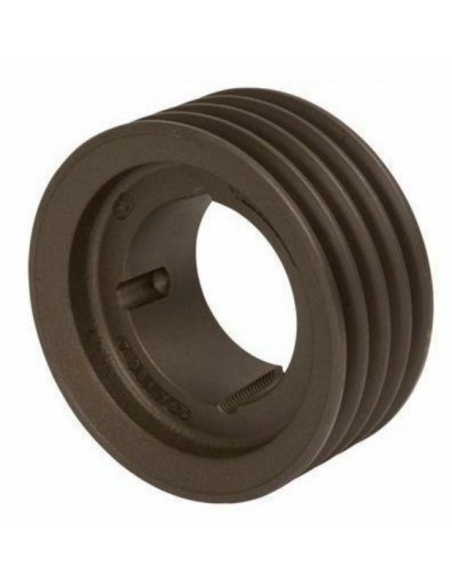

Pulley for trapeze straps, 315mm, 4 slots. Machined for tapered bushing - T3535 lock taper. Made of cast steel and valid for all belts with "V" type C and SPC profile. Manufactured according to ISO4183 - DIN2211.

  • Belt type: "V" type C and SPC profile.
  • Diameter: 315mm.
  • Number of belt slots: 4.
  • Taper: T3535.

Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

No queries yet, leave the first!


Pulley for trapezoidal belts profile in "V", for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183.

Machined trapezoid pulley for conical bushing "Taper Lock".

Specifications:

  • Type: trapezoid profile in "V".
  • Models: C and SPC.
  • Material: cast steel.
  • Primitive diameter: 315mm.
  • Number of slots: 4.
  • Type of conical bushing - taper: T3535
  • Manufacturing standard: DIN2211 - ISO4183.


Note: The taper (conical bushing) is not included in the supply.

Dimensions:

  • (Dp): 315
  • (Od): 324.5
  • (E): 20
  • (F): 111
  • (J): 259
  • (K): 11
  • (L): 89
  • (M): 11
  • (N): 175
  • Taper: 3535



Material for professional use, install in compliance with the regulations in force at the place of installation.
