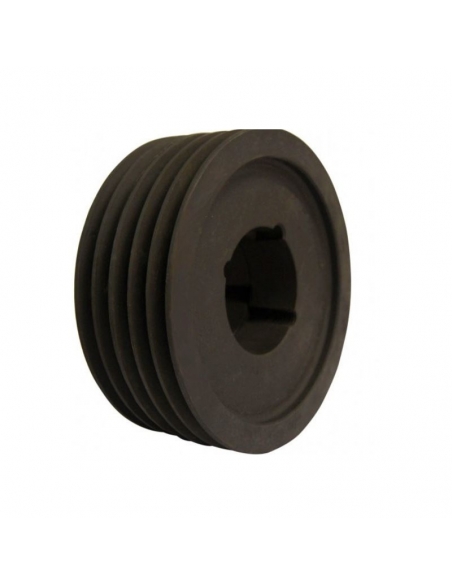

V-belt pulley SPB 140x4 taper groove T2517 - ADAJUSA
V-belt pulley SPB 140x4 taper groove T2517 - ADAJUSA

pulley for trapezoidal SPB 140x4 Plug Slot T2517

€89.70 Tax included

€74.13 tax excl.

Pulley for V-belts Ø140mm, 4 grooves for belts. Machined for conical bushing - taper lock T2517. Made of cast steel and valid for all "V" type B and SPB belts. Manufactured according to ISO4183 - DIN2211.

Reference: POLE-SPB-140X4-T2517

  • Type of belts: Profile in "V" type B and SPB.
  • Diameter: 140mm.
  • number of strap slots: 4
  • Taper: T2517

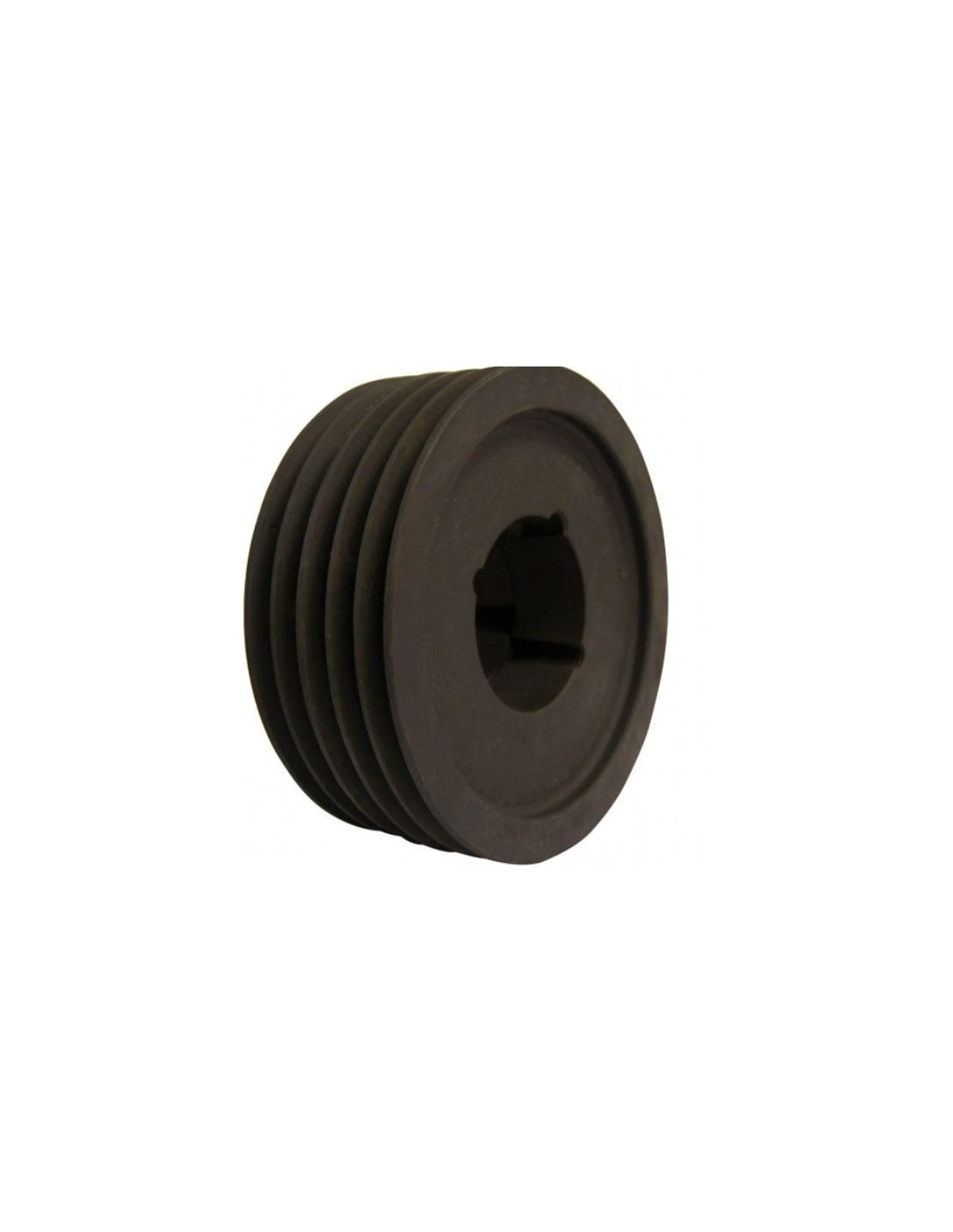

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


V-shaped pulley for trapezoidal belts, for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183 standards.

Machined trapezoidal pulley for "Taper Lock" conical bushing.

Technical characteristics:

  • Type: trapezoidal "V" profile.
  • Models: B and SPB.
  • Material: cast steel.
  • Primitive diameter: 140mm.
  • Number of slots: 4
  • Tapered Bushing Type - Taper: T2517
  • Manufacturing standard: DIN2211 - ISO4183.


Note: The taper (conical bushing) is not included in the supply.


Dimensions:

  • (Dp): 140
  • (Od): 147
  • (F): 82
  • (J): 100
  • (K): 18.5
  • (L): 45
  • (M): 18.5
  • Taper: 2517



Material for professional use, install in compliance with the regulations in force at the place of installation.
