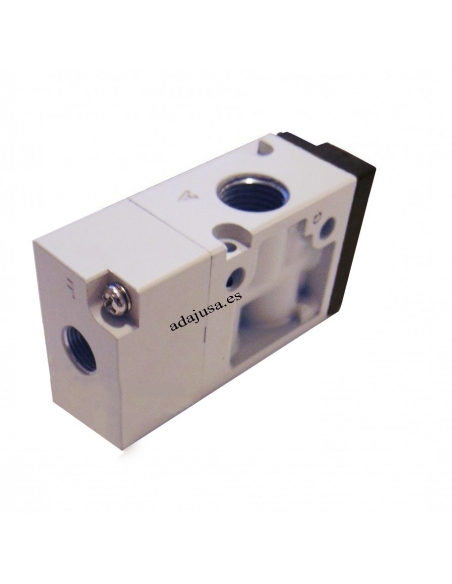

1/4 3-way monostable valve (NO) - Mindman - ADAJUSA

Valve 1/4 3-way monostable NO - Mindman

Name: Valve 1/4 3-way monostable NO - Mindman
Brand: Mindman
SKU: MVAA2203A1NO
Price: 24.0185 EUR
Availability: PreOrder

Delivery in 3 days

€24.02 Tax included

€19.85 tax excl.

Pneumatic valve 1/4 3 ways monostable normally open (NO).

Reference: 281MVAA2203A1NO

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Monostable 1/4 3-way pneumatic valve, for general and industrial applications.

Specifications:

Manufacturer: Mindman.
Manufacturer reference: MVAA-220-3A1-NO.
Valve type: 1/4-3/2 Monostable.
Thread type: G 1/4".
number of tracks: 3.
Positions: 2.
Fluid type: Pressurized air, with or without lubrication.
Working pressure: 0÷8 Kgr/cm².
Piloting pressure: 1.5÷8 Kgr/cm².
Maximum pressure: 10 Kgr/cm².
Effective pitch diameter: 18 mm2.
Working temperature: -5 to 60ºC.
Material: Aluminum and steel.

Dimensiones válvulas 1/4 3 vías monoestables mindman

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

MVAA-220 valve data sheet

Download (195.2KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Valve 1/4 3-way monostable closed NC - Mindman

Mindman

MVAA2203A1NC

€25.68 (€21.22 tax excl.)

Pneumatic valve 1/4 3 ways monostable standardally closed (NC). Reference: 281MVAA2203A1NCRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1/4 3-way bi-stable valve - Mindman - ADAJUSA

1/4 3-way bi-stable valve - Mindman - ADAJUSA 2

Delivery in 3 days

Valves

Valve 1/4 3-way bi-stable - Mindman

Mindman

MVAA2203A2

€27.85 (€23.02 tax excl.)

Pneumatic valve 1/4 3 ways bistable. Reference: 281MVAA2203A2Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Valves

Valve 1/4 5-way monostable - Mindman

Mindman

MVAA2204A1

€27.31 (€22.57 tax excl.)

Pneumatic valve 1/4 5 ways monostable. Reference: 281MVAA2204A1Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Valves

Valve 1/4 5-way bi-stable - Mindman

Mindman

MVAA2204A2

€27.85 (€23.02 tax excl.)

Pneumatic valve1/4 5 ways bistable.Reference: 281MVAA2204A2Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Solenoid valves 1/8

Adapter 1/8 - 1/4 - Metal Work

Metal Work

226006600

€16.72 (€13.82 tax excl.)

Size 1/8" - 1/4" adapter for valves and solenoid valves series 70 PNV-SOV and BASIC seriesReference: 0226006600 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic valves 1/4

Valve 1/4 5/3 pressure centers- Metal Work

Metal Work

7020012300

€54.41 (€44.97 tax excl.)

Pneumatic valve of 1/4 5 ways 3 positions centers in pressure, pneumatic control, metal body. For control of double effect cylinders. Reference: 7020012300 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic valves 1/4

Pneumatic valve 1/4 5 way 3 positions pressure centers - Aignep

Aignep

01VP07PC03

€43.03 (€35.56 tax excl.)

Valve 1/4 5 way 3 positions, pressure centers. Anodized aluminum body, NBR seals.With G 1/4" threads. Part No.: 01V P0 7 PC 03 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double 1/8 3-way monostable pneumatic valve normally open NO Metal Work - ADAJUSA

Pneumatic valves 1/4

Double pneumatic valve 1/4 3 ways monostable open NO - Metal Work

Metal Work

7020013200

€77.55 (€64.09 tax excl.)

Double pneumatic valve 1/4 3 ways monostable normally open (NO). Reference: 7020013200 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic valves 1/4

Pneumatic valve 1/4 3 ways bistable - Metal Work

Metal Work

7020010100

€45.41 (€37.53 tax excl.)

Pneumatic valve 1/4 3 ways bistable. Reference: 7020010100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic valves 1/4

Pneumatic valve 1/4 3 way monostable open NO - Aignep

Aignep

01VP03NO03

€32.40 (€26.78 tax excl.)

Valve 1/4 3 way monostable normally open (NO), pneumatic pilot and spring return, with G 1/4" threads. Anodized aluminum body, NBR seals. Part no.: 01V P0 3 NO 03 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1/4 5-way monostable valve - Metal Work - ADAJUSA

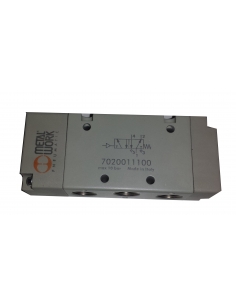

1/4 5-way monostable valve - Metal Work - ADAJUSA 2
