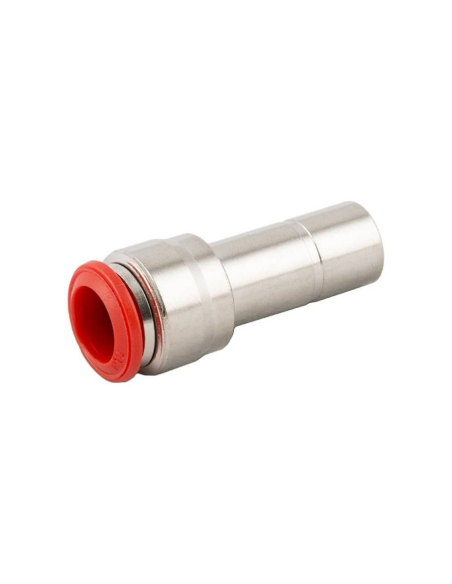

Diameter reduction from 10mm to 6mm Series 50000 - Aignep
€1.34
Tax included
€1.11 tax excl.
Pneumatic reduction fitting from diameters 10mm to 6mm, nickel-plated brass body. A very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .
Series: 50000
Reference: 50700 10 6
Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Pneumatic reduction fitting from diameters 10mm to 6mm, made of nickel-plated brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; The clamping spring clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the tube fitting. In the fittings, the fitting ring has slots for the screwdriver to facilitate disconnection in applications that are inaccessible to the fingers.
Technical characteristics:
- Manufacturer: Aignep .
- Reference: 50700 10 6
- Largest diameter of the tube: 10mm.
- Minor tube diameter: 6mm.
- Fluid: Vacuum - Compressed air.
- Operating pressure: -0.99 bar to 20 bar .
- Material: Nickel-plated brass.
- retention gasket: NBR.
- Tube extractor ring: acetal resin
- Clamping spring: stainless steel.
- Working temperature: -20ºC to +80ºC.
- Thread regulations:
- Conical gas conforming to ISO 7.1, BS 21, DIN 2999
- Cylindrical gas conforming to ISO 228 Class A
- ISO R/262 compliant metric
Material for professional use, install in compliance with the regulations in force at the installation site.
