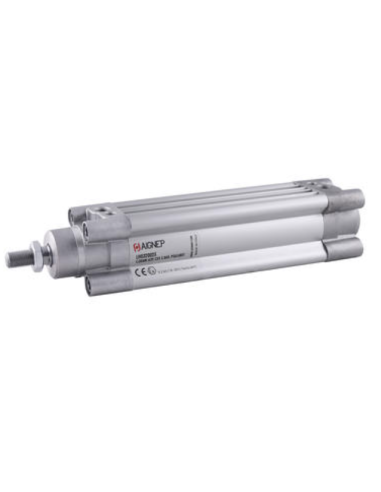

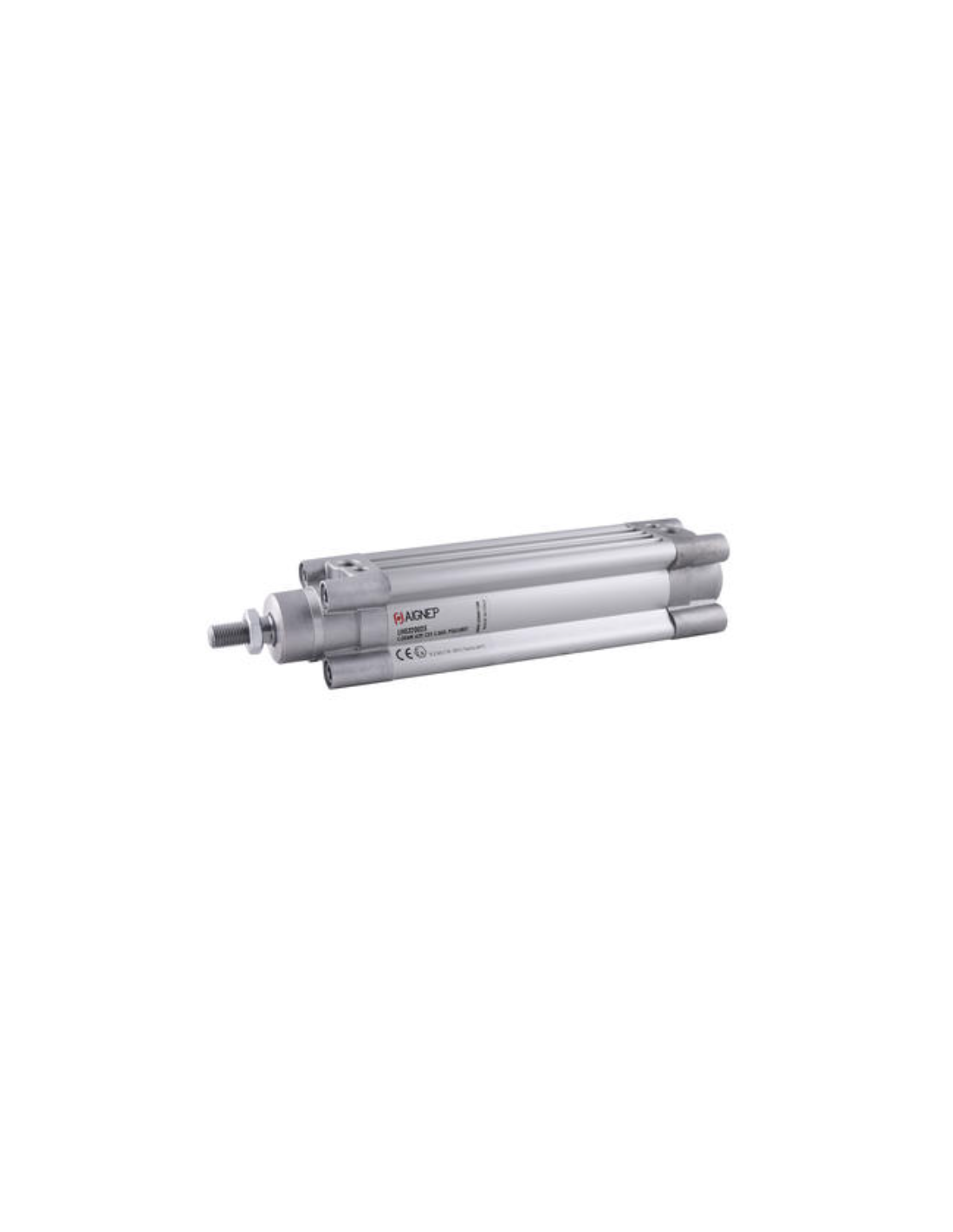

Pneumatic cylinder 80x150 double-acting LH0800150- Aignep
Pneumatic cylinder 80x150 double-acting LH0800150- Aignep

Pneumatic cylinder 80x150 double-acting LH0800150- Aignep

€130.86 Tax included

€108.15 tax excl.

Pneumatic cylinder Ø80 stroke 150mm, double magnetic effect and with pneumatic cushioning. Made in Italy according to ISO 15552 (Ex ISO 6431). Extruded aluminum body with grooves for magnetic detectors, chrome-plated steel piston rod. ATEX cylinders as standard.

Reference: LH0800150

Esquema cilindro doble efecto amortiguación neumática
Logotipo Aignep
Logotipo ATEX para cilindros
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated
.

No queries yet, leave the first!


Pneumatic cylinder diameter 80 mm stroke 150mm standard version, double acting with pneumatic cushioning and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 15552 (Ex ISO 6431), with aluminum sleeve. Chrome-plated or stainless steel piston rod (depending on version). Wide range of accessories for mounting the pneumatic cylinder.

The "L" range of pneumatic cylinders manufactured by Aignep is available in a wide variety of versions.

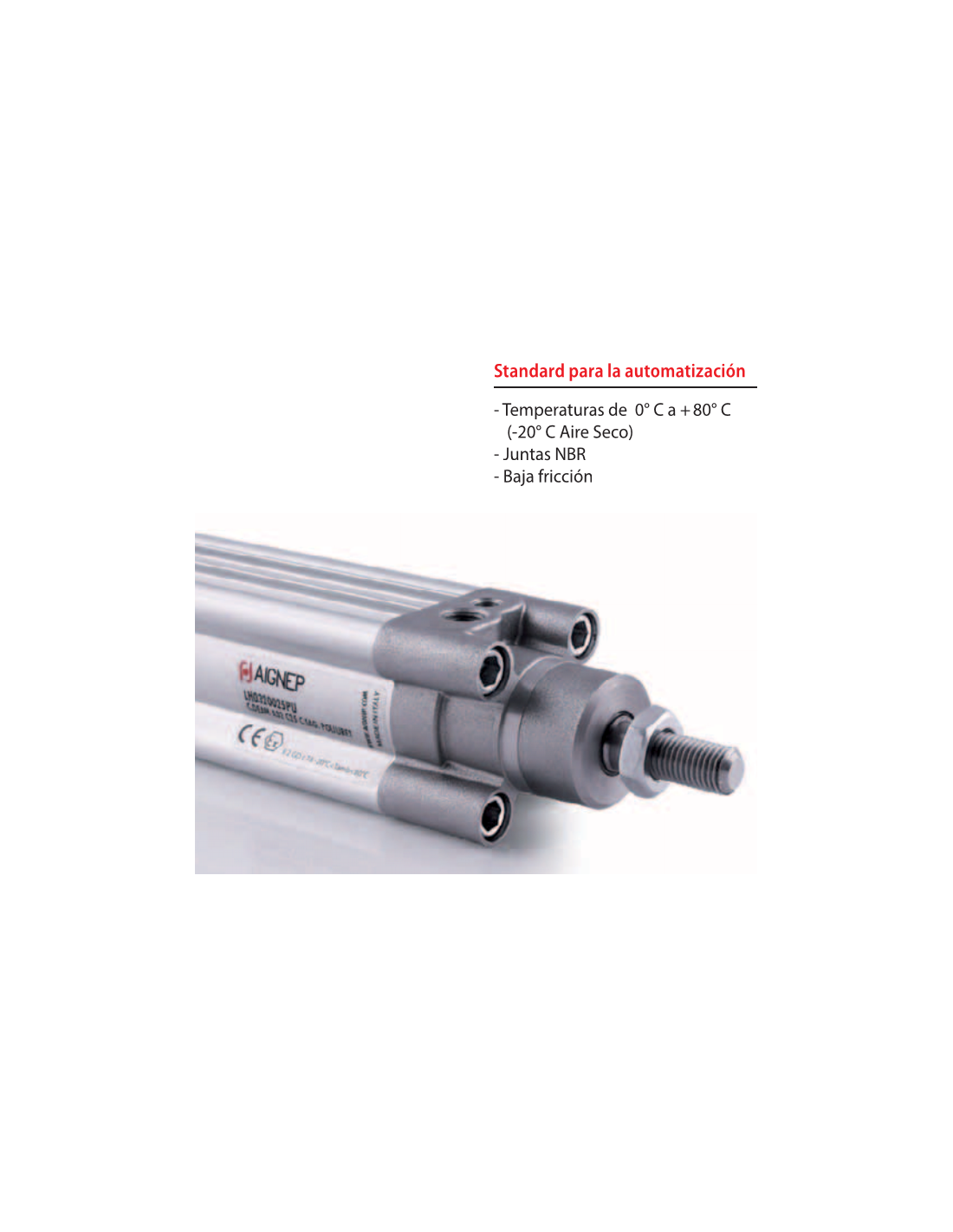

  • Standard version. Standard range for automation. Working temperature from 0ºC to +80ºC, NBR seals, low friction. Chrome-plated or INOX AISI 303 piston rod
  • Long life version. Working temperature from -20ºC to +80ºC, seals in Polyurethane.
  • High temperature and chemical compatibility version. Working temperature from -10ºC to +150ºC, all seals in FKM.
  • Low temperature version. Working temperature from -40ºC to +80ºC, seals in Polyurethane.
  • Version with stem wiper in FKM. Front temperature from -10ºC to 150ºC.
  • Resistant to water and chemical washing. Temperature from -10ºC to +60ºC, seals in Polyurethane waterproof, stem INOS AISI 303. Specially painted with black cataphoresis caps.
  • Corrosion resistant, compatible with chemical agents. Temperature range from -10ºC to +150ºC, all seals in FKM, metal wiper on stem, INOX AISI 303 stem. Specially painted black cataphoresis caps.
  • Standard version, AISI 303 STAINLESS STEEL stem
  • LH-IS" series. Standard range with AISI 303 STAINLESS STEEL piston rod




Technical characteristics of the pneumatic cylinder:

  • Manufacturer: Aignep
  • Manufacturer's reference: LH0800150
  • Diameter and stroke: Ø80x150 mm
  • Type: Double acting pneumatic cylinder
  • Cushioning: Pneumatic
  • Type of fluid: Air with or without lubrication
  • Manufacturing standard: ISO 15552
  • Maximum operating pressure: 10 bar (1 Mpa)
  • Minimum starting pressure: 0,1 bar (0,1 Mpa)
  • Type of seals: NBR
  • Operating temperature: 0ºC to +80ºC (-20ºC if totally dry air)
  • Type of construction: Chrome-plated steel stem
  • Air connection thread size: G 3/8"
  • Stem diameter: 25mm
  • Piston rod thread: M20x1,5
  • ATEX cylinders: - II 2 GD c T6 -20 ° C
  • Theoretical maximum force that the cylinder can develop on thrust
    • Pressure 5 kg/cm²: 251,3
    • Pressure 6 kg/cm²: 301.6
    • Pressure 7 kg/cm²: 351.9
  • Theoretical maximum force that the cylinder can develop in traction
    • Pressure 5 kg/cm²: 226.8
    • Pressure 6 kg/cm²: 272.1
    • Pressure 7 kg/cm²: 317.5

Dimensiones cilindros serie L Aignep - Adajusa

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.
The cylinder is prepared for mounting magnetic detectors and various accessories. The supply only includes the cylinder, the rest of the accessories must be ordered separately.
On request, apart from the standard strokes, strokes between 25 and 2700mm can be supplied
For further information you can download the technical data sheet by clicking on the tab "Attachments"
