Cylinder 32x25 double effect - Mindman

€58.66 Tax included

48.48 tax excl.

MCQI211032025

Pneumatic cylinder diameter 32x25 double magnetic effect. With pneumatic cushioning, aluminum jacket and chromed steel vastago.
Reference: 281MCQI2110320025M
Simbolo cilindro amortiguacion neumatica


https://rodavigo.net/datos/logos-marcas-png/th_mindman.png
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Pneumatic cylinder diameter 32 mm stroke 25mm, double effect with pneumatic damping and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 15552 (Ex ISO 6431), with an aluminium jacket. Stem in chromed steel. Wide range of accessories for pneumatic cylinder mounting.

Technical characteristics of the pneumatic cylinder:

  • Manufacturer: Mindman.
  • Reference: 281MCQI2110320025M
  • Diameter & Stroke: .32x25 mm.
  • Type: Double-effect pneumatic cylinder.
  • Damping: pneumatic.
  • Fluid type: Air with or without lubrication.
  • Manufacturing standard: ISO 6431.
  • Maximum operating pressure: 10 Bar.
  • Type of gaskets: NBR.
  • Operating temperature: -10oC to +80oC.
  • Type of construction: Chromed steel shank, aluminum shirt.
  • Vastago thread: M10x1.25
  • Stem Diameter: 12mm
  • Pneumatic connections thread: G 1/8

Dimensiones cilindros ISO Mindman

Table of Maximum Theoretical Forces of Cylinders 32mm

  • Pressure thrust force 4 bar: 32.2 Kg.
  • Pressure traction force 4 bar: 27.6 Kg.
  • Pressure thrust force 6 bar: 48.3 Kg.
  • Pressure traction force 6 bar: 41.5 Kg.
  • Pressure thrust force 8 bar: 64.3 Kg.
  • Pressure traction force 8 bar: 55.3 Kg.

The previous forces are always theoretical and in the sense of stem thrust.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Question
¿Cuantos Newtons máximos de tracción puede trabajar?
Answer

Buenos días,

La fuerza (teórica) que un cilindro neumático puede desarrollar se calcula de multiplicar la superficie del cilindro e (en cm2) por la presión del aire (en cm2), esto es válido para el empuje.

En el caso de un cilindro de Ø32:

Presión de trabajo 5Kg/cm2

  • Empuje: 40,2 Kg.
  • Tracción: 34,6 Kg.

Presión de trabajo 6 Kg/cm2

  • Empuje: 48,3 Kg.
  • Tracción: 41,5 Kg.

Presión de trabajo: 7 Kg/cm2

  • Empuje: 56,3 Kg.
  • Tracción: 48,5 Kg.

Para calcula los Newton multiplica por 9,81.

Fuentes: Catálogos Midman y Metal Work.

Borja on 10/24/2016 11:56:51

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Pneumatic cylinder diameter 32mm stroke 900 standard LH-032-0900 Aignep | ADAJUSA : price Pneumatic cylinder diameter 32mm stroke 900 standard LH-032-0900 Aignep | ADAJUSA : price 2
Pneumatic cylinders 32

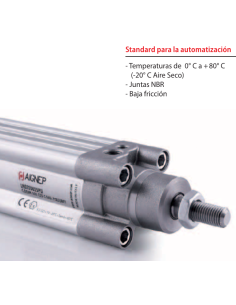

Pneumatic cylinder 32x900 double-acting LH0320900 - Aignep

Aignep
LH-032-0900
€113.11 (€93.48 tax excl.)
Pneumatic cylinder Ø32 stroke 900mm, double magnetic effect and with pneumatic cushioning. Made in Italy according to ISO 15552 (Ex ISO 6431). Extruded aluminum body with grooves for magnetic detectors, chrome-plated steel piston rod. ATEX cylinders as standard.Reference: LH0320900 Representative image for illustrative purposes, the item supplied will...
Pneumatic cylinder diameter 32mm stroke 160 standard LH-032-0160 Aignep | ADAJUSA : price Pneumatic cylinder diameter 32mm stroke 160 standard LH-032-0160 Aignep | ADAJUSA : price 2
Pneumatic cylinders 32

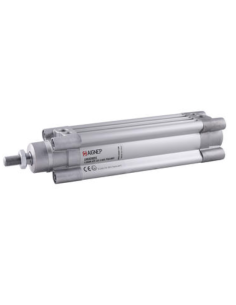

Pneumatic cylinder 32x160 double-acting LH0320160 - Aignep
