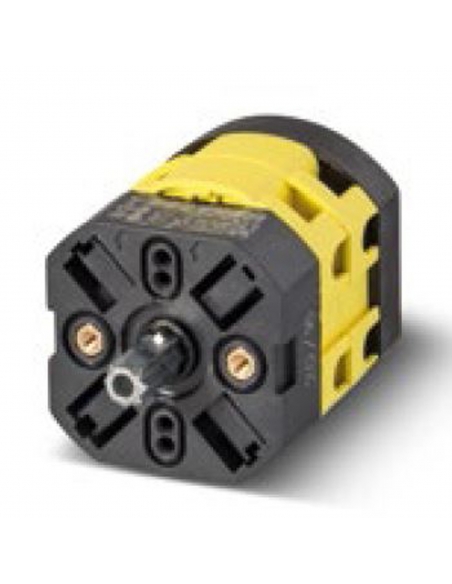

Monophasic inverter switch 20A - Giovenzana

€20.34 Tax included

€16.81 tax excl.

Single-phase inverter switch 20a for electric motors. It allows the start and stop of a single-phase electric motor, allowing you to select the direction of rotation of the same. For rotary control 45º 1-0-2.

Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and turning inverter in machines.

Reference: P0200016R

Logotipo Giovenzana

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


20A single-phase cam inverter switch for electric motors.

This series of rotary inverter switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by transpanel fixation (rear-frame), degree of protection IP-20 in terminals, self-cleaning contacts and indelible laser marking. Body made of UL94 VO self-extinguishing material.

Features:

  • Brand: Giovenzana.
  • Vendor reference: P0200016R.
  • Number of poles: 3.
  • Rated voltage Ue: 690V.
  • Nominal current Ie (AC21A): 20A.
  • Power : 2.2Kw (230Vac).
  • Nominal interrupt capacity: 5kA.
  • Number of manoeuvres / hours: 120.
  • Mechanical durability: 1,000,000 maneuvers.
  • Built-in mounting.
  • Degree of protection:
    • Type 1-4-4X controls: IP-65.
    • Lever-only controls: IP-40.
    • Bornes: IP-20.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14

Esquema inversor monofasico

Mounting:

Montaje interruptor de levas trifásicos

Dimensiones interruptor levas PO20-16-12

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Material for professional use, install in compliance with the regulations in force at the installation site.
