3/8 Spike for rubber diameter 9mm - Aignep

€1.20 Tax included

0.99 tax excl.

3044 9 3/8

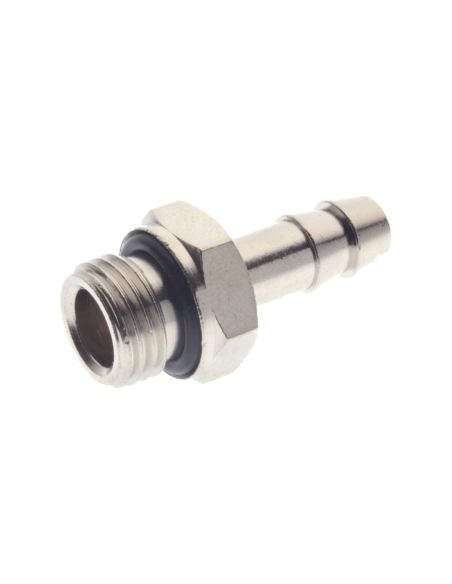

Spike with 3/8 cylindrical thread and for Ø 9mm rubber, nickel-plated brass body and gasket included. European manufacturing.

Series: Accessories
Reference: 3044 9 3/8


Aignep logoAdajusa standard fittings regulatory logo

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Spike with 3/8 cylindrical thread and a diameter of 9mm for the rubber connection and with O-ring included, used for connection to the pneumatic network.

Body made of nickel-plated brass and supports a maximum pressure of 75 bar , with a safety coefficient of 4. This spigot is suitable for water, oils, compressed air, fluids in general in pneumatic, hydraulic, oleodynamic, hydropneumatic installations, etc. ...

Technical characteristics:

  • Manufacturer: Aignep .
  • Reference: 3044 9 3/8
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas conforming to ISO 228 Class A
    • ISO R/262 compliant metric

3044dimensions
3044TD



Material for professional use, install in compliance with the regulations in force at the installation site.
