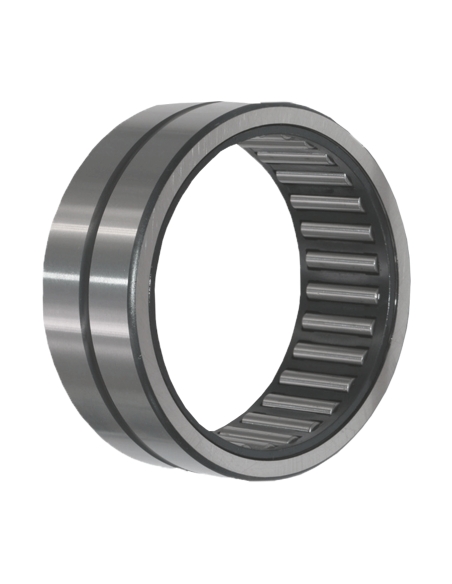

Needle roller bearings with single row needle roller and cage assemblies without inner ring NK 08 16 TN 8x15x16 ISB - ADAJUSA
Needle roller bearings with single row needle roller and cage assemblies without inner ring NK 08 16 TN 8x15x16 ISB - ADAJUSA

Needle roller bearings NK 8/16 8x15x16 - ISB

€9.29 Tax included

€7.68 tax excl.

Single row needle roller bearings (drawn cup needle roller bearing) with ribs and without inner ring, dimensions 8x15x16mm. NK drawn cup needle roller bearings without inner race, drawn cup needle roller and cage assembly and outer ring form a self-retaining unit, used when the shaft can be hardened and ground.

Ordering Number: NK 8/16 TN

Logotipo Descripción generada automáticamente

Representative picture for illustrative purposes, the item supplied will correspond to the specifications shown

No queries yet, leave the first!
Privacy
Shipments
Returns


The non-detachable drawn cup needle roller bearings, needle roller and cage assembly and outer ring form a self-retaining unit. These bearings are suitable where limited radial construction space is available.

Drawn cup needle roller bearings are used for bearings where the shaft can be hardened and ground.

NK bearings ... TN are light series, with locking rings without bore and lubrication groove.

Dimensions: Ø8xØ15x16mm.

For other references or sizes please consult.


Diagrama, Texto, Esquemático Descripción generada automáticamente
Diagrama Descripción generada automáticamente

Characteristics:

  • Material: hardened steel.
  • Dimensions
    • Fw: 8 mm
    • D: 15 mm
    • C: 16 mm
  • Load coefficients (N)
    • Dynamic C: 4850
    • Static dynamic C0: 5500
  • Maximum rpm: 27550

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
