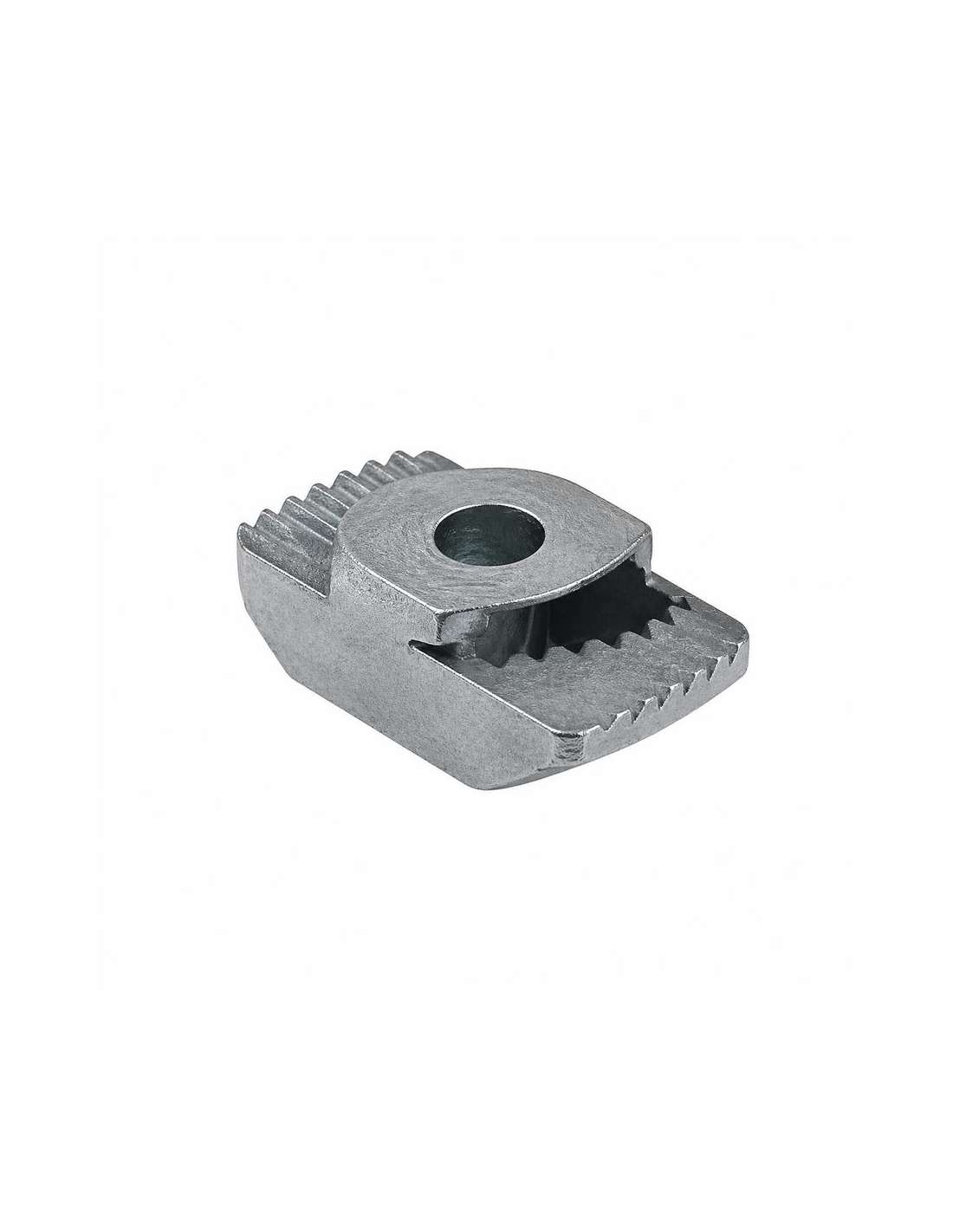

Hammer head nut for 8mm slot
Hammer head nut for 8mm slot

Hammer head nut for 8mm slot

€0.63 Tax included

€0.52 tax excl.

Hammer head nut for 8mm grooves. This nut is used for the assembly and sagging of aluminum profiles and accessories on 8mm grooves.

This nut allows to be mounted directly on the profile groove. It is not necessary to insert it on the side of the profile.

Available threads (Side menu selection)

  • M4 Reference: 11055
  • M5 Reference: 11056
  • M6 Reference: 11057

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Thread
  • M4
  • M5
  • M6

The minimum purchase order quantity for the product is 2.

No queries yet, leave the first!
Privacy
Shipments
Returns


Hammer head nut for 8mm slots. This nut is used for mounting and assembling aluminum profile and accessories on 8mm slots. Made of zinc-plated steel.

This nut allows it to be mounted directly on the profile slot. There is no need to insert it on the side of the profile. They can be mounted on already assembled structures.

Montaje tuerca cabeza de martillo

Dimensiones tuerca cabeza martillo 8mm

  • D: 7.7 mm
  • A: 16 mm
  • B: 7.7 mm
  • H1: 1.5 mm
  • H2: 4.5 mm

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)
