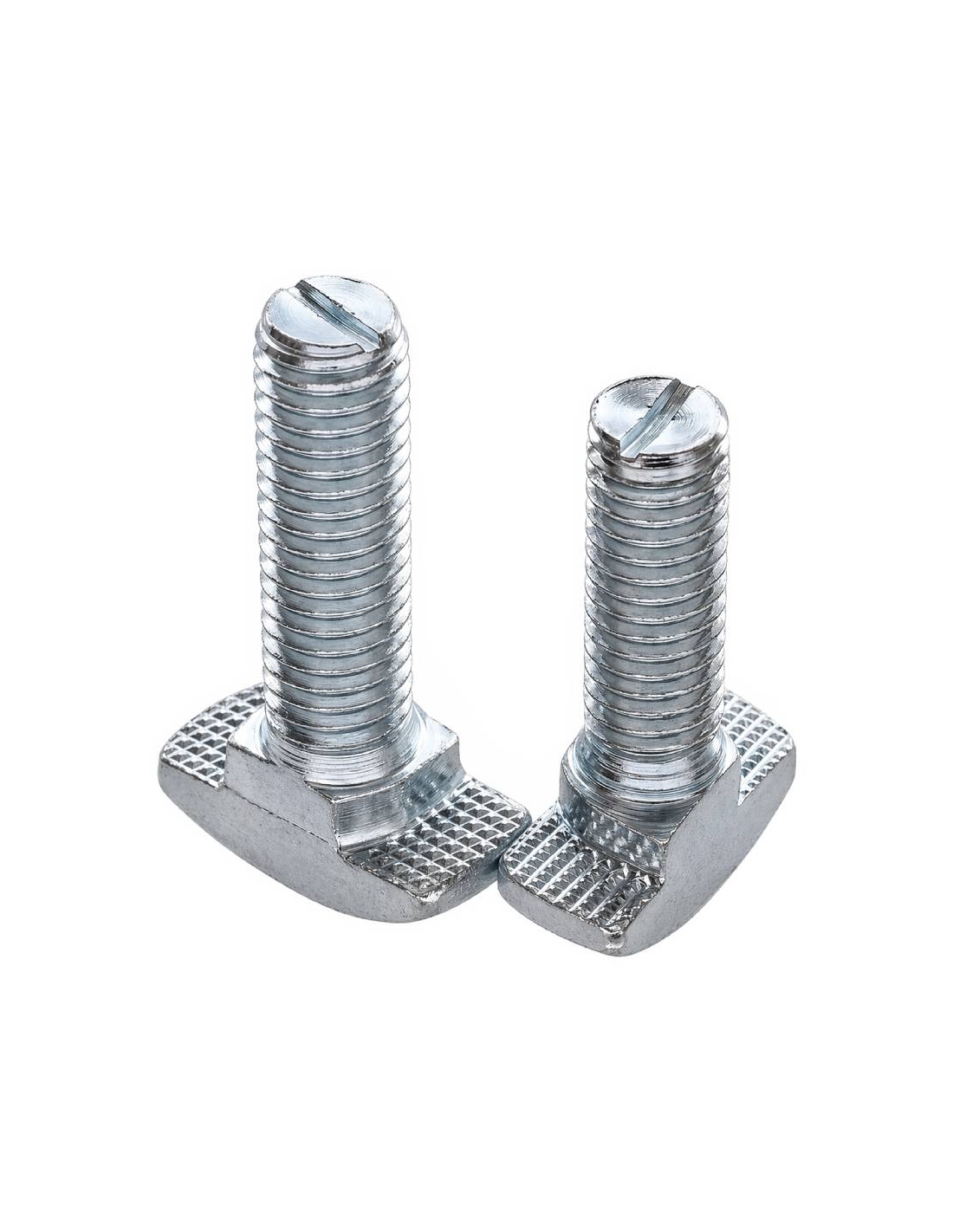

M8 hammer head screw for 10mm slot
M8 hammer head screw for 10mm slot

Hammer head screw M8 for 10mm slot

€0.80 Tax included

€0.66 tax excl.

M8 hammer head screw for 10mm grooves. This screw is used for mounting and ensailing aluminum profiles and accessories on 10mm grooves.

This screw allows to be mounted directly on the profile groove. It is not necessary to insert it on the side of the profile.

The available lengths are (Side menu selection):

  • 20 mm Reference: 11047
  • 25 mm Reference. 11048
  • 30 mm Reference. 11049
  • 40 mm Reference. 11050
  • 60 mm Reference. 11051

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Length
  • 20mm
  • 25mm
  • 30mm
  • 40mm
  • 60mm

No queries yet, leave the first!
Privacy
Shipments
Returns


M8 hammerhead screw for 10mm slots. This screw is used for mounting and assembling aluminum profiles and accessories on 10mm slots. Made of zinc-plated steel.

This screw allows it to be mounted directly on the profile slot. There is no need to insert it on the side of the profile. They can be mounted on already assembled structures.

Montaje tornillo cabeza de martillo

Dimensiones tornillo cabeza de martillo

  • A: 19 mm
  • B: 9.7 mm
  • C: 9.7 mm
  • L: 20-25-30-40 and 60mm
  • H: 3 mm
