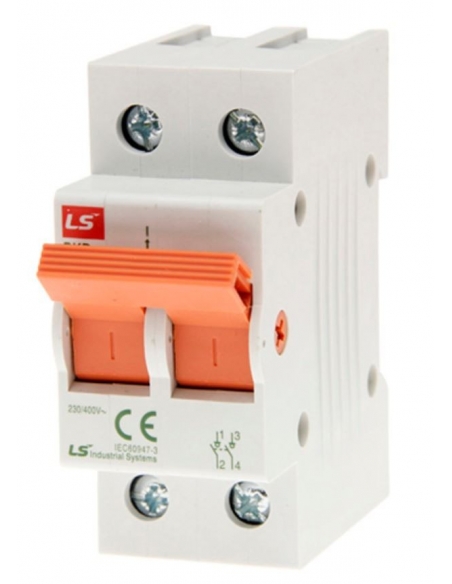

Disconnector 2 Polo 63A -  LS
Disconnector 2 Polo 63A -  LS

Disconnector 2 Pole 63A - LS

€9.38 Tax included

€7.75 tax excl.

2-pole 63A load break Switch disconnector . Din rail mounting, 2 modules wide. BKD series.


Reference: BKD 2P 63A

2 pole disconnector switch diagram

LS Electric brand
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


2-pole 63A load-break switch for disconnecting voltage from an electrical installation or machine. Modular design with 35mm width for mounting on DIN rail.

Characteristics:

  • Manufacturer: LS (LG)
  • Reference: BKD 2P 63A
  • Number of poles: 2
  • Nominal voltage: 240/415Vac 50/60Hz
  • Rated current: 63A
  • Nominal insulation voltage (Ui): 600V
  • Rated impulse voltage (Uimp): 6kV
  • Electrical life: 1500 operations
  • Mechanical life: 10,000 operations
  • Mounting: DIN rail 35mm
  • Width: 17.5mm per pole (35mm)
  • Standard: IEC60947-3



Attention: This component should not be confused with a thermal-magnetic switch, they are two different elements.





For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Professional use material, install in compliance with the regulations in force at the place of installation.
