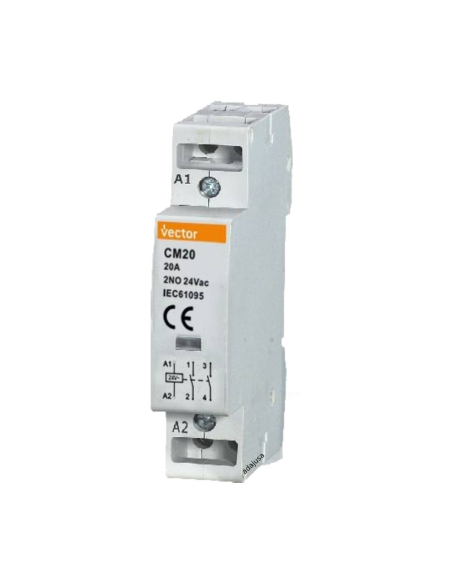

Modular contactor 20A 2Poles open 24Vac

€42.54 Tax included

35.16 tax excl.

CM202NA024

Modular electrical contactor for domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. 2 poles normally open (NO) with a capacity of 20A in category AC-1/AC-7a. Coil voltage 24Vac. Size 1 module (18mm).

Reference: CM20 1M 20A 2NO 24VAC

2-pole electrical contactor diagram



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


Open single-phase modular contactor (2 Poles), 20A in category AC-1/AC-7a, the contactor coil voltage is 24Vac. The main application of modular contactors is the control of loads in the domestic environment, it allows the control of domestic systems, home automation, heating, lighting and air conditioning, it can also be used in industrial and general use applications.

Fixing via DIN rail and size 1 module (18mm).



General characteristics modular contactor:

  • Manufacturer/Supplier: Generic
  • Reference: CM20 1M 20A 2NO 24VAC.
  • Contactor rated current in AC1/AC7a: 20A.
  • Contactor rated current in AC3/AC7b: 9A.
  • number of contacts (poles): 2.
  • Contact status: Normally open NA.
  • Coil voltage: 24Vac. 50/60 Hz.
  • Operating voltage in main contacts (Un): 230Vac.
  • Insulation voltage (Ui) : 400V.
  • Maximum contactor power in AC1/AC7a 230V: 4 Kw.
  • Maximum contactor power in AC3/AC7b 230V: 1 Kw.
  • Electrical life (category AC1, AC7a): 100,000 cycles.
  • Electrical life (category AC3, AC7b): 150,000 cycles.
  • Width size: 18mm (1 module).
  • Regulation: IEC61095.



Modular contactor dimensions 25A 2 poles

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
Estoy interesado en el artículo Contactor modular 20A 2Polos abiertos 24Vac - LS Industrial Systems. El problema es que en las Características generales contactor modular figura Tensión de la bobina: 230Vac. 50/60 Hz. En cambio en la descripción del artículo pone 24 Vac, que es lo que necesito. ¿Cuál es la tensión de la bobina?
Answer

Buenos días,

En primer lugar agradecerle que nos indique el error en hay en la ficha del producto, el cual ya ha sido solucionado. La bobina es de 24Vac.

Saludos

Angel on 06/22/2018 21:43:21

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

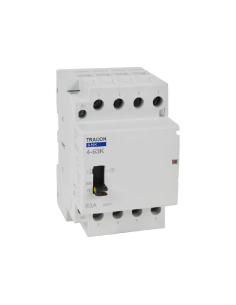

Modular contactor 4 Poles 230V with manual control SHK4-40K | ADAJUSA | price
Modular Contactors

Modular contactor 40A 4Poles open 230Vac with manual control - Tracon

TRACON
SHK4-40K
€39.83 (€32.92 tax excl.)
Modular electrical contactor with 4 normally open poles (NO) with a capacity of 40A in category AC-1/AC-7a. Coil voltage 230Vac. For domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. Size 3 modules (54mm).Reference: SHK4-40K Representative image for illustrative purposes, the item...
Modular contactor 2 Poles 230V with manual control SHK2-25 | ADAJUSA | price
Modular Contactors

Modular contactor 25A 2Poles open 230Vac with manual control - Tracon

TRACON
SHK2-25K
€13.26 (€10.96 tax excl.)
Modular electrical contactor with 2 normally open poles (NO) with a capacity of 25A in category AC-1/AC-7a. Coil voltage 230Vac. For domestic applications, to control home automation systems, domestic motors, heating, lighting, ventilation and general uses. Size 1 module (18mm).With manual operation lever or lock.Reference: SHK2-25K Representative image...

Customers who bought this product also bought:

2
Intermediate "T" fittings

Intermediate T fitting tube 8 instant technopolymer - Metal Work

Metal Work
2L22004
€3.29 (€2.72 tax excl.)
Automatic "T" fitting for 8mm external tube, quick-connect, made of high quality technopolymer. Very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Manufacturer: METAL WORK. Reference: 2L22004 Representative image for illustrative purposes, the article...

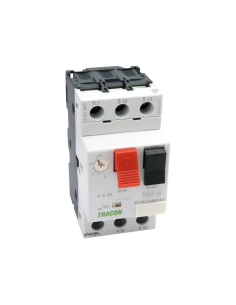

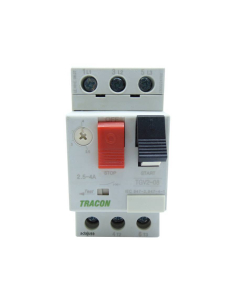

TGV2 motor protection Motor circuit breaker 2.5A to 4A| ADAJUSA | price TGV2 motor protection Motor circuit breaker 2.5A to 4A| ADAJUSA | price 2
Motor guard circuit breakers motor protection

Motor circuit breaker 2.5A to 4A TGV2 Series

TRACON
TGV2-08
€29.63 (€24.49 tax excl.)
Three-phase Motor circuit breaker for protection of electric motors. The regulation of the motor protection circuit breaker is between 2.5A to 4A. The installation of a motor protection circuit breaker prevents the breakdown of electric motors, both single-phase and three-phase, due to overload or failure of a phase or short circuit.Reference: TGV2-08...
MCB circuit breaker 1 pole+neutral 6A narrow profile - LS
MCB circuit breakers 1 pole + neutral DPN

MCB circuit breaker 1 pole + neutral 6A narrow profile - LS

LS Electric
97BKP-PN-C06A
€8.08 (€6.68 tax excl.)
6A MCB circuit breaker Pole + Neutral in narrow profile curve C. 1-pole + neutral, narrow profile, 6A MCB circuit breaker for protection against short circuits and overloads in single-phase installations. With an assigned breaking capacity of 4500A. Representative image for illustrative purposes, the item supplied will correspond to the...

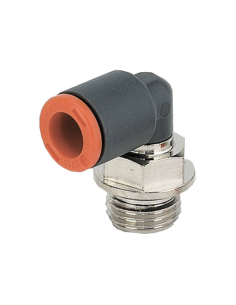

Cylindrical swivel elbow fitting 3/8 tube 8 - Metal Work
