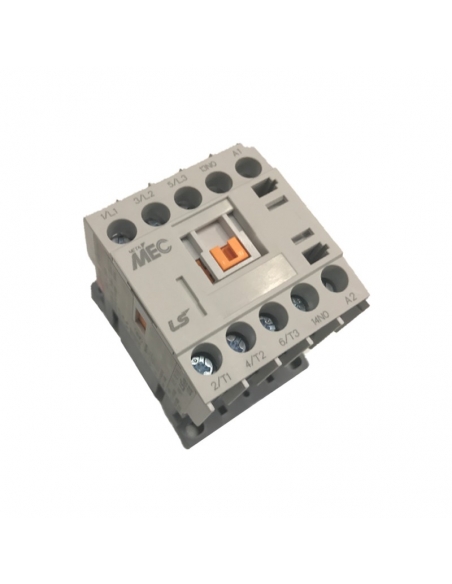

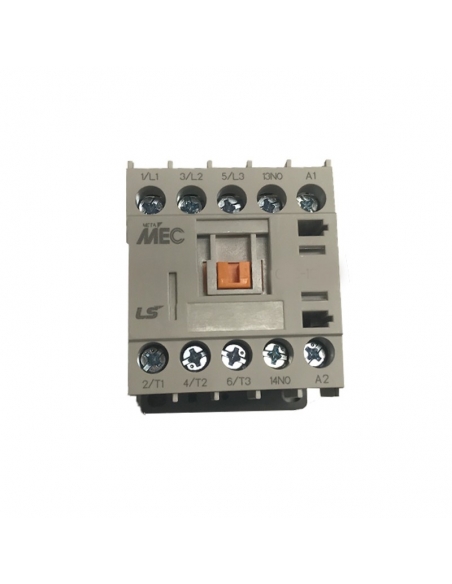

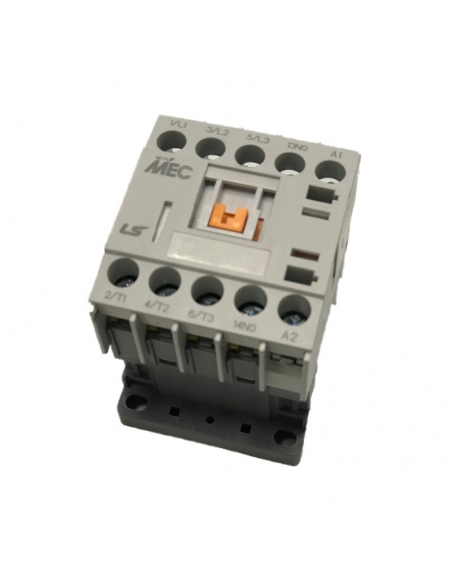

Mini connector LS 12A coil 24Vac auxiliary contact open NA
Mini connector LS 12A coil 24Vac auxiliary contact open NA
Mini connector LS 12A coil 24Vac auxiliary contact open NA
Mini connector LS 12A coil 24Vac auxiliary contact open NA
Mini connector LS 12A coil 24Vac auxiliary contact open NA
Mini connector LS 12A coil 24Vac auxiliary contact open NA

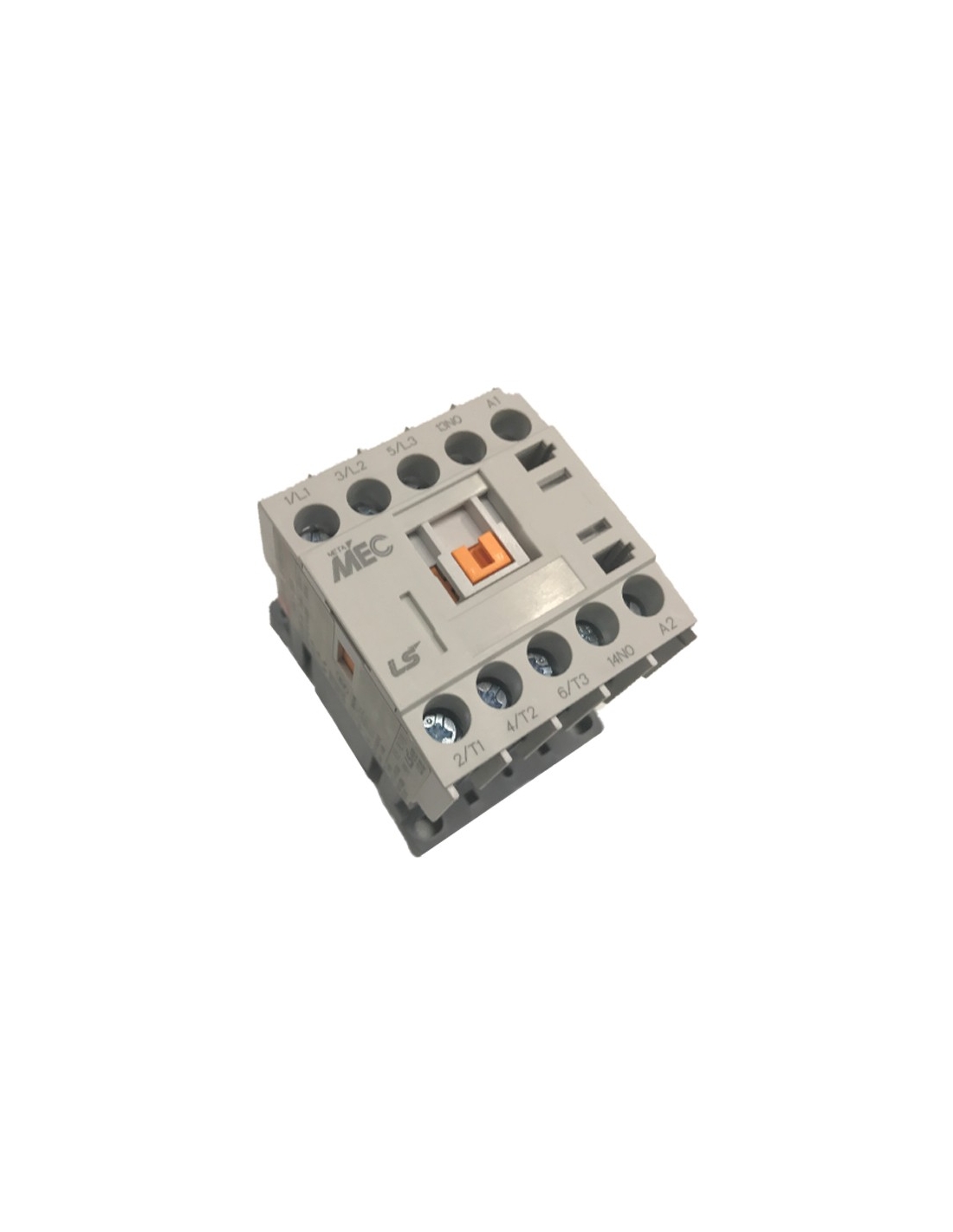

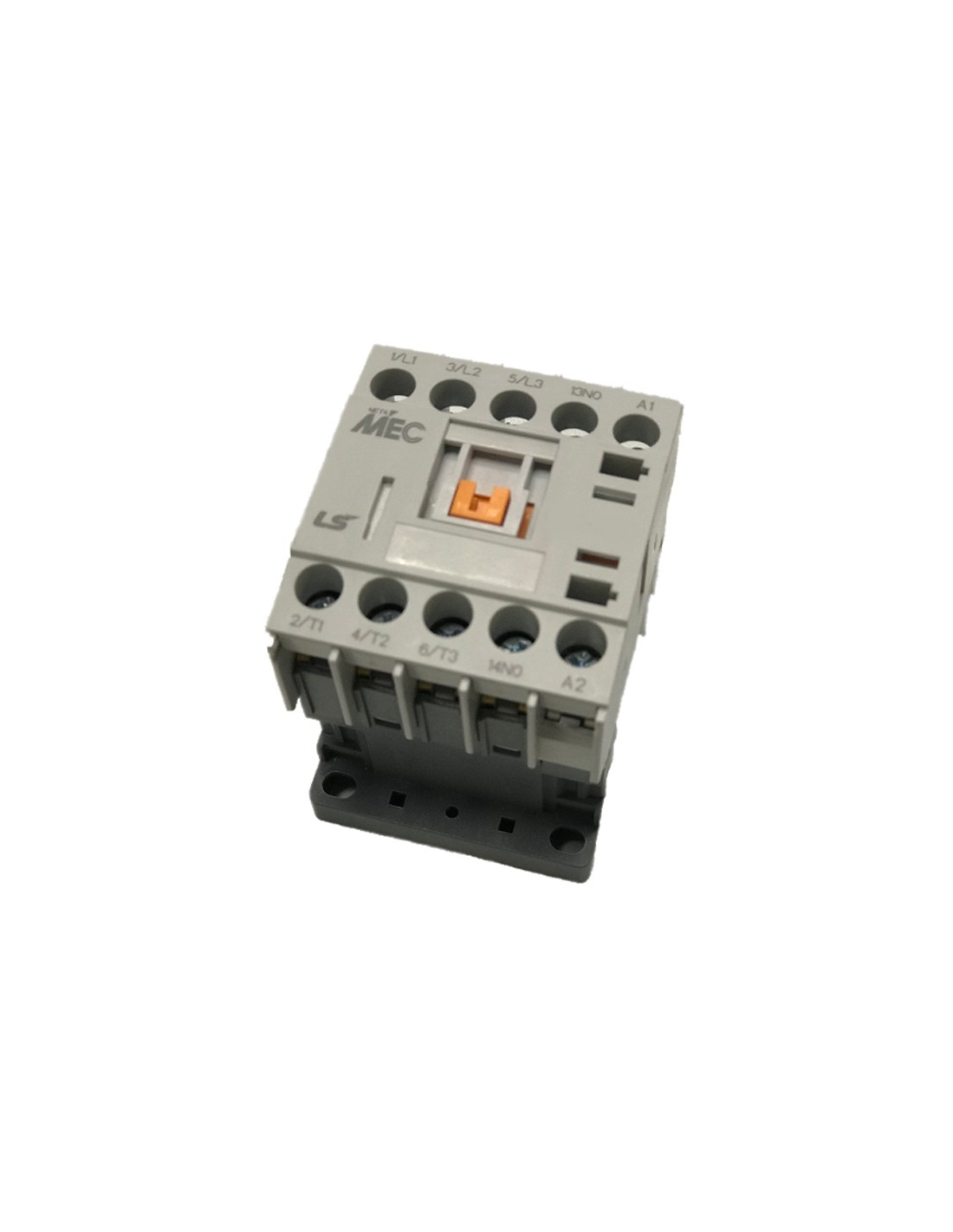

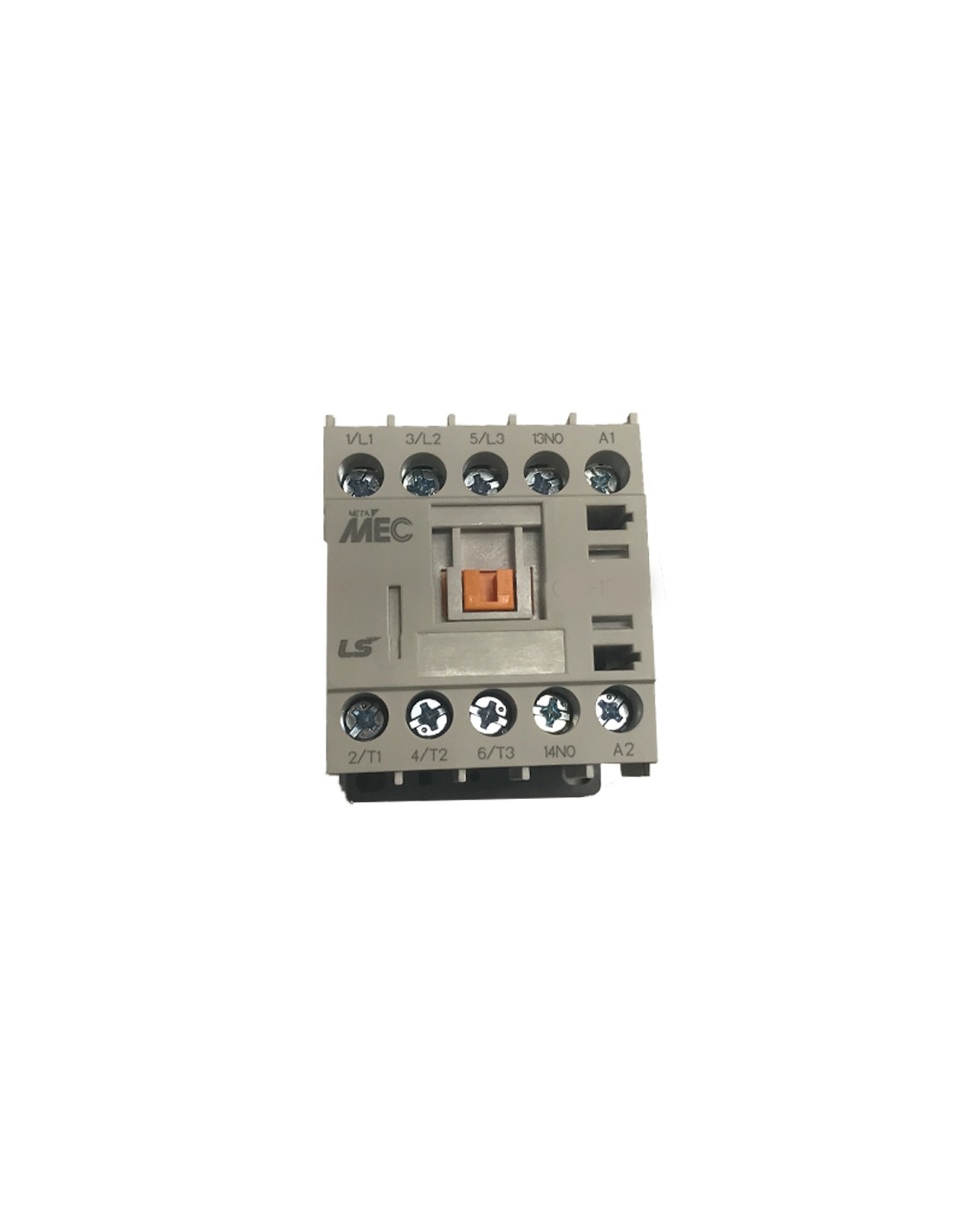

Miniature contactor 12A coil 24Vac auxiliary contact open NO - LS

€20.79 Tax included

17.18 tax excl.

97GMC12MA24A

Three-phase electricmini contactor for motor control, heating, lighting, ventilation, or general uses, 3-pole with a current capacity of 12A category AC3 or 20A category AC1, with 24Vac coil, the contactor is equipped with an open auxiliary contact (NO).

Ref: GMC-12M-10-AC24V

Esquema eléctrico contacto 3 polos contacto axiliar abierto

Logotipo LS LG industrial Systems

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Mini three-phase LS contactor (3 poles) of 12A in category AC3 or 20A in category AC1, the contactor coil voltage is 24 Vac, with an open auxiliary contact NO. The contactor is fixed by screws or DIN rail. The intended uses of the contactor are for control of electric motors, heating, lighting, ventilation, and general uses.

General characteristics of the mini contactor:

  • Manufacturer: LS.
  • Ref: GMC-12M-10-AC24V
  • number of poles: 3.
  • Rated current AC3: 12A.
  • Maximum thermal current Ith: 20A.
  • Maximum voltage: 660Vac.
  • Maximum power: 3~AC3 230V: 3 Kw.
  • Maximum power: 3~AC3 400V: 5.5 Kw.
  • Control voltage (coil): 24Vac 50/60Hz.
  • Contact auxiliary integrated in the minicontactor: 1 open contact (NO).

Dimensiones contactor LS vista frontal

Minicontactor LS Vista lateral y posterior

Material for professional use, install in compliance with the regulations in force at the place of installation.
