Pack

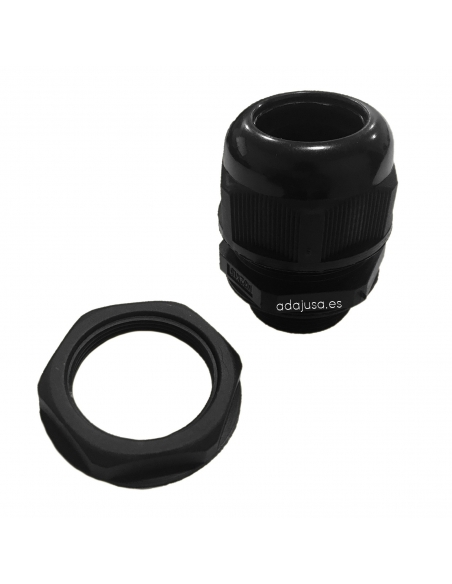

Black polyamide M25 cable glands with nut

Glands M25 polyamide black cable with nut - Gaestopas

Name: Glands M25 polyamide black cable with nut - Gaestopas
Brand: Generico-GAE
SKU: 9921PREPUNM25
Price: 1.1374 EUR
Availability: InStock

€1.14 Tax included

€0.94 tax excl.

M25 thread polyamide (Nylon) glands,with nut included. Degree of protection IP-68.

Color: Black (RAL9005).

For electrical cables and hoses of diameters between 13 and 18mm.

Model: 9921PREPUNM25

This pack contains

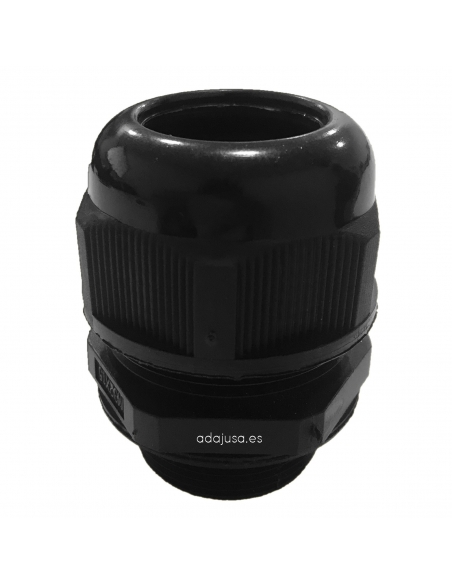

Glands M25 black polyamide without nut

€0.91

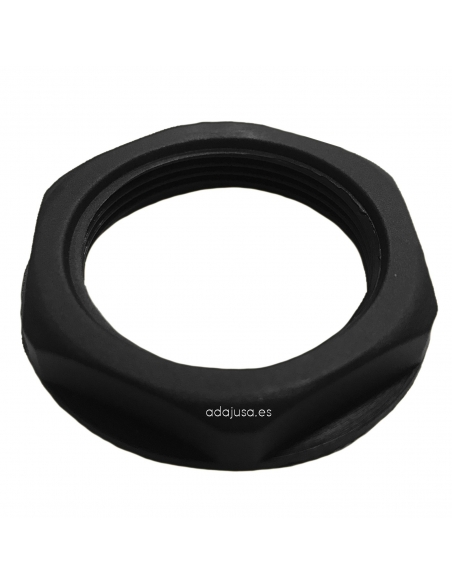

Gland nut M25 Black polyamide cable

€0.23

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

M25 glands made of polyamide with nut,for electrical applications.

Technical details:

Thread: M25.
Color: Black (RAL 9005).
Material: Polyamide 6, halogen-free.
Neoprene retaining gasket.
High fire resistance.
Working temperature: -30o to 80oC.
Maximum intermittent working temperature: up to +120oC.
Degree of protection: IP68 (On circular section conductor).
International standard: EN 50262.
Certifications: VDE (No. 40004337).
Panel drill diameter: 25.5 mm.
Cable diameter: 13..18 mm.
Key width: 33mm.
Thread length: 8mm.
International standard: EN 50262.
Certifications: VDE (No. 40004337).
