Glands M40 grey polyamide with nut

€1.75 Tax included

€1.45 tax excl.

Polyamide (Nylon) glands with M40x1.5mm thread, nut and NBR gasket included.

Grey.

Reference: XBS-M40

No queries yet, leave the first!

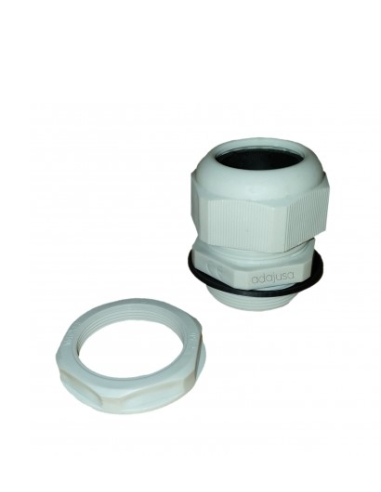

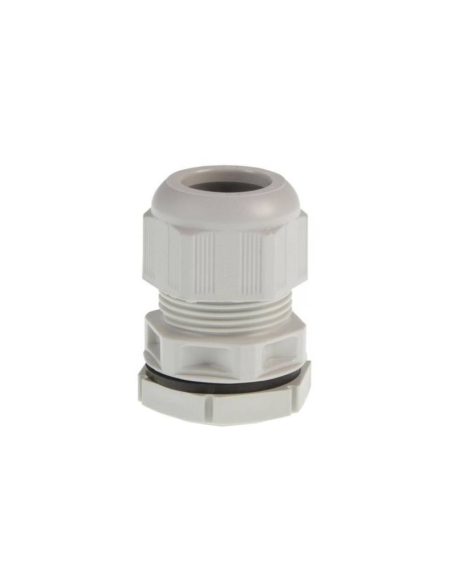

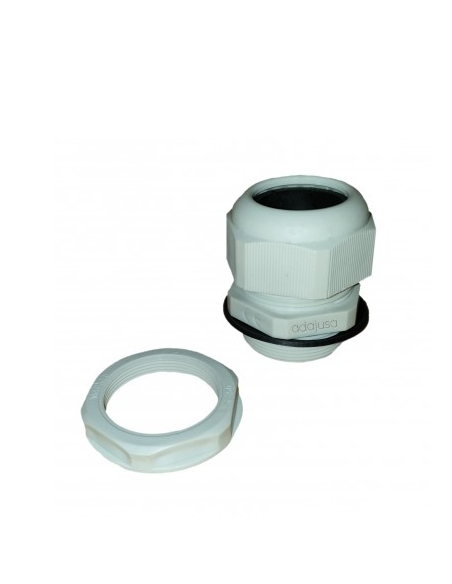

M40x1.5 cable glands made of grey polyamide (RAL7035), with nut and nitrile gasket included in the supply. Degree of protection IP68.

Supply includes:

  • Grey M40 cable glands
  • M40 nut in grey
  • Sealing gasket (NBR)

characteristics:

  • Manufacturer/Supplier: XBS/Mixwill
  • Ref: XBS-M40
  • Thread: M40x1.5
  • Color: Grey (RAL7035)
  • Material: Polyamide 6.6
  • Board: NBR
  • Gasket Color: Black (RAL9005)
  • High fire resistance.
  • Working temperature: -20o ÷ 80oC.
  • Degree of protection: IP68 (On circular section conductor).
  • Panel drill diameter: 40.5 mm.
  • Cable diameter: 22 ÷ 32 mm.
  • Key width: 52 mm

Dimensiones presaestopas

  • AG: Thread M40x1.5
  • GL: 18 mm
  • H: 45 mm.
