Grid 160x160 GFI1500 adajusa
Grid with fan filter 160x160mm
Grid with fan filter 160x160mm
Grid with fan filter 160x160mm
Grid with fan filter 160x160mm
Grid 160x160 GFI1500 adajusa
Grid with fan filter 160x160mm
Grid with fan filter 160x160mm
Grid with fan filter 160x160mm
Grid with fan filter 160x160mm

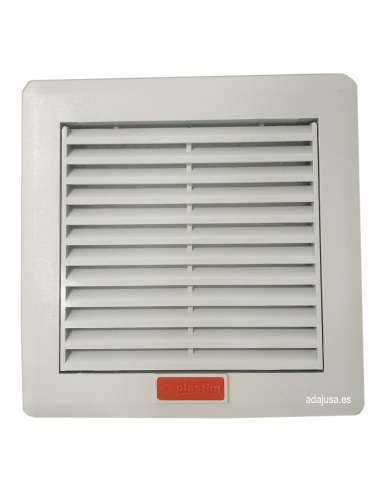

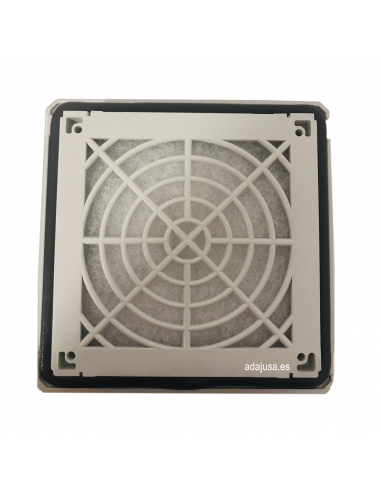

Ventilation grille 160x160mm

€10.99 Tax included

9.08 tax excl.

GFI1500

Ventilation grille and for 160x160mm fans.

Reference: GFI 1500



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns

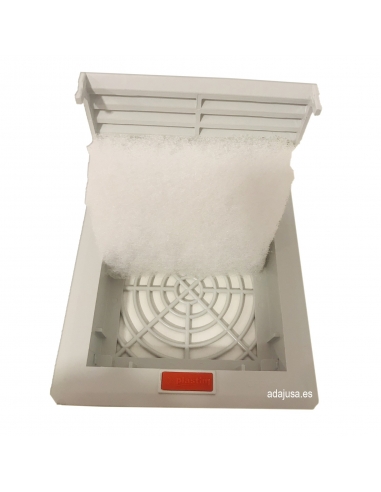

Ventilation grille and for 160x160mm fans. Door system to be able to change the grid filter more easily.

  • Brand/supplier: Gaestopas
  • Reference: GFI 1500
  • Plastic material: UL94 V0 flame retardant ABS
  • Exterior dimensions:
    Height: 160mm.
    Width: 160mm.
    Depth: 31mm

  • Interior dimensions:
    Height: 125mm
    Width: 125mm

  • CE regulations
  • Operating temperature: -10/+70
  • Protection: IP54
  • Noise level: 62 (64)
  • Gasket: polyurethane sealing
  • Colour: RAL 7035
  • Mounting: quick clip

Dimensions-GFI1500-GFT1500

GFI1500-GFT1500

Dimensions-cut-GFI1500-GFT1500

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
est ce que le filtre est adapté pour les poussières extérieures de bois?
Answer
Bonjour.

L'indice de protection est IP 54, la capacité de filtration dépend de la taille des particules.

https://adajusa.fr/fr/armoires-electriques-et-coffrets-metalliques/5046-grille-ventilation-160x160mm-8435532850465.html

Si un produit bénéficie d'une protection IP54, il est protégé contre les dépôts de poussière et les contacts. L'eau pulvérisée dans n'importe quelle direction ne pénètre pas non plus à l'intérieur du boîtier.


Merci de votre compréhension.
Francis on 09/17/2023 09:42:45
