Electrical cabinet 400x400x250 mm Series TFE

€106.27 Tax included

€87.83 tax excl.

TFE404025

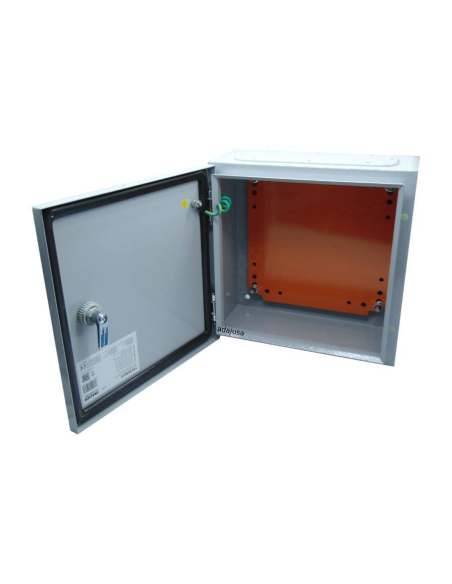

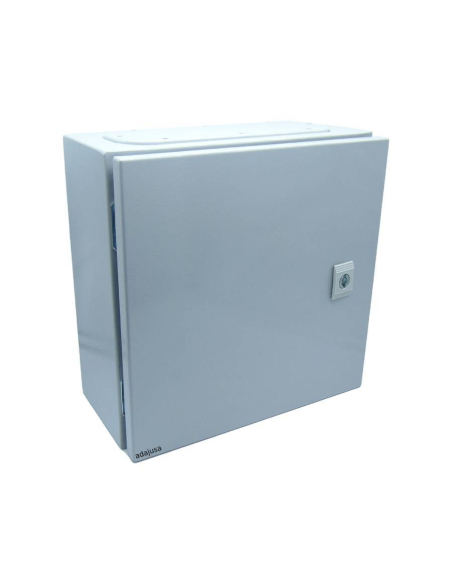

Sheet metal wall electrical cabinet (envelope) with mounting plate, specially designed for electrical distribution panels, machinery cabinets, automation and control cabinets, air conditioning and air conditioning, etc. The opening direction of the door can be changed. IP55 protection grade.

Plate and mounting brackets included.


Reference: TFE404025


Exterior dimensions:

  • Height: 400mm
  • Width: 400mm
  • Depth: 250mm



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


These electrical cabinets are manufactured thinking about guaranteeing a long useful life of their electrical assemblies. They have an easy-open closing system, smooth turning of the door and a maximum opening to improve the scope of work in their assemblies, easily removable door and the possibility of changing the opening direction. Electrical cabinet manufactured under CE regulations and with IP55 protection degree.

Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: TFE504020
  • Dimensions: 400x400x250mm
    • Height: 400mm
    • Width: 400mm
    • Depth: 250mm
  • Material: Sheet steel
  • Color: Gray RAL 7035
  • Protection grade: IP55
  • Door with 2 hinges
  • Number of closures: 1
  • Closure type: Quarter turn, in polyamide
  • Fixation: Wall
  • Steel mounting plate included in delivery
  • Wall mounting brackets included in delivery
  • Regulations: CE, EN62208

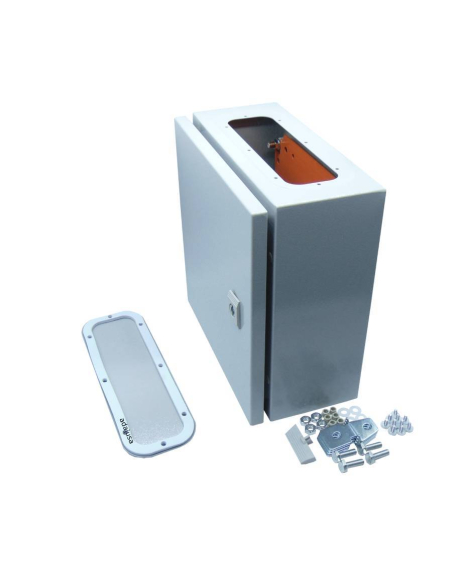

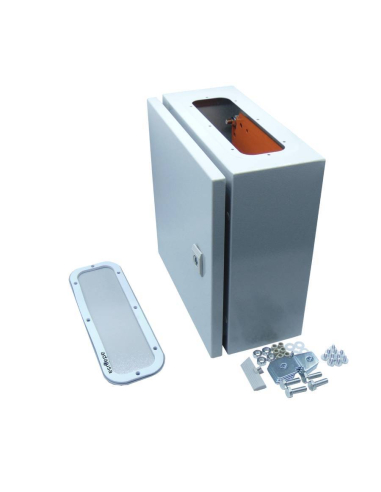

The supply includes:

  • Cupboard
  • Mounting plate
  • Lock
  • Inlet plate and gaskets
  • Mounting Brackets
Adajusa TFE sheet metal cabinet breakdown





Material for professional use, install in compliance with the regulations in force at the installation site.
