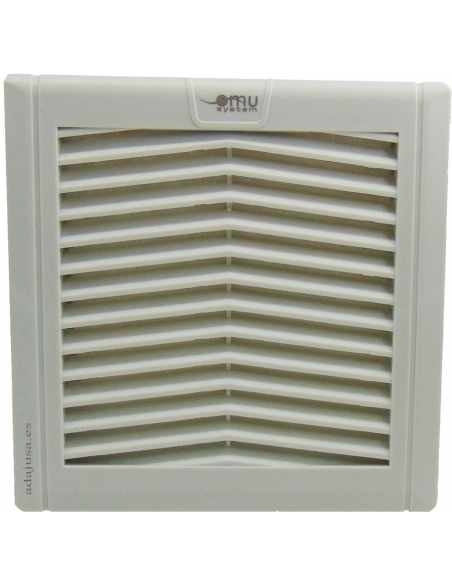

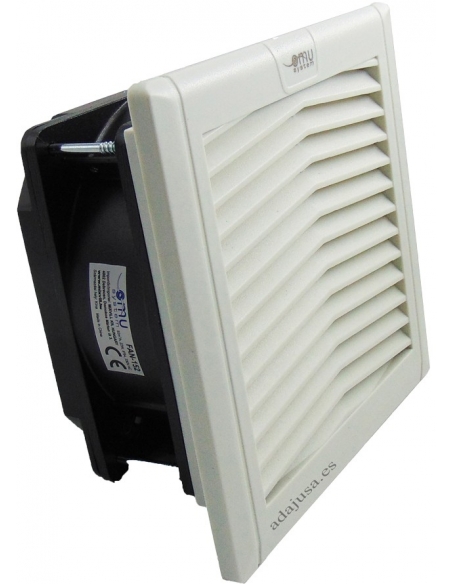

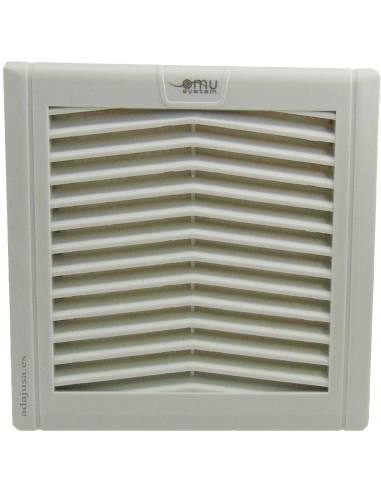

Ventilation grille with filter and fan 204x204 mm

Grille with filter and built-in fan, for ventilation in electrical and electronic cabinets. Made of plastic material (according to UL94 VO), gray color. Operating voltage 230Vac 50/60Hz.

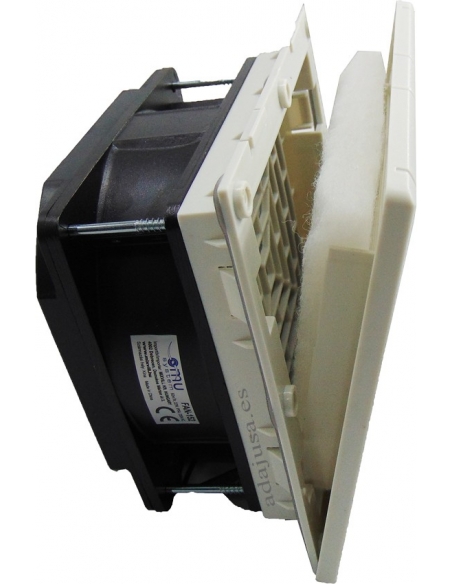

The exterior dimensions of the grate are 204x204mm, allowing front opening for maintenance of the filter element.

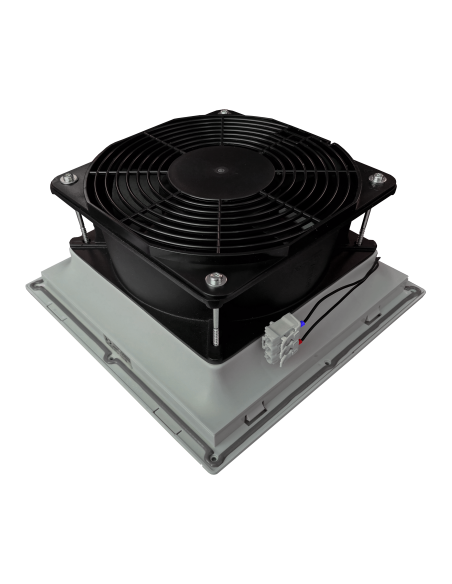

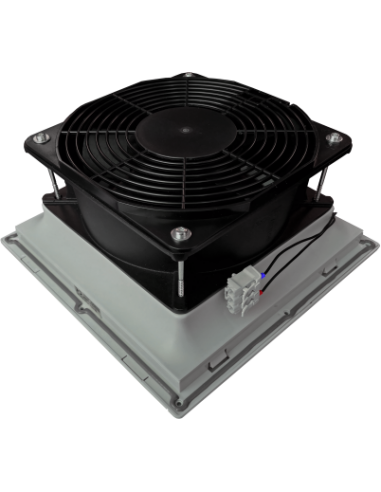

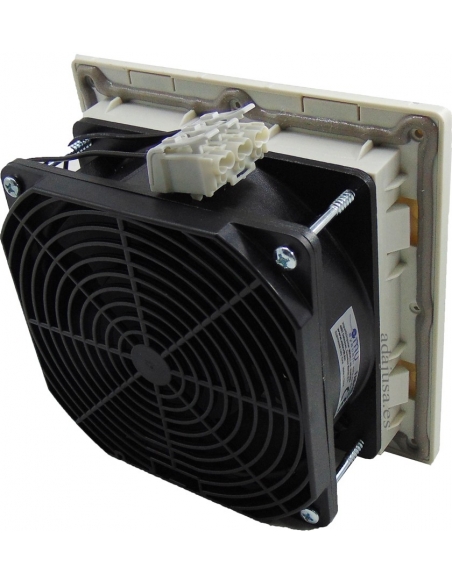

170x150x50mm fan with axial ball bearings, high performance 255 m3/h.

This type of fan with grille and filter is used to provide an optimal climate in electrical and electronic cabinets. The temperature inside the cabinet can be reduced by facilitating the exit of hot air to the outside, avoiding the formation of hot air zones inside the electrical and electronic cabinets, protecting and increasing the useful life of the electrical and electronic components and avoiding overheating. The filter prevents impurities from entering the interior of the cabinet.

The filter is made of synthetic material and must be cleaned and replaced depending on the accumulated dirt and operating time. A dirty filter reduces the efficiency of the ventilation system.

Main technical characteristics:

• Supplier/Manufacturer: Mixvil/OMU
• Reference: FAN-204/170
• Fan type: Axial ball bearing
• Operating voltage: 230Vac 50/60Hz
• Power: 33W
• Air flow: 255 m3/h
• External dimensions: 204 x 204 mm
• Cutting dimensions: 177 x 177 mm
• Fan dimensions: 170 x 150 x 50 mm
• Grille material: self-extinguishing ABS, in accordance with UL94 VO
• Filter material: Reusable, self-extinguishing synthetic fiber (class F1)
• Fan material: Aluminum and PBT thermoplastic
• Operating temperature: -25ºC to +65ºC
• Storage temperature: -40ºC to +70ºC
• Operating/storage humidity: max. 75% RH (non-condensing)
• Useful life: Min. 56,000 hours of operation (at 40ºC)
• Connection: via cables
• Fastening with 4 screws
• Protection: IP54
• Color: Gray RAL 7035

A = 204mm




Material for professional use, install in compliance with the regulations in force at the installation site.
