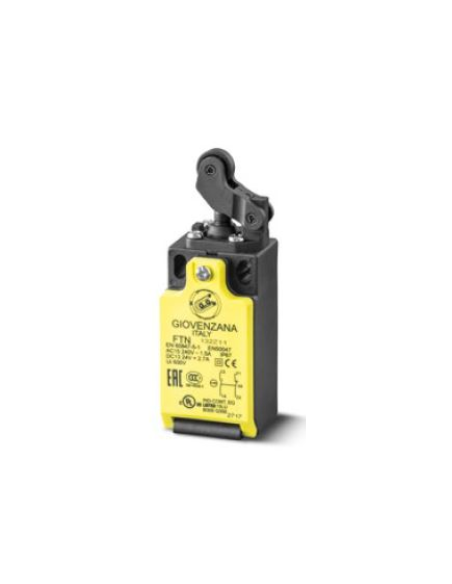

Roller Limit Switch series FTN - Giovenzana

€12.26 Tax included

€10.13 tax excl.

limit switch, lever position switch with wheel, horizontal actuat, FTN series, made of thermoplastic material, in accordance with EN 50047, suitable for safety applications, positive opening contacts.

2 contacts available (select from the side menu), with 2 types of action, slow or abrupt.

esquemas contactos para finales de carrera

Giovenzana
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Model
  • Slow break 1NC/1NO
  • Sudden rupture 1NC/1NO
  • Slow break 2NC

No queries yet, leave the first!
Privacy
Shipments
Returns


limit switch, FTN series, position switch with horizontal actuated wheel, FTN series of position switches, is made of thermoplastic material, according to en50047. Designed for industrial applications of automation, elevators and lifting, and general use. The installation is very simple, ensuring an extreme ease of assembly.

The FTN series can be installed in security applications, its contacts are designed according to the EN81.20 and EN81.50 standards.

For safety applications, always connect the safety circuit to the NC contact (normally closed positive aperture: 11-12/21-22/31-32), as provided for in EN ISO 14119 paragraph 5.4 and as indicated in EN81.20 paragraph 5.11.2.2.1.

High degree of protection, IP67, designed to be able to be used even in the most rigid environmental situations, these end-of-races have passed the IP67 immersion test, in accordance with the EN60529 standard.

Tipos de contactos para finales de carrera

final-carrera-FTN132-esquema

The housing of the limit switch is made of technopolymer reinforced with fiberglass, self-extinguishing or anti-shock, double insulation.

specifications:

  • Manufacturer: Giovenzana.
  • Series: FTN132.
  • Number of contacts: 2.
  • Contact with positive opening: NC contact.
  • Employment category: AC15/600.
  • Rated thermal current (Ith): 10A.
  • Nominal insulation voltage: 600Vac.
  • Minimum allowable current: 5mA to 5Vdc.
  • Insulation resistance: 100MΩ min. (DC500V).
  • Contact resistance: 25mΩ max. (Initial).
  • Drive travel for positive opening: Several.
  • Maximum switching frequency: 2 cycles/sec
  • Housing material: Polybutene terephthalate with UL approved glass fibers.
  • Actuator material: Miscellaneous.
  • Working temperature: -25ºC.. 80ºC.
  • Mechanical durability: 10,000,000 min cycles.
  • Electrical durability: 150,000 min cycles.
  • Cable input: M16.
  • Fixation: 2xM4.
  • Standards: EN60947-5-1, UL508, EN5004-7, EN1088
  • Degree of protection: IP-67.

Diagrama de montaje finales de carrera FTN

final-carrera-FTN132-medidas

final-carrera-FTN132
For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
