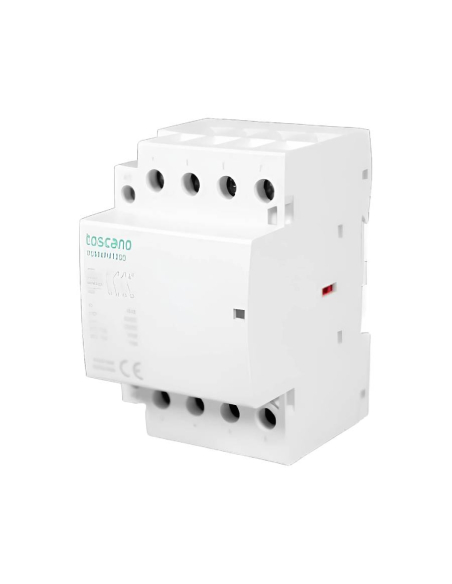

Modular four-pole contactor 40A 230Vac - Toscano
Modular four-pole contactor 40A 230Vac - Toscano

Modular four-pole contactor 40A 230Vac - Toscano

€61.07 Tax included

€50.47 tax excl.

Modular 4-pole normally open (NO) 40Acontactor, coil voltage 230Vac. Includes front visual activation indicator. Size 3 modules (54mm).


Part number: TMC4P40230




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Contactor modular 4-pole open, 40A, contactor coil voltage is 230Vac. When supply voltage is applied to the coil, the contactor closes, giving way. The main application of modular contactors is the control of loads in the domestic environment, allows the control of domestic systems, home automation, heating, lighting and air conditioning, can also be used in industrial applications and general use.

DIN rail mounting. 3 module size (54mm). Includes front visual activation indicator



Technical characteristics:

  • Manufacturer: Toscano
  • Part number: TMC4P40230
  • Code: 10003678
  • Supply voltage: 230Vac
  • Frequency: 50/60Hz
  • Rated current: 40A
  • Rated insulation voltage: 500Vac
  • Rated working voltage: 400Vac
  • Number of contacts: 4 NO
  • electrical life: 10000 cycles
  • Mechanical life: 1000000 cycles
  • Maximum number of operations/hour: 30
  • Maximum number of operations/day: 100
  • Operation indicator: Yes
  • Degree of protection: IP20
  • Ambient temperature: -5 to +60ºC
  • Connection: Upper and lower inlet indistinctly

Dimensions:

Material for professional use, install respecting the regulations in force at the place of installation.
